Clipsal

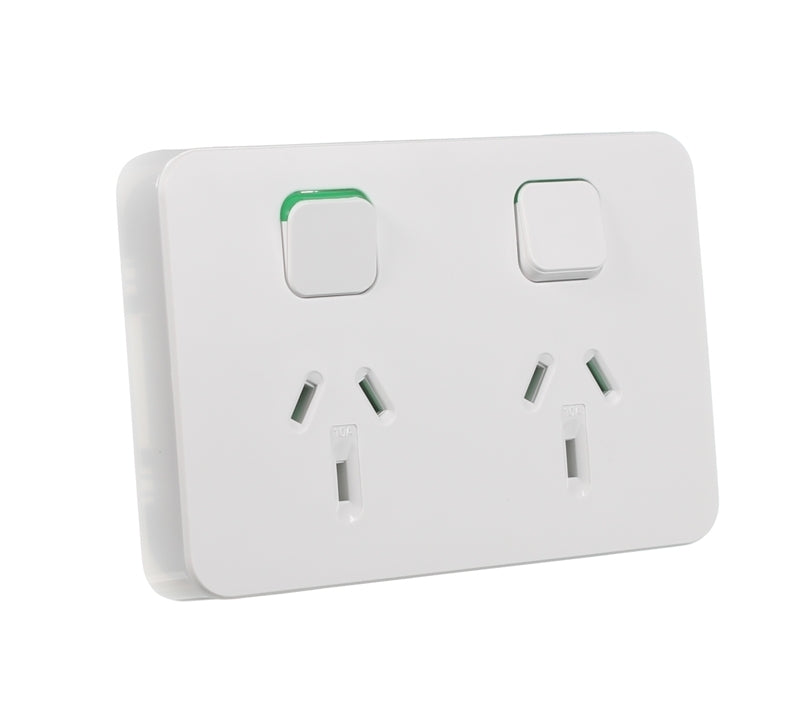

Clipsal Iconic Double Switch Power Point Horizontal Mount, 250V, 10A | Vivid White | 3025-VW

SKU 9311554785307

Barcode 9311554785307

$6.83

or 4 payments of $1.70 with afterpay

Currently Unavailable

✓

Quality Products Trusted electrical supplies

↻

30 Day Returns Shop with confidence

🔒

Secure Checkout Safe & protected payments

Product Details

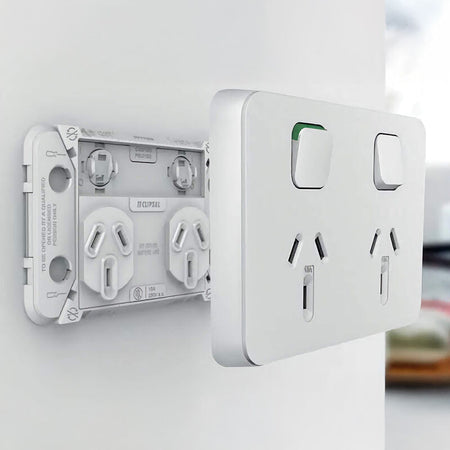

The Iconic Double Power Point has a Grid Plate with innovative protective flaps, which help prevent screw access after installation (by a qualified electrician); which means skins can be changed safely at any time.

Specifications

Design

Range	Clipsal Iconic
Product or component type	switched socket
Surface treatment	untreated

Physical

Device presentation	complete product
Socket number	2

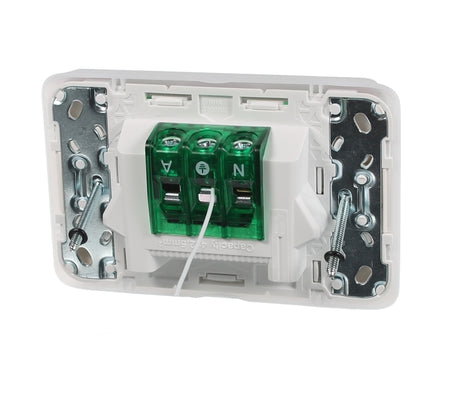

Connections - terminals	screw terminals
Installation direction	horizontal
Device mounting	flush
Number of rocker	2
Rated current	10 A
[ue] rated operational voltage	230/240 V
Fixing mode	by screws
Clamping connection capacity	1 x 2.5...4 x 2.5 mm² for rigid cable(s) 1 x 2.5...4 x 2.5 mm² for stranded cable(s) 1 x 2.5...4 x 2.5 mm² for flexible cable(s)
Wire stripping length	16 mm
Net weight	116 g
Ambient air temperature for operation	0...45 °C
Height	78 mm
Width	120 mm
Depth	27 mm
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1607004_V2-EN
Eu rohs directive	Compliant
Quantity per set	set of 10

Others

Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	10
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Legacy weee scope	In
	Outside of Europe
Main colour tint	vivid white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4 cm
Package 1 width	8 cm
Package 1 length	12 cm
Package 1 weight	121 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	150 cm
Package 2 width	106 cm
Package 2 length	330 cm
Package 2 weight	1.33 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	11 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.9641561585178815
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0346924288704055
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.024603853543032565
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	9.4106
Carbon footprint of the use phase [b2, b3, b4, b6]	9 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.28389897059915553
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	10.717951411530475
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

🚚
