Clipsal Large 2 Gang Vertical Mounting Bracket | Galvanised | 156/2
Estimate delivery in your cart before checkout. Shipping information
Product Details

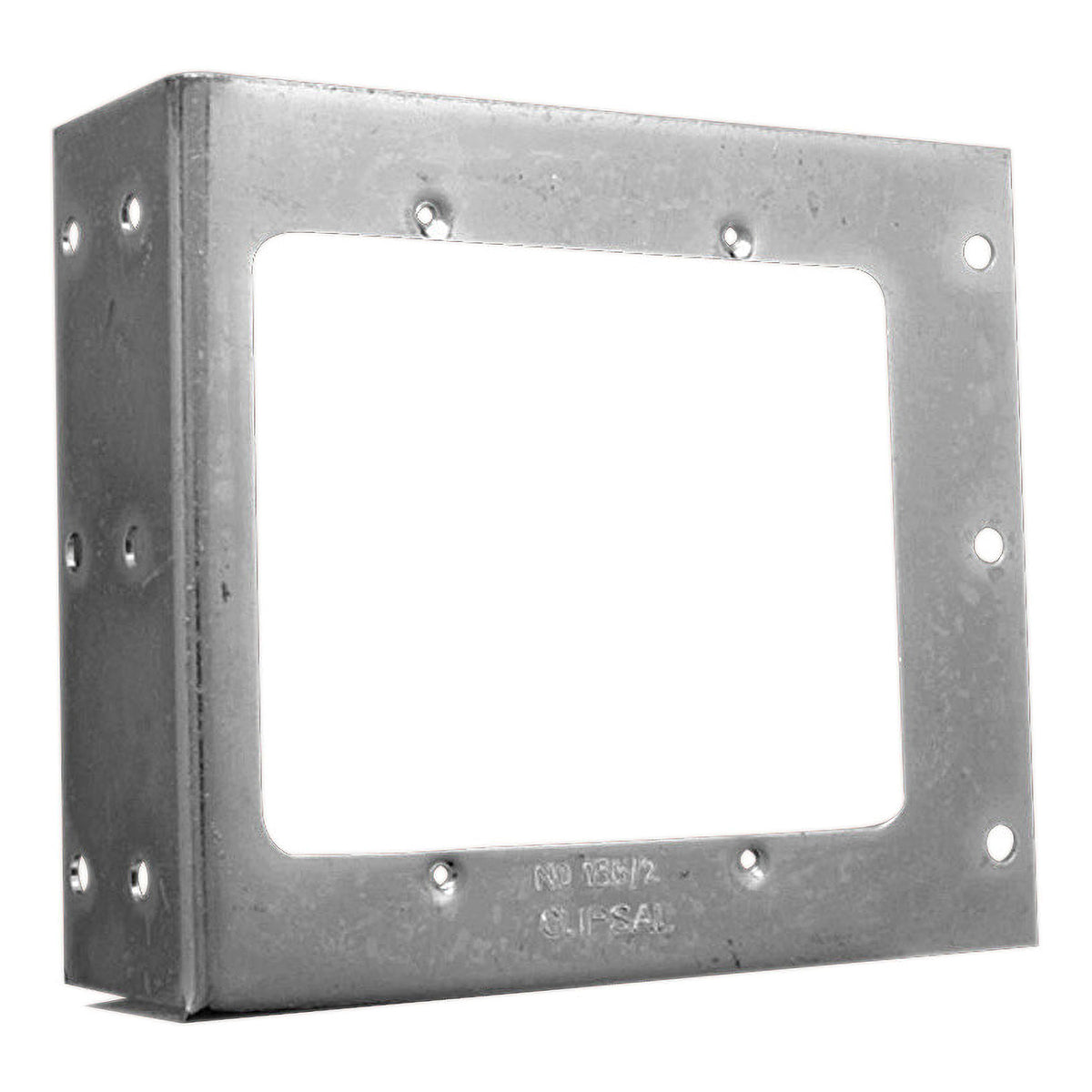

The Clipsal 156/2 is a large 2 gang metal mounting bracket for vertical installation of compatible electrical accessories. It fixes to the front or side of a timber stud, providing a mounting frame behind the wall surface.
Made from 1.2 mm electro-galvanised steel, the bracket has a 95 x 76 mm aperture and mounting centres of 84 x 46 mm. Check the accessory mounting pattern when selecting this large 2 gang bracket.
Features
- Large 2 gang format for vertical mounting.
- Suitable for fixing to the front or side of timber studs.
- 1.2 mm steel construction with an electro-galvanised finish.
- 95 x 76 mm opening for the electrical accessory.
Specifications
| Brand | Clipsal |
|---|---|
| Manufacturer part number | 156/2 |
| Product type | Metal mounting bracket |
| Finish | Galvanised |
| Format | 2 gang, large size |
| Orientation | Vertical |
| Material | 1.2 mm electro-galvanised steel |
| Mounting centres | 84 x 46 mm |
| Aperture | 95 x 76 mm |
| Packaged weight | 106 g |
| Barcode | 9311554036317 |
| Manufacturer warranty | 18 months |
Sold individually. Electrical switches and socket outlets are sold separately.
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
