Clipsal Standard Series IP56 Weatherproof Pneumatic Time Delay Switch | White Electric | 319HP-WE
Estimate delivery in your cart before checkout. Shipping information
Product Details

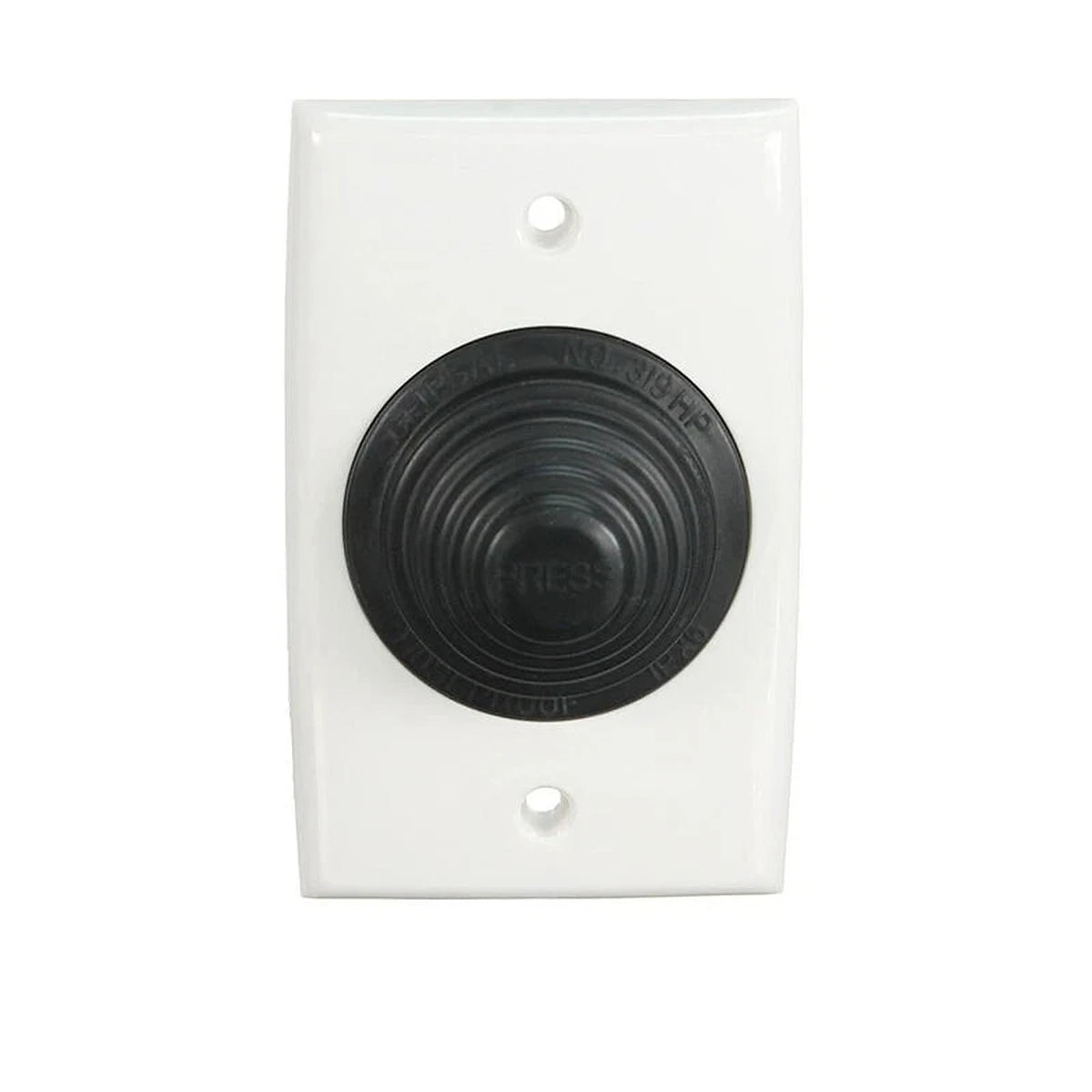

The Clipsal Standard Series weatherproof pneumatic time delay switch provides push-button lighting control with automatic switch-off after a preset period. Its White Electric wall plate and black pneumatic button suit areas where lights are only needed temporarily, such as hallways, stairways and common areas.
The IP56 rating provides weatherproof and hoseproof protection when correctly installed. Pressing the button starts the timed cycle, helping reduce the chance of lights being left on after use.
Features
- Pneumatic push-button operation with automatic timed switch-off.
- Adjustable delay from approximately 30 seconds; primarily designed for settings up to 10 minutes, with careful adjustment allowing up to 20 minutes.
- Rated current: 6AX.
- Operating voltage: 250V AC, 50Hz.
- IP56 ingress protection.
- Standard 84mm mounting centres.
- White Electric finish.
Product details
- Manufacturer part number: 319HP-WE.
- Barcode: 9311554058357.
- Pack quantity: 1 switch.
Pneumatic timing is approximate and can vary with temperature, humidity and atmospheric pressure. Installation must be carried out by an appropriately licensed electrician.
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
