Product Details

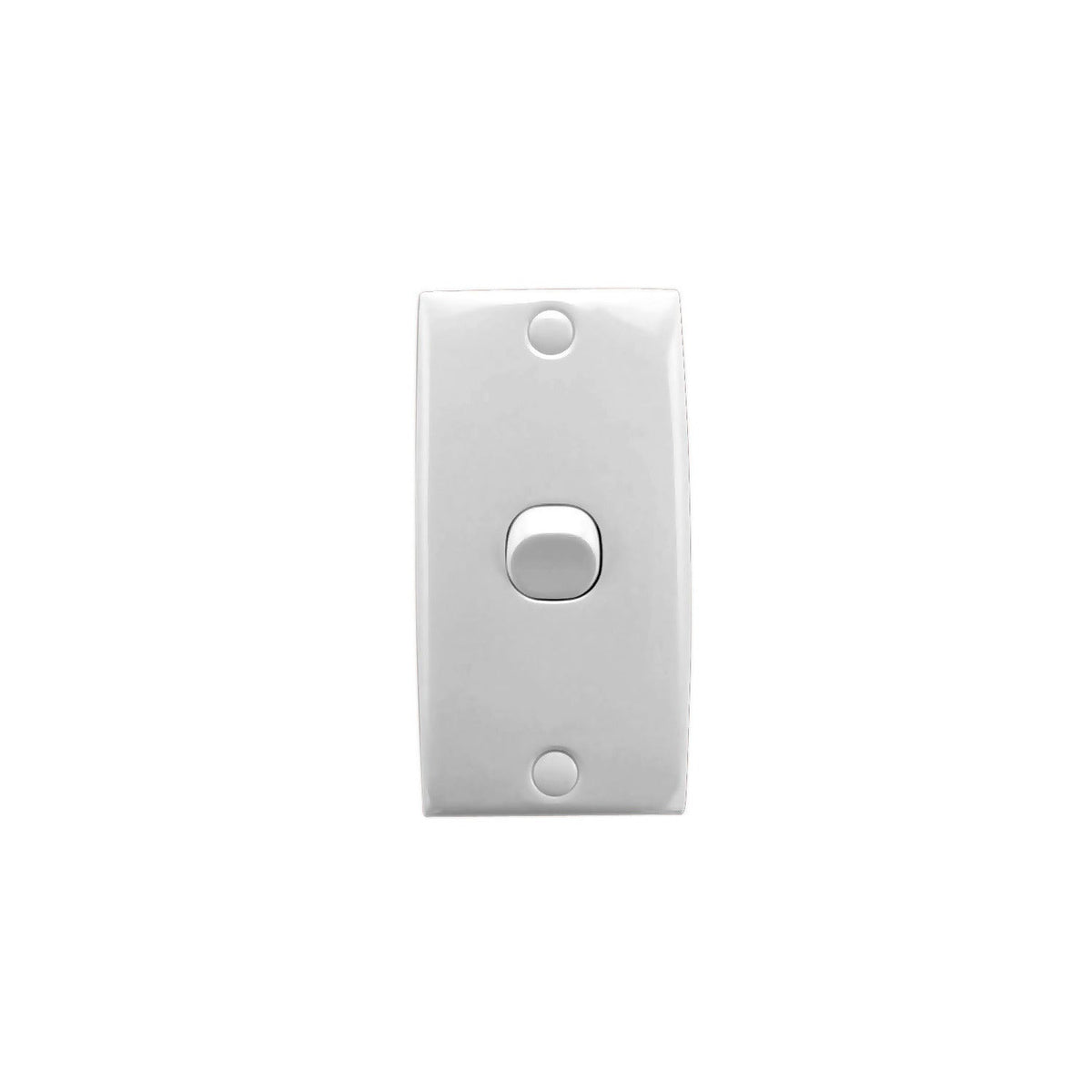

Clipsal Standard Series 1-Gang Architrave Switch
The Clipsal 31BLA-WE is a complete single-gang flush switch in White Electric. Designed for vertical architrave installation, it combines a rocker switch and full cover plate with 78mm mounting centres.
Rated at 10A and 250V AC, this Standard Series switch supports either one-way or two-way switching. The 95mm × 48mm plate provides an intermediate-size format for locations where a full-size wall plate may be unsuitable. Check the mounting centres and plate size when selecting a replacement for an existing switch.
Key Features
- Single rocker switch with a White Electric finish.
- 10A, 250V AC rating.
- Suitable for one-way or two-way switch arrangements.
- Vertical flush mounting with screw fixing.
- 78mm mounting centres and a 95mm × 48mm plate.
- Supplied as a switch assembly with a full cover plate.
Specifications
| Brand / range | Clipsal Standard Series |
|---|---|
| MPN | 31BLA-WE |
| Barcode / SKU | 9311554056575 |
| Colour | White Electric |
| Gangs / rockers | 1 |
| Rated current | 10A |
| Rated voltage | 250V AC |
| Switch function | 1-way / 2-way |
| Mounting | Vertical, flush, screw fixed |
| Mounting centres | 78mm |
| Plate dimensions | 95mm high × 48mm wide |
| Manufacturer's packaged weight | 44g per unit |
Included
1 × Clipsal 31BLA-WE switch assembly with full cover plate.
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
