Clipsal
Clipsal Easy56 20A 3 Pole IP66 Isolating Switch | Grey / Dark Grey | EY56SW320
$44.54
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details

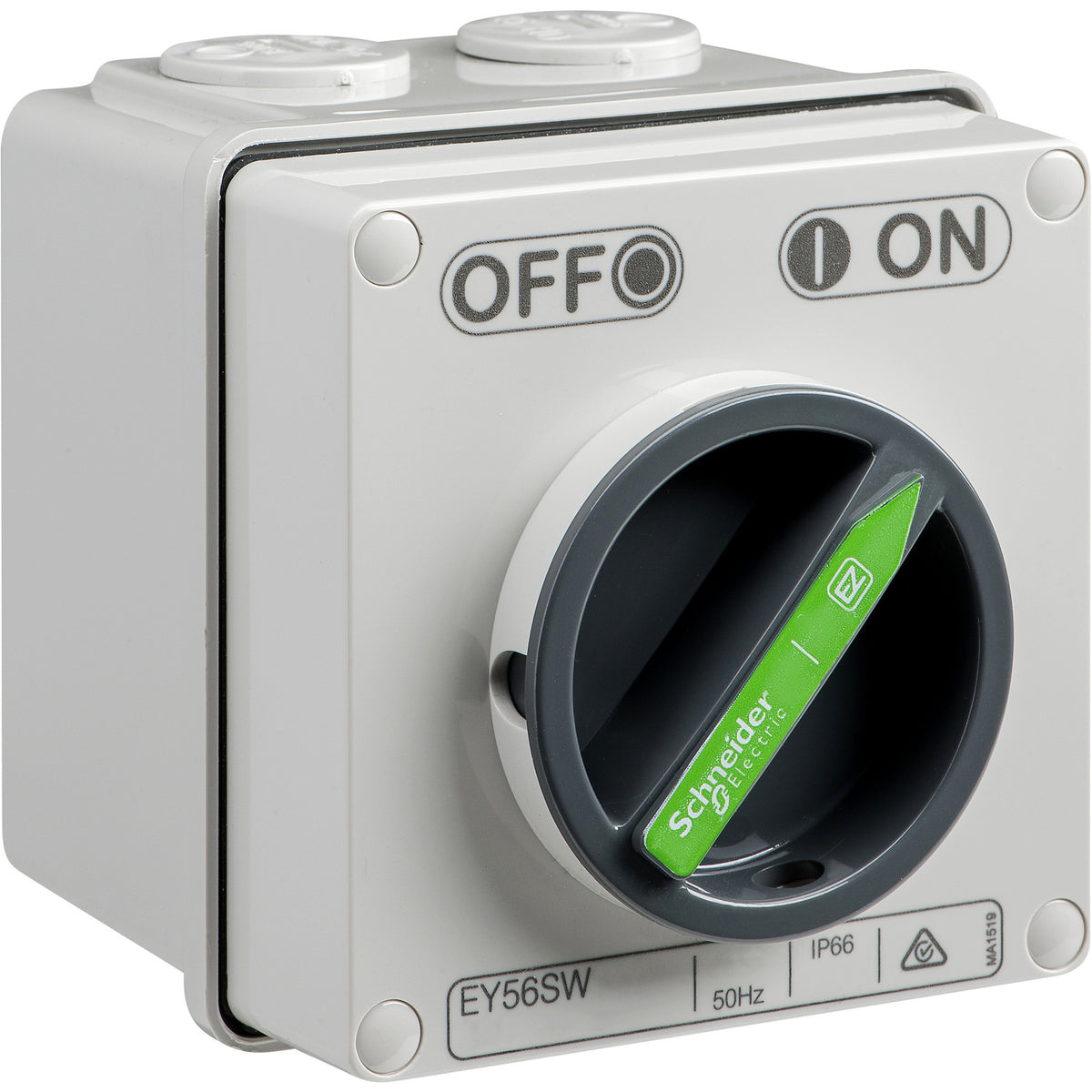

The Clipsal Easy56 EY56SW320 is a 20A, three-pole rotary isolating switch for commercial, industrial and utility applications. Its IP66 enclosure provides protection against dust and powerful water jets, with a grey body and dark grey operating handle.
Features
- Three-pole switching, suitable for electrical isolation.
- Rotary ON/OFF control with provision for two padlocks.
- Surface-mounted enclosure with IP66 protection.
- Screw terminals for 1-16 mm² rigid or stranded conductors.
Specifications
- Range: Easy56
- Manufacturer part number and model: EY56SW320
- Rated current: 20A at 500V AC, AC-21A and AC-23A.
- Rated voltage and frequency: 500V AC, 50Hz.
- Dimensions: 101mm high × 101mm wide × 101mm deep.
- Net weight: 471g.
- Operating temperature: -25°C to +75°C.
- Colour: grey body (RAL 7035), dark grey handle.
- Standards: AS/NZS 3133; IP66 to AS 60529.
- Country of origin: Vietnam.
- Manufacturer warranty: 18 months.
Included
One enclosed EY56SW320 isolating switch. Padlocks are not included.
