Clipsal Easy56 5 Pin 20A 500V IP66 Straight Industrial Plug | Orange/Clear | EY56P520
Estimate delivery in your cart before checkout. Shipping information
Product Details

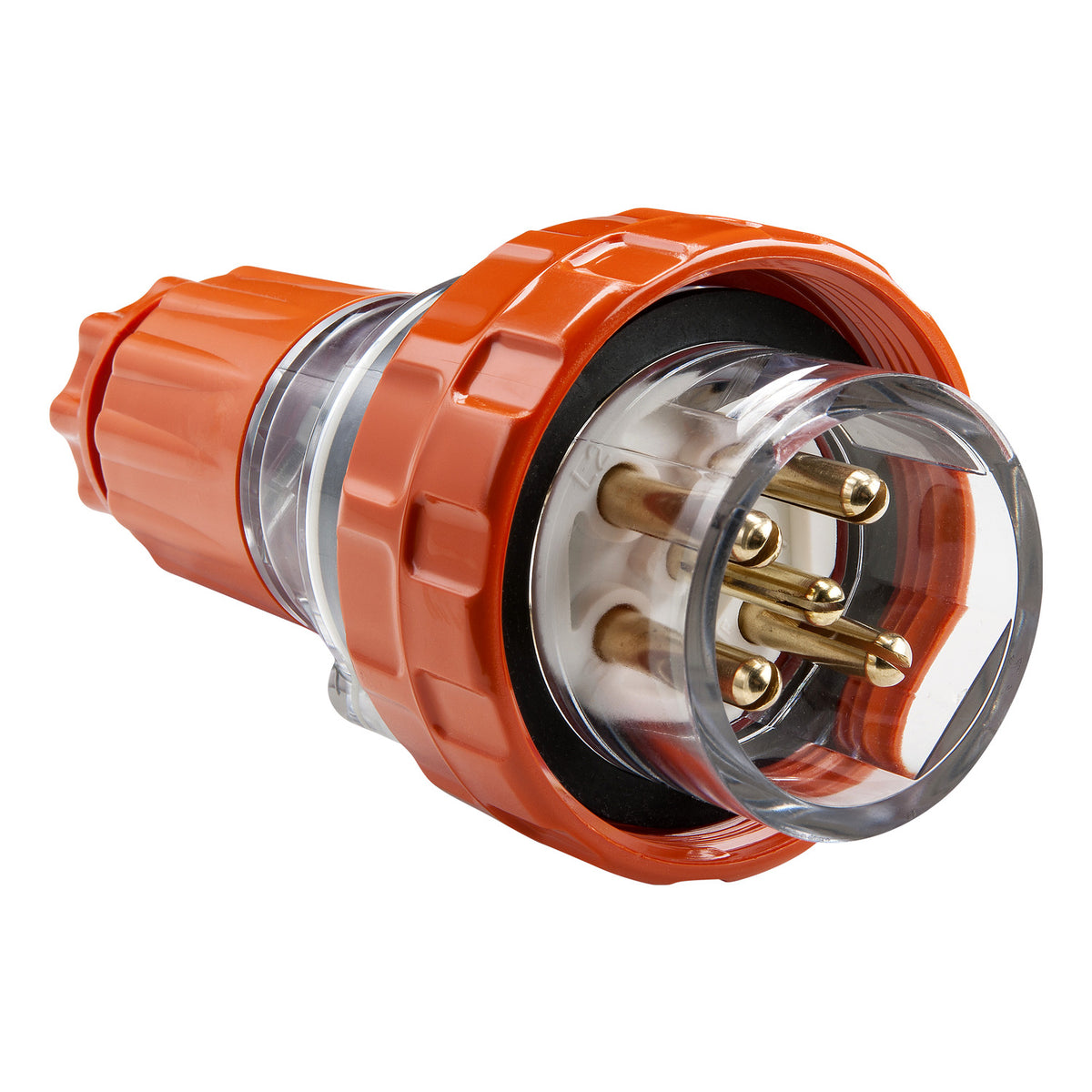

The Clipsal Easy56 straight industrial plug provides a five-pin connection for three-phase electrical equipment. Rated at 20A and 500V AC, it combines an orange plug assembly with a clear polycarbonate body for a practical industrial and commercial connection.
The transparent body allows visual inspection of the wiring connections. A screw-locking ring secures the plug to a compatible socket, while the cable gland accommodates cables with an outside diameter of 7–16mm. The IP66 rating applies when the plug is correctly assembled and connected to a suitable matching socket.
Features and specifications
- Five round tubular brass pins.
- Three-phase configuration: 3P + N + E.
- Rated current: 20A.
- Rated voltage: 500V AC, 50Hz.
- Straight body with screw terminals.
- Terminal cable capacity: 1–4mm².
- Polycarbonate housing in orange and clear.
- Dimensions: 78mm high × 78mm wide × 152mm deep.
- Conforms to AS/NZS 3123.
Product details
- Manufacturer part number: EY56P520.
- Barcode: 9311554782511.
- Pack quantity: 1 plug.
Installation and termination must be completed by a licensed electrician.
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
