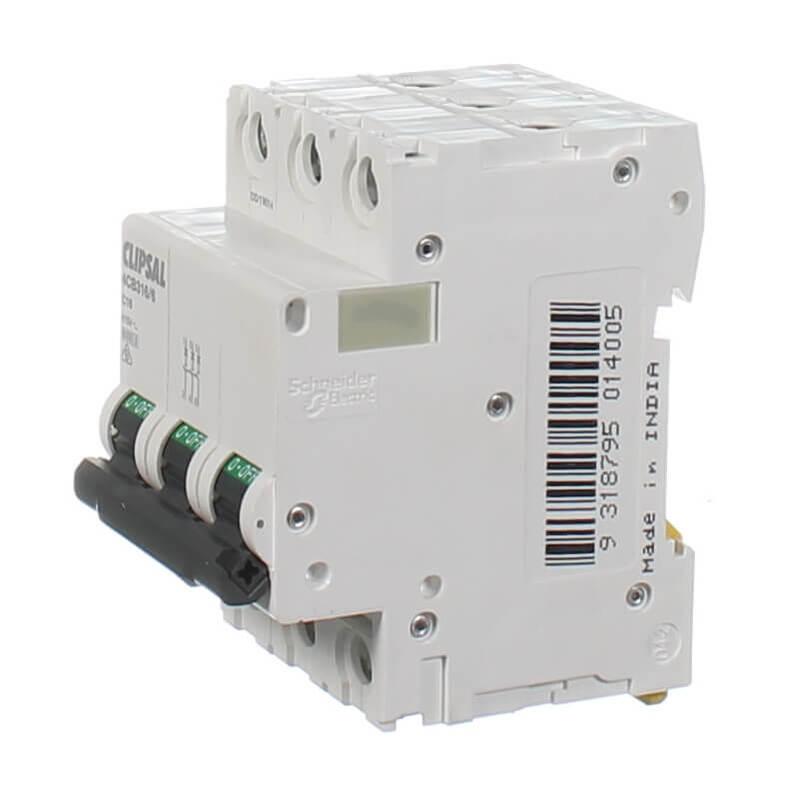

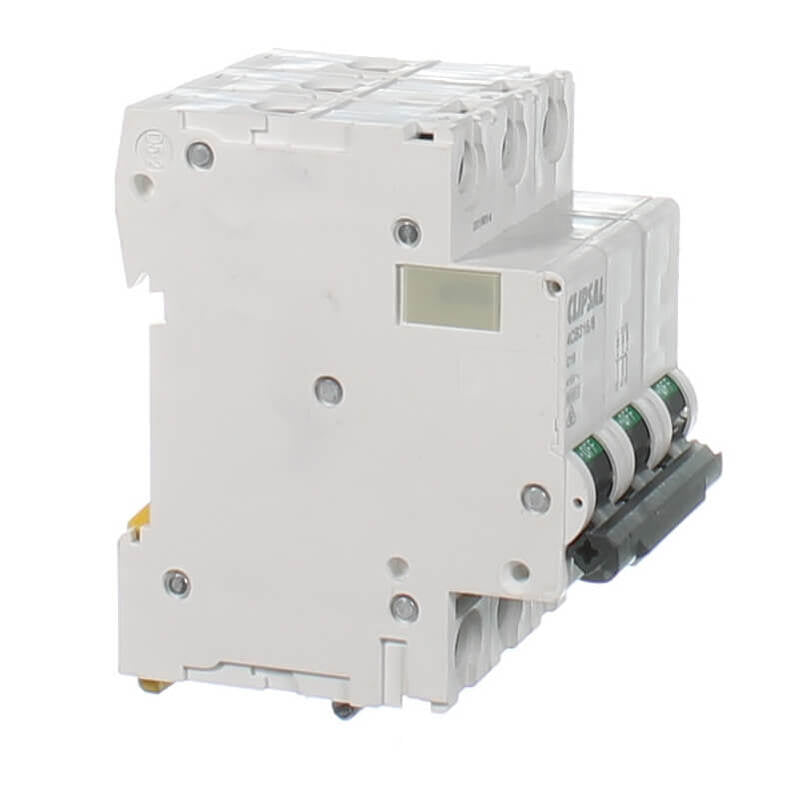

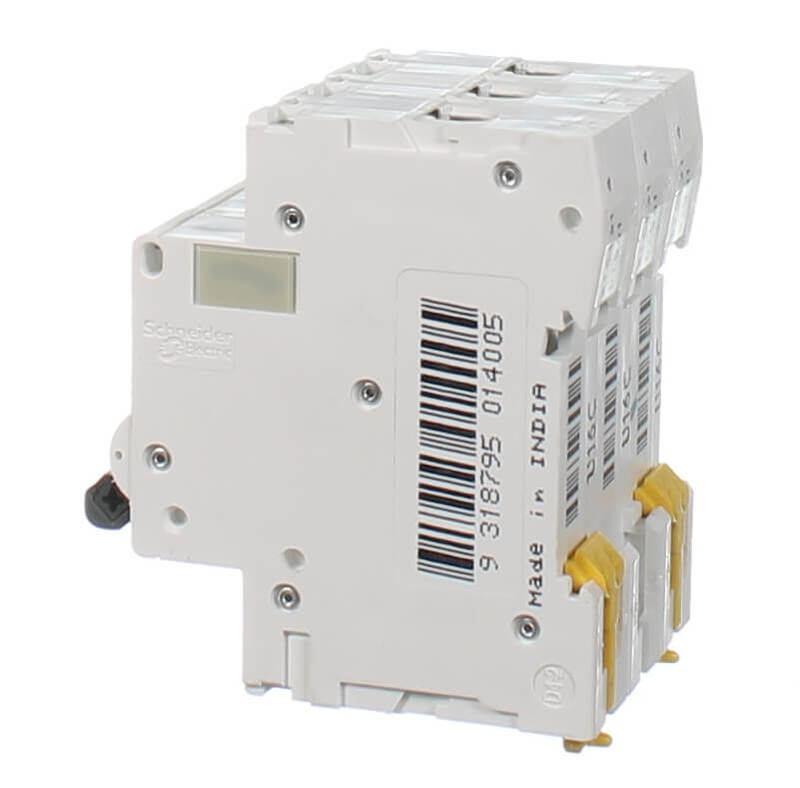

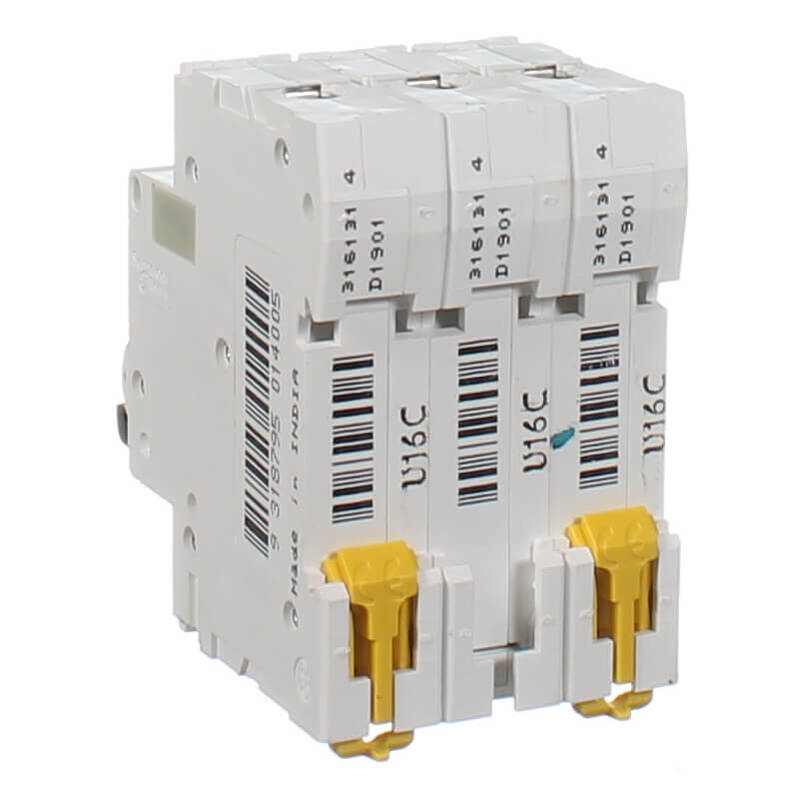

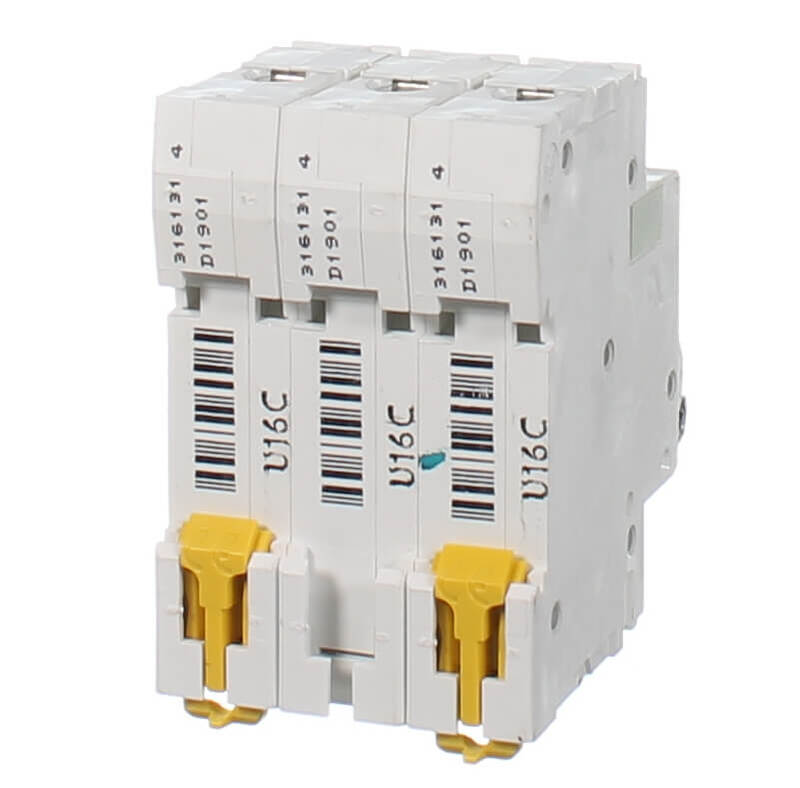

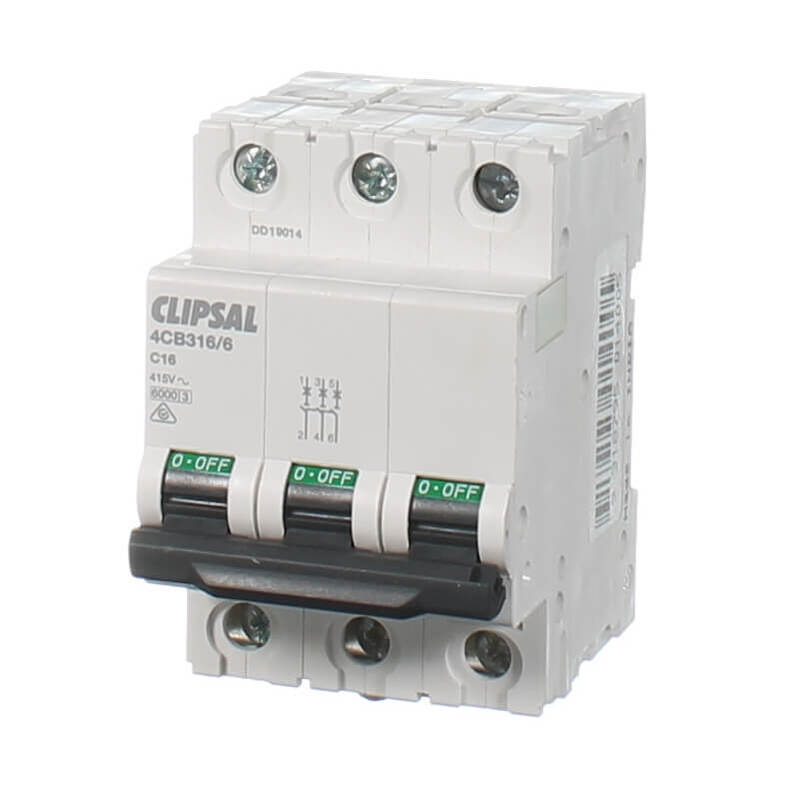

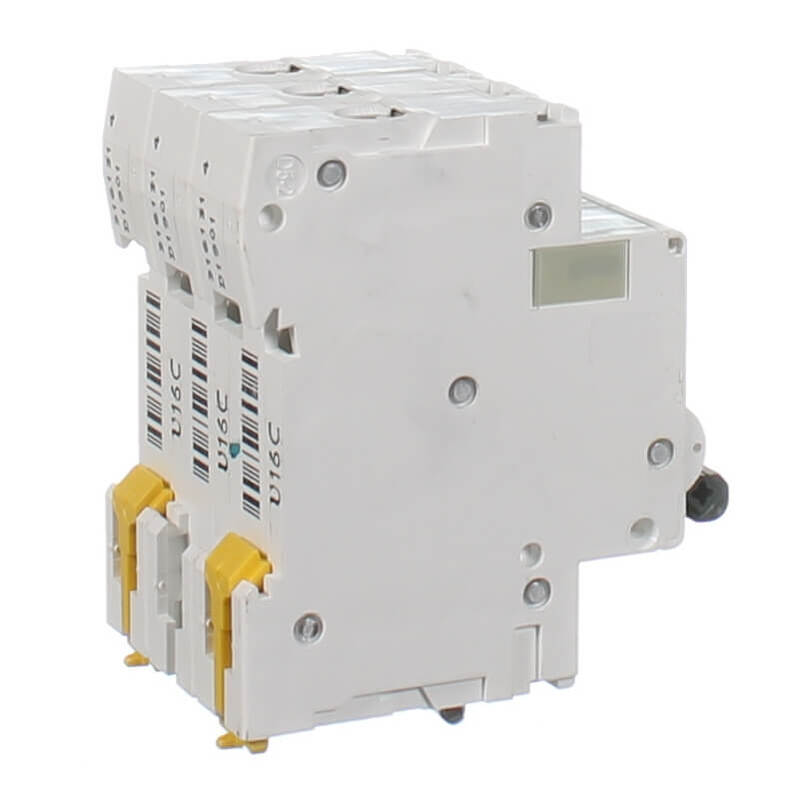

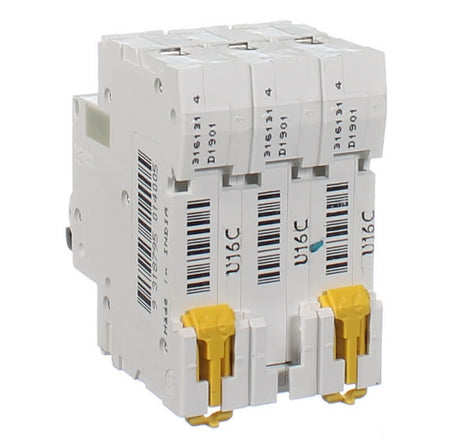

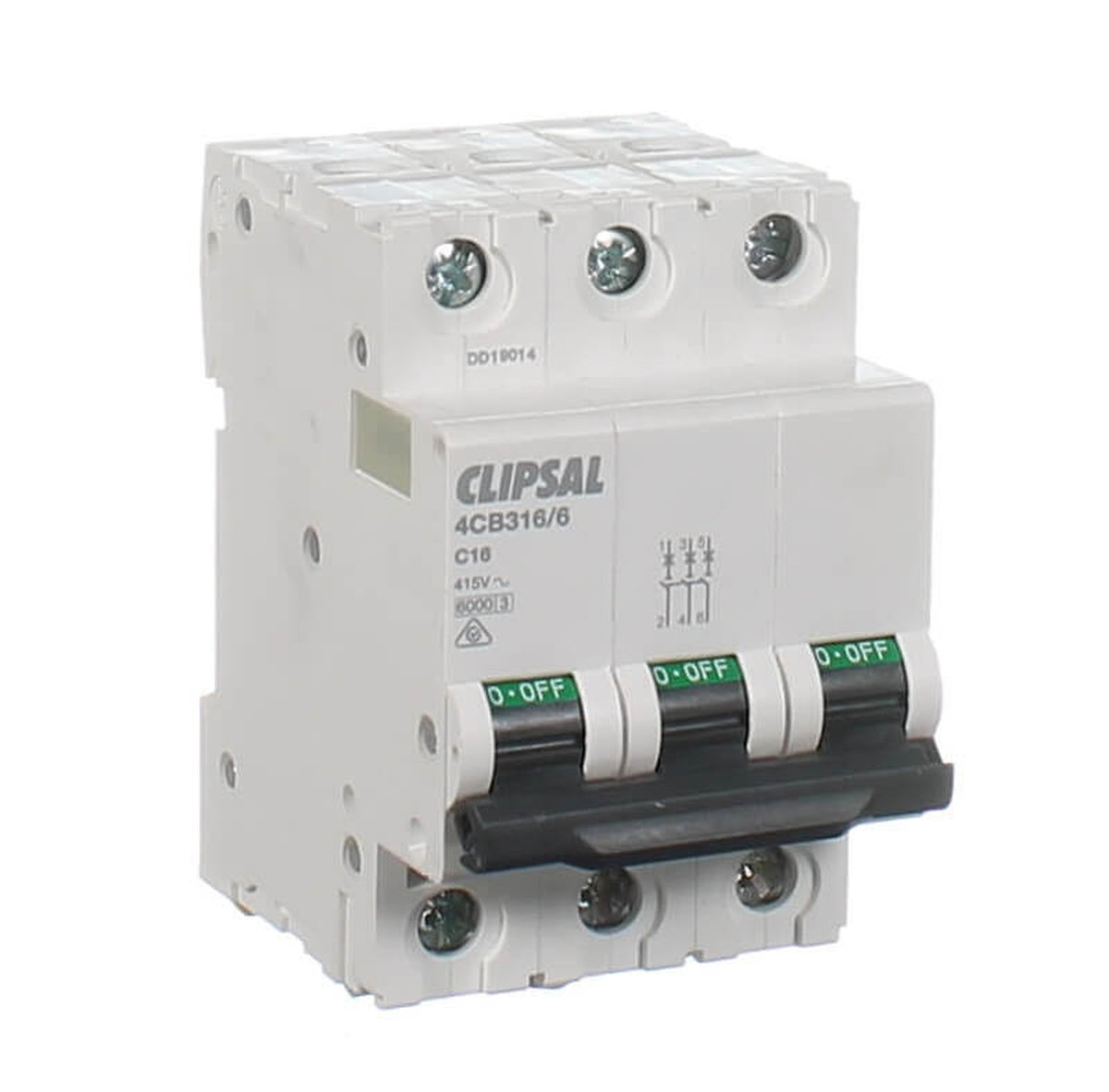

Clipsal Max 4 Miniature circuit breaker 3P 16 A C curve 6000 A 415 V | 4CB316/6

Clipsal Max 4 Miniature circuit breaker 3P 16 A C curve 6000 A 415 V | 4CB316/6

$59.95 AUD
$59.95 AUD
Sale Sold out
Taxes included.

Specifications

Design

Product brand Clipsal

Physical

Number of poles 3
[in] rated current 16 A
[ue] rated operational voltage 415 V
Mechanical durability 20000 cycles
Electrical durability 20000 cycles
Connections - terminals
  • screw terminal for 1 cable(s) 0.75-16 mm² rigid
  • screw terminal for 1 cable(s) 0.33-10 mm² flexible
  • screw terminal for 1 cable(s) 0.33-10 mm² flexible with ferrule
Wire stripping length 13 mm
Ip degree of protection
  • IP20 conforming to IEC 60529
  • IP40 (modular enclosure) conforming to IEC 60529
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -40...70 °C
Standards AS/NZS 60898
Relative humidity 95 % at 55 °C
Height 81 mm
Width 54 mm
Depth 78.5 mm
Net weight 310 g
Reach free of svhc Yes
Toxic heavy metal free Yes
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP1304004_V2
Eu rohs directive Compliant

Others

Legacy weee scope In
Average percentage of bio-based plastic content 0 %
Average percentage of recycled plastic content 0 %
Package 1 bare product quantity 1
Outside of Europe
Warranty duration(in months) bmecat 18
Weee label N/A
Curve code C
Number of modules 3
Breaking capacity 6 kA conforming to EN 60898
Network type AC
Network frequency 50/60 Hz
[ui] rated insulation voltage 440 V
Tightening torque 2 N.m
Tropicalisation 2 conforming to IEC 60068-1
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 7.4 cm
Package 1 width 5.3 cm
Package 1 length 8.5 cm
Package 1 weight 312 g
Sustainable packaging No
Energy efficiency optimized False
F-gas free N/A
Average percentage of recycled metal content 0 %
Warranty (in months) 18
