Clipsal MAX9 16A Slim RCBO 1P+N 30mA Type A C Curve 6kA | White | MX9R3116
Estimate delivery in your cart before checkout. Shipping information
Product Details

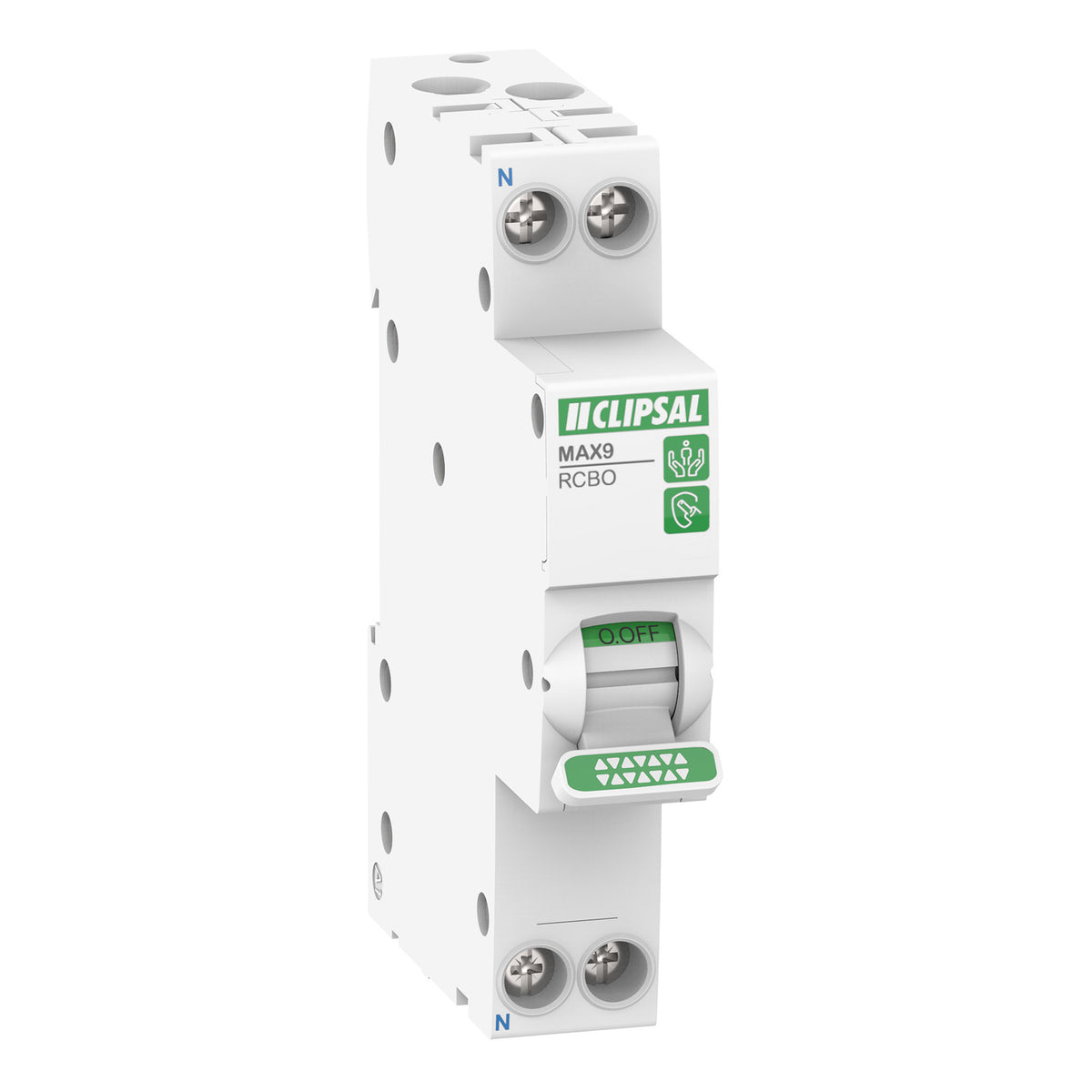

The Clipsal MAX9 MX9R3116 combines residual-current and overcurrent protection in a compact 18 mm module. Its 1P+N design provides one protected pole with switched neutral, making efficient use of space in compatible switchboards.
Type A protection detects AC and pulsating DC residual currents. The unit supports top or bottom line connection and compatible MAXBAR busbars.
Specifications
- Manufacturer part number: MX9R3116
- Rated current: 16 A at 30°C
- Operating voltage: 240 V AC, 50/60 Hz
- Poles: 1P+N; one protected pole
- Trip characteristic: C curve
- Earth-leakage protection: Type A, 30 mA, instantaneous
- Short-circuit breaking capacity: 6 kA at 240 V AC
- Mounting: DIN rail; single module, 18 mm wide
- Dimensions: 93 mm high × 18 mm wide × 73 mm deep
- Colour: White
- Ingress protection: IP20
- Operating temperature: −25°C to +70°C, subject to current derating
- Standards: AS/NZS 61009.1, IEC 61009-2-2 and EN/IEC 61009-1
- Net weight: 136 g; packaged weight: 140 g
- Manufacturer warranty: 7 years
Supplied as one RCBO. Installation by a licensed electrician.
