Clipsal

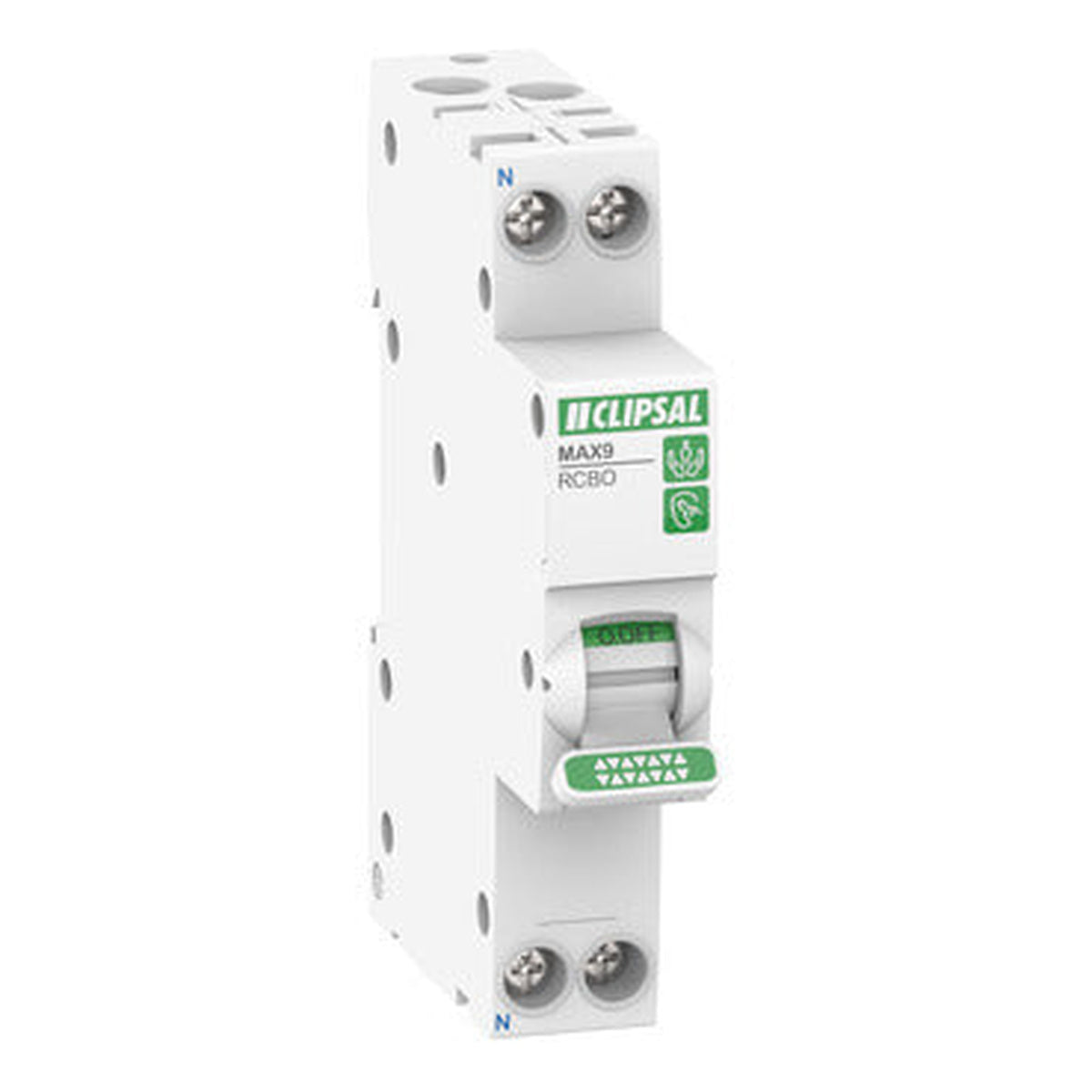

Clipsal MAX9 25A Slim RCBO 1P+N 30mA Type A C Curve 6kA | White | MX9R3125
$38.26
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details
The Clipsal MAX9 slim RCBO combines residual current and overcurrent protection in one compact DIN rail device. Its 18mm width saves switchboard space, with a 25A C-curve rating and Type A earth-leakage protection.
Features
- 1P+N configuration with one protected pole.
- 30mA Type A earth-leakage sensitivity with instantaneous operation.
- 6kA rated short-circuit breaking capacity at 240V AC.
- Compatible with the Clipsal MAXBAR system.
- Line connection from the top or bottom for installation flexibility.
- White housing, RAL 9003.
Specifications
- Manufacturer part number and model: MX9R3125
- Rated current: 25A at 30°C
- Operating voltage and frequency: 240V AC, 50/60Hz
- Tripping curve: C
- Protection rating: IP20
- Dimensions: 18mm wide × 93mm high × 73mm deep
- Net weight: 136g
- Standards: AS/NZS 61009.1, IEC 61009-2-2 and EN/IEC 61009-1
- Manufacturer warranty: 7 years
- Country of origin: China
- Barcode: 9311554812737
Sold individually. Requires installation by a licensed electrician.
