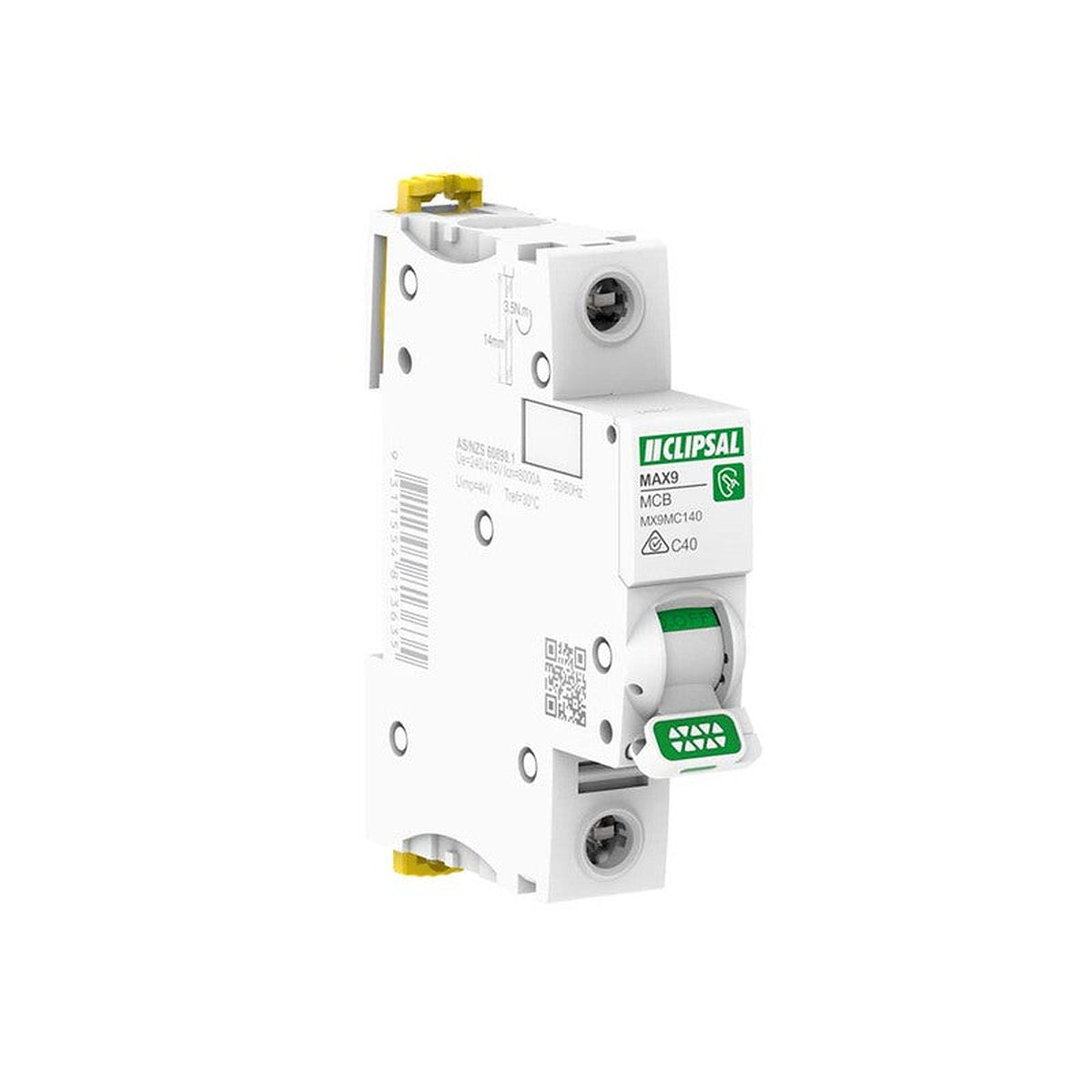

Clipsal MAX9 40A Single Pole C-Curve 6kA Circuit Breaker | White | MX9MC140

The Clipsal MAX9 MX9MC140 is a 40A single pole miniature circuit breaker for protection against overloads and short circuits. Its C-curve tripping characteristic and compact 18mm width suit modular electrical distribution installations.

Features

• Thermal-magnetic protection with one protected pole.
• 6kA rated short-circuit breaking capacity at 240V AC.
• DIN rail mounting with top or bottom line connection.
• Contact position indication and white RAL 9003 finish.

Specifications

• Manufacturer part number: MX9MC140
• Barcode: 9311554813635
• Rated current: 40A at 30°C
• Rated operational voltage: 240V AC, 50/60Hz
• Tripping curve: C; magnetic trip threshold 5–10 times rated current
• Rated insulation voltage: 500V
• Rated impulse withstand voltage: 4kV
• Dimensions: 18mm wide × 85mm high × 75mm deep
• Protection rating: IP20
• Tunnel terminals: 1–25mm² flexible or 1–35mm² rigid cable
• Terminal tightening torque: 3.5Nm
• Mechanical endurance: 20,000 cycles
• Electrical endurance: 10,000 cycles at 240V
• Standard: AS/NZS 60898
• Manufacturer warranty: 7 years

Supplied as one circuit breaker.
