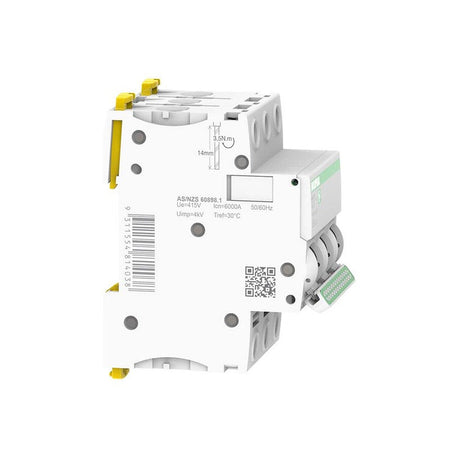

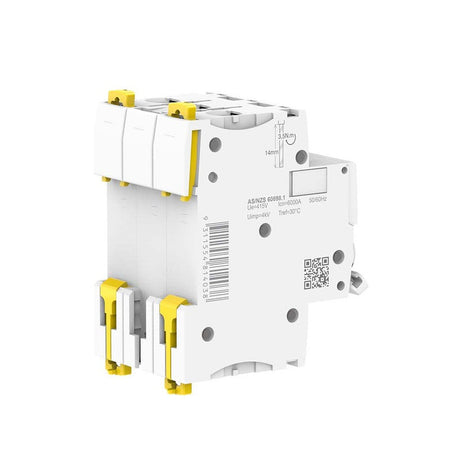

Clipsal MAX9 63A 3 Pole Circuit Breaker C Curve 6kA 415V | White | MX9MC363
Estimate delivery in your cart before checkout. Shipping information
Product Details
The Clipsal MAX9 MX9MC363 is a three-pole miniature circuit breaker for overload and short-circuit protection in 415V AC distribution circuits. It has a 63A current rating, C-curve tripping characteristic and 6kA breaking capacity, with protection across all three poles.

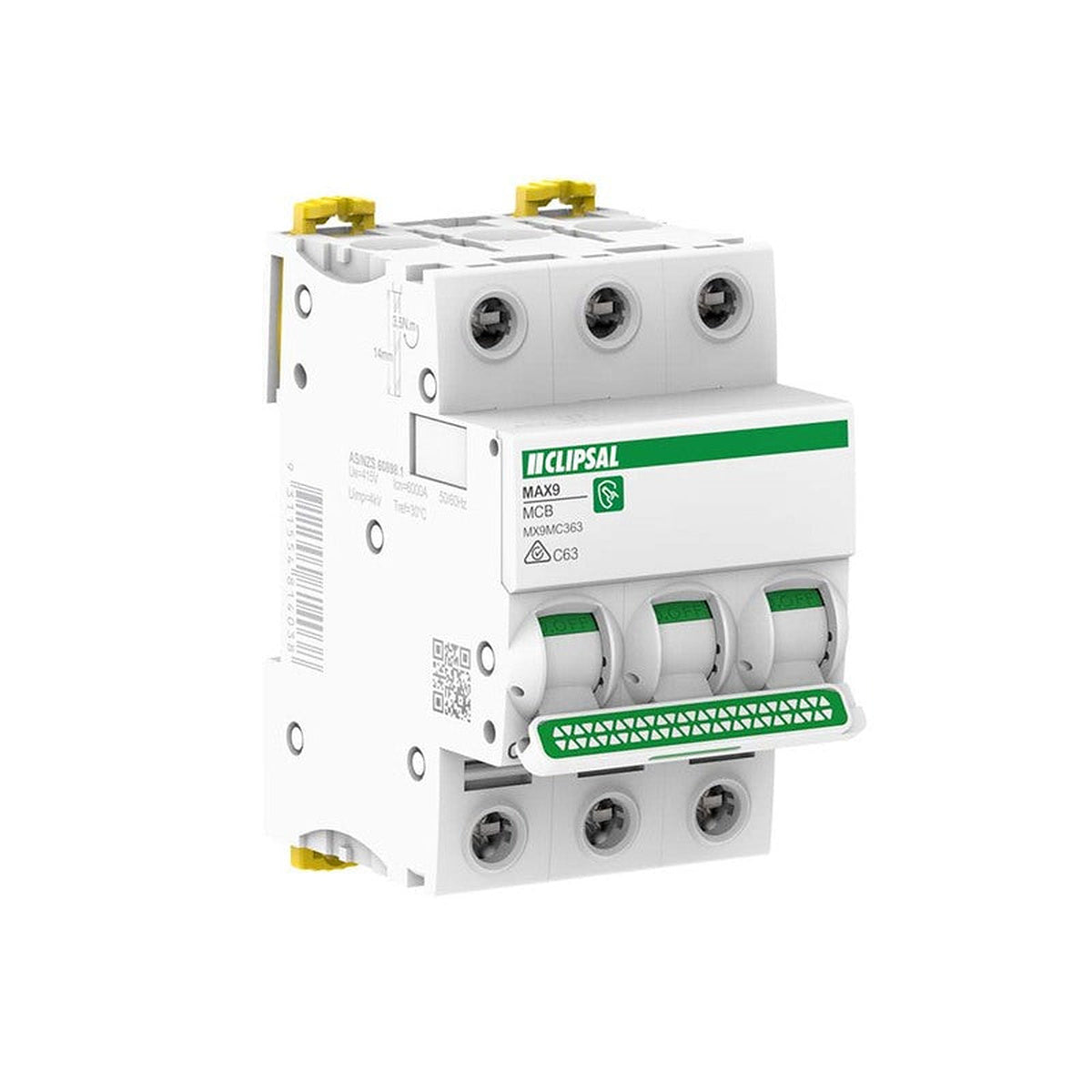

The white housing mounts on a DIN rail and includes a linked toggle with ON/OFF indication. Top or bottom cable connections and compatibility with 18mm pitch pin busbars provide flexibility when fitting a switchboard.
- Rated current: 63A at 30°C
- Poles: 3, with all three poles protected
- Rated voltage: 415V AC, 50/60Hz
- Trip curve: C
- Breaking capacity: 6kA to AS/NZS 60898
- Protection rating: IP20
- Dimensions: 85mm high × 54mm wide × 75mm deep
- Net weight: 375g
- Manufacturer warranty: 7 years
Supplied as one circuit breaker.
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
