Product Details

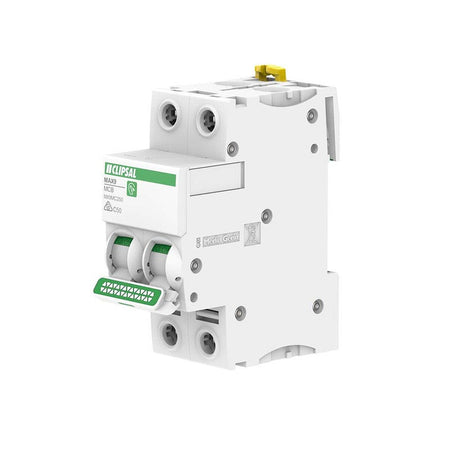

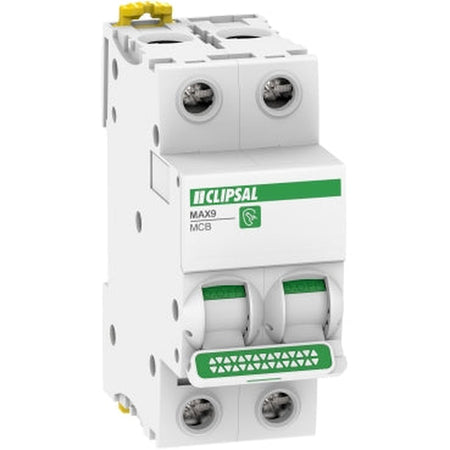

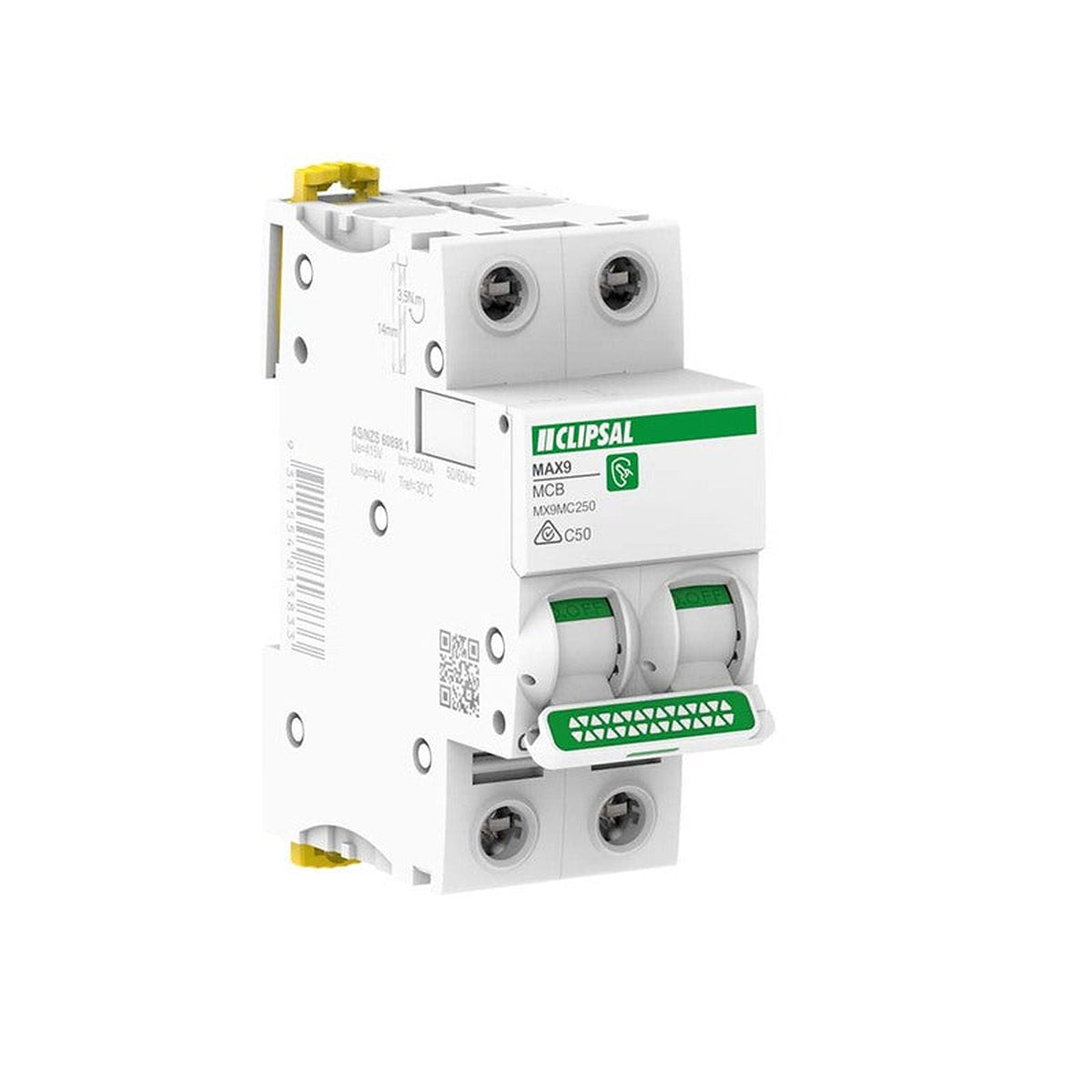

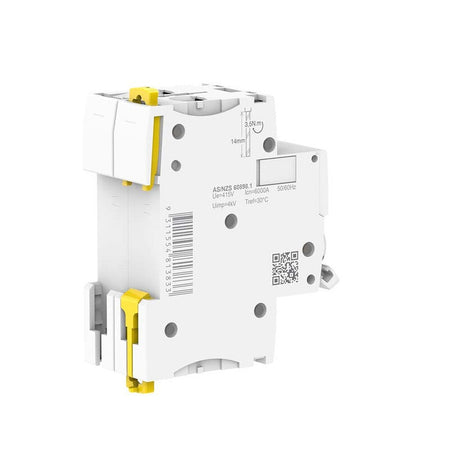

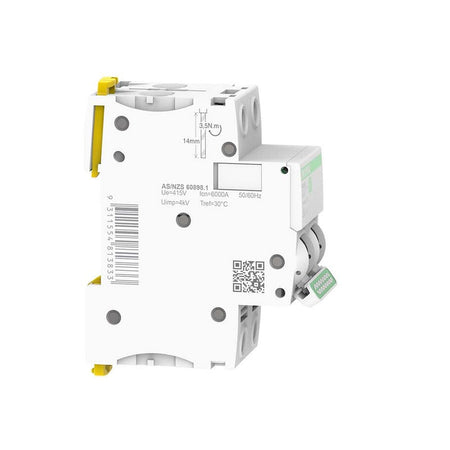

Clipsal MAX9 2 Pole 50A Miniature Circuit Breaker
The Clipsal MX9MC250 protects electrical distribution circuits against overloads and short circuits. This two-pole MAX9 breaker combines a 50A rating with a C-curve trip characteristic and a compact 36 mm DIN rail format.
Features
- Two protected poles with 6kA short-circuit breaking capacity at 415V AC.
- Toggle operation with ON/OFF and contact-position indication.
- Top or bottom terminal connection for installation flexibility.
- Trip-free mechanism and provision for padlocking.
- White housing with a modular design for distribution boards.
Specifications
| Brand / range | Clipsal MAX9 |
|---|---|
| MPN | MX9MC250 |
| Barcode | 9311554813833 |
| Colour | White |
| Rated current | 50A at 30°C |
| Poles / trip curve | 2P / C curve |
| Rated voltage | 415V AC, 50/60Hz |
| Breaking capacity | 6kA |
| Dimensions (H × W × D) | 85 × 36 × 75 mm |
| Net weight | 250 g |
| Pack quantity | 1 circuit breaker |
Installation must be carried out by a licensed electrician.
