Clipsal
Clipsal MAX9 Miniature Circuit-Breaker (MCB) 1P, 10A, C Curve, 6000A, 240/415V, Distribution | White (RAL 9003) | MX9MC110
$4.93
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details

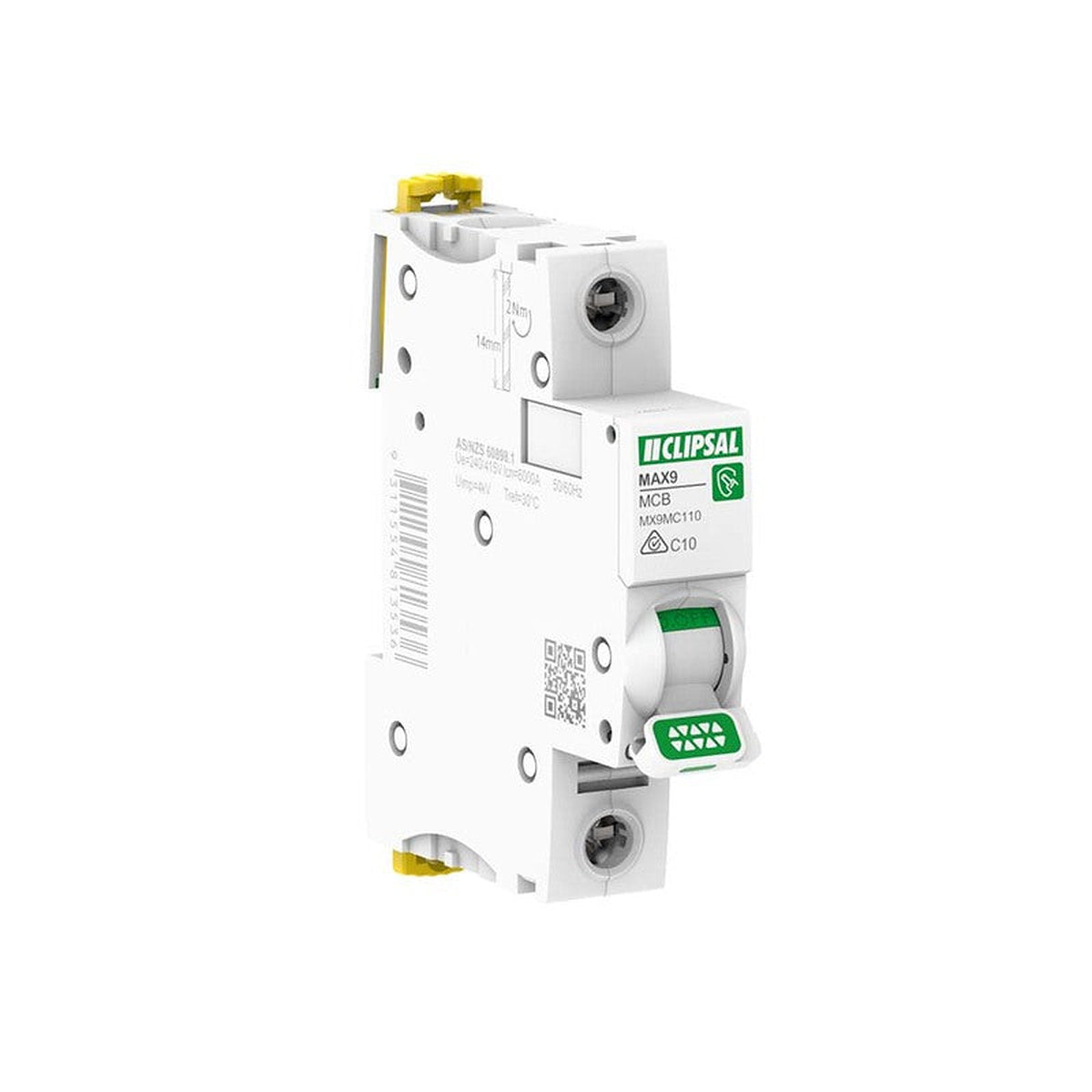

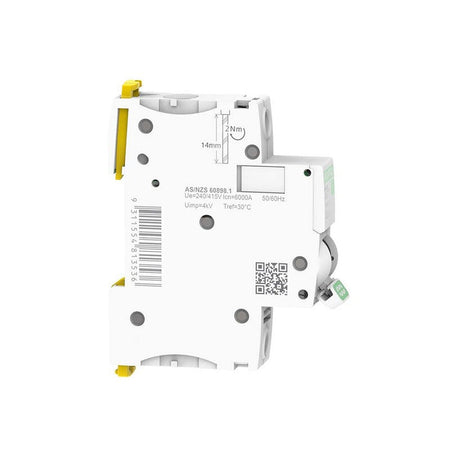

Clipsal MAX9 MX9MC110 10A Single-Pole Circuit Breaker
The Clipsal MAX9 MX9MC110 is a single-pole miniature circuit breaker designed to protect residential electrical circuits against overloads and short circuits. It combines a 10A current rating, C-curve tripping characteristic and 6kA breaking capacity in a compact 18mm-wide DIN rail design.
Key Features
- Overload and short-circuit protection: protects the circuit against excessive current.
- Compact installation: 18mm width for modular DIN rail mounting.
- Flexible wiring: supports line or load cable connections at the top or bottom.
- Free-tripping mechanism: allows the breaker to trip even when the toggle is held in the ON position.
- White finish: coordinates with the Clipsal MAX9 range.
Specifications
| Brand | Clipsal by Schneider Electric |
|---|---|
| Range | MAX9 |
| Model | MX9MC110 |
| Product type | Miniature circuit breaker (MCB) |
| Poles | 1P — 1 protected pole |
| Rated current | 10A |
| Tripping curve | C |
| Short-circuit breaking capacity | 6kA (6000A) |
| Operational voltage | 240/415V AC |
| Frequency | 50/60Hz |
| Mounting | DIN rail |
| Dimensions (W × H × D) | 18 × 85 × 75mm |
| Colour | White (RAL 9003) |
| Barcode | 9311554813536 |
Fast Australia-Wide Delivery
Reliable shipping direct to your door.
Need Help?
Contact the Sparky Stock team
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
