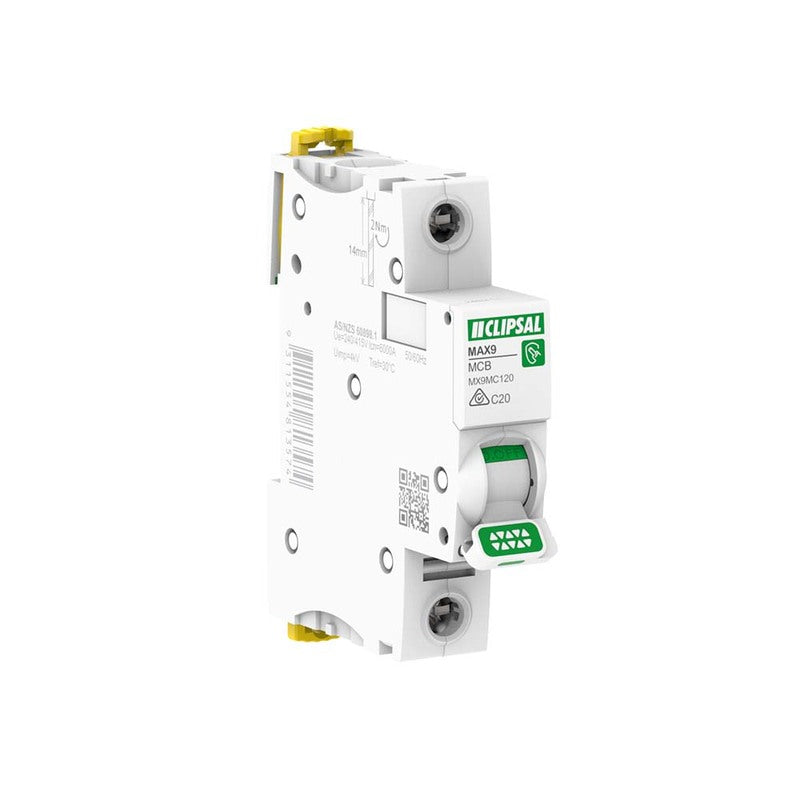

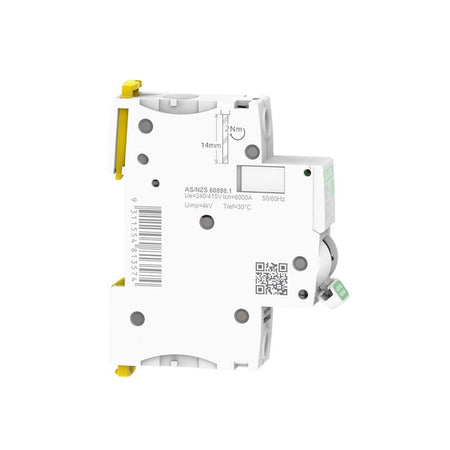

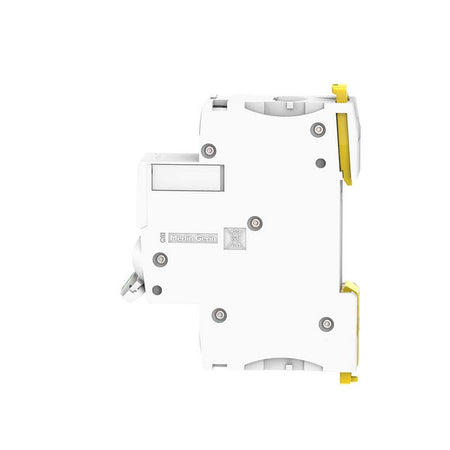

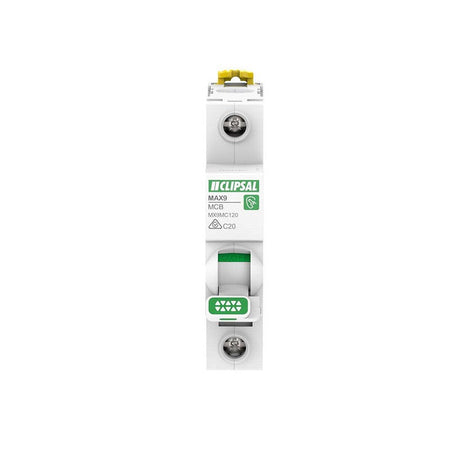

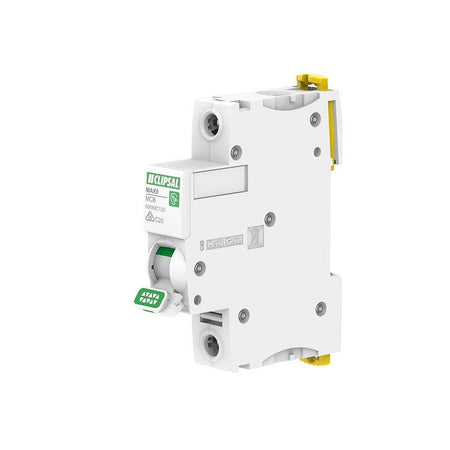

Clipsal MAX9 Miniature Circuit-Breaker (MCB) 1P, 20A, C Curve, 6000A, 240/415V, Distribution | MX9MC120
$5.15
✓
In Stock
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details
Ultimate Efficiency and Professional Finish
- MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
- With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal RCBOs and AFDDs
Specifications
Design
| Range | MAX9 |
|---|---|
| Product or component type | miniature circuit-breaker |
| Device application | distribution |
| Warranty | 7-year |
Physical
| [in] rated current | 20 A at 30 °C |
|---|---|
| [ue] rated operational voltage | 240 V AC 50/60 Hz |
| Control type | toggle |
| Local signalling | ON/OFF indication |
| Height | 85 mm |
| Width | 18 mm |
| Embedding depth | 44 mm |
| Depth | 75 mm |
| Net weight | 125 g |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles 240 V |
| Connections - terminals |
|
| Wire stripping length | 14 mm for top or bottom connection |
| Ip degree of protection | IP20 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...85 °C |
| Reach free of svhc | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2205015EN |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
