Clipsal MAX9 Miniature Circuit-Breaker (MCB) 1P, 63A, C Curve, 6000A, 240/415V, Incomer, RED Toggle | White | MX9MC163R
$6.99
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details

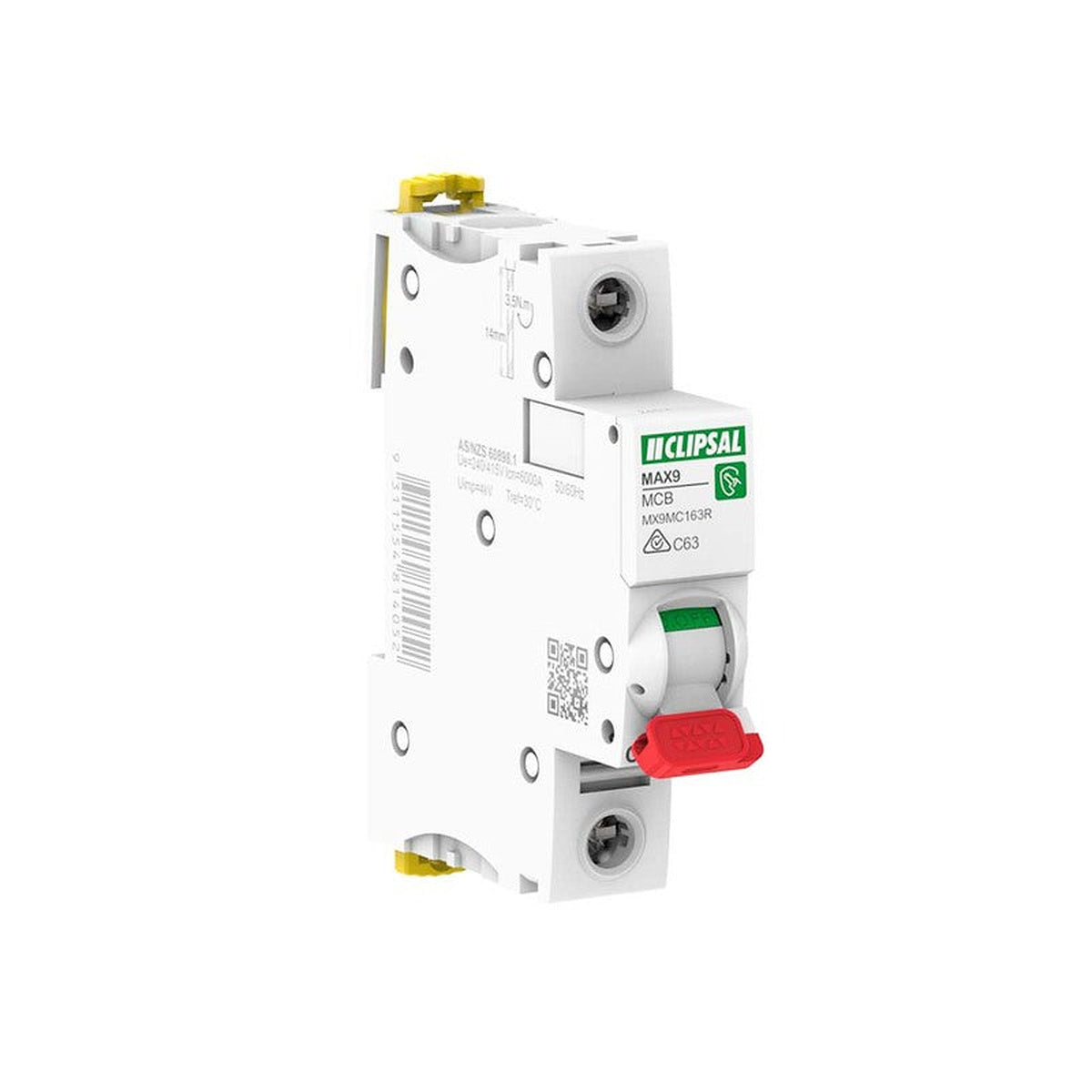

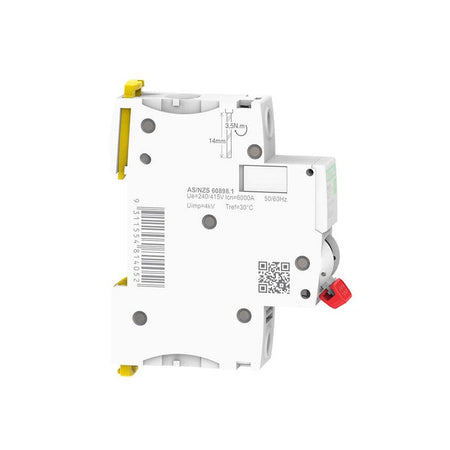

Clipsal MAX9 Miniature Circuit-Breaker (MCB) 1P, 63A, C Curve, 6000A, 240/415V, Incomer, RED Toggle
The Clipsal MX9MC163R miniature circuit breaker protects electrical circuits against overloads and short circuits. It combines a 63A rating with C-curve tripping for the circuit-protection application.
Key Features
- Protection against overloads and short circuits.
- C-curve tripping characteristic.
- Red toggle identifies the incomer variant.
- Rated current: 63 A at 30 °C.
- IP rating: IP20.
Specifications
| Brand | Clipsal |
|---|---|
| Model | MX9MC163R |
| Range | MAX9 |
| Rated current | 63 A at 30 °C |
| Operational voltage | 240 V AC 50/60 Hz |
| Control type | toggle |
| Height | 85 mm |
| Width | 18 mm |
| Embedding depth | 44 mm |
| Depth | 75 mm |
| Terminals | tunnel type terminals (top or bottom) 1-25 mm² flexible tunnel type terminals (top or bottom) 1-35 mm² rigid |
| IP rating | IP20 |
| Poles | 1P |
| Number of protected poles | 1 |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Tripping curve | C |
| Breaking capacity | 6000 A Icn at 240 V AC 50/60 Hz conforming to AS/NZS 60898 |
| Insulation voltage | 500 V |
| 9mm pitches | 2 |
| SKU | 9311554814052 |
