Clipsal

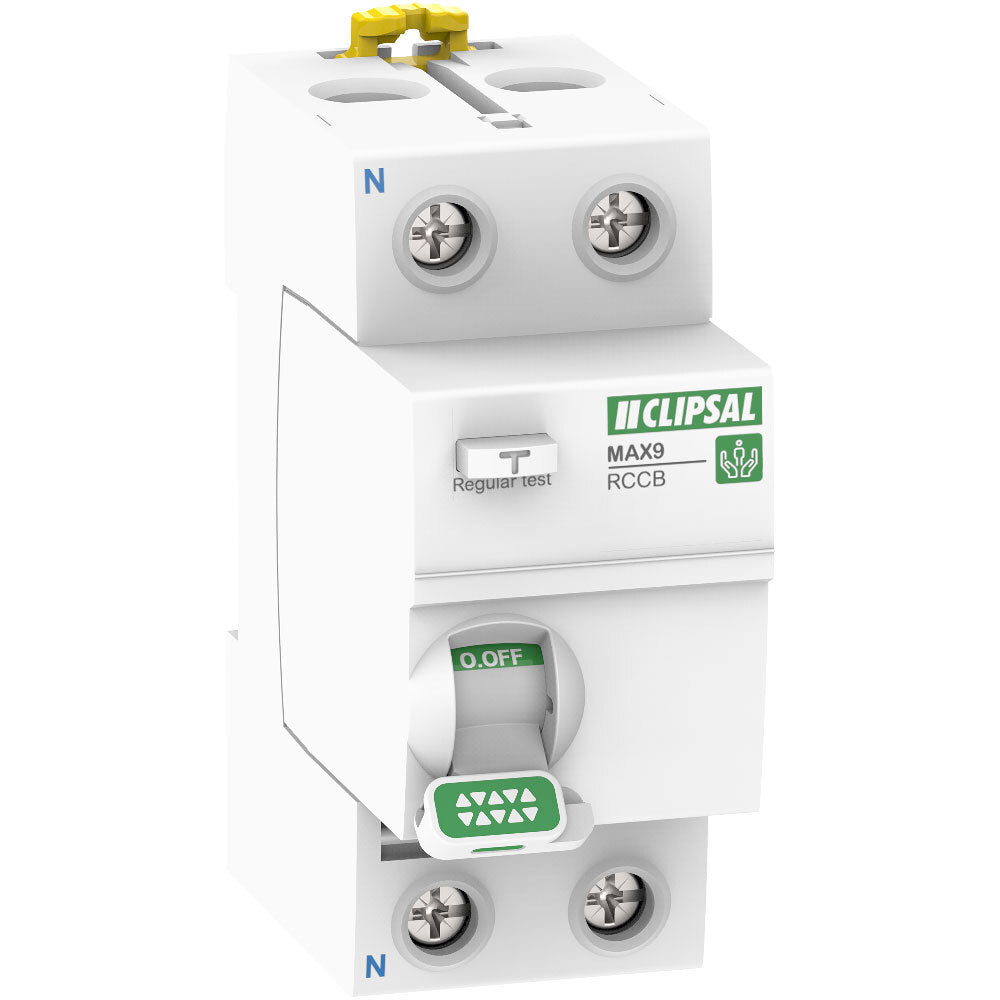

Clipsal MAX9 RCCB 2 Pole 40A 30mA Type A | White | MX9RC240
$43.99
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details
The Clipsal MAX9 MX9RC240 is a two-pole residual current circuit breaker with a 40A current rating and 30mA Type A earth-leakage protection. Its compact DIN-rail design includes a test button and ON/OFF indication for switchboard installations.
Key Features
- 2-pole RCCB with instantaneous 30mA Type A residual-current protection.
- 240V AC operation and 40A rated current.
- Top or bottom terminal connection for installation flexibility.
- Compatible with MAX9 18mm pitch pin-type busbars.
- DIN-rail clip-on mounting in a 36mm-wide body.
Specifications
| Brand / range | Clipsal MAX9 |
|---|---|
| MPN | MX9RC240 |
| Barcode / SKU | 9311554813253 |
| Device type | Residual current circuit breaker (RCCB) |
| Poles | 2 |
| Current / voltage | 40A / 240V AC |
| Residual-current sensitivity | 30mA, Type A |
| Dimensions | 36mm wide × 85mm high × 75mm deep |
| Net weight | 210g |
| Packaged weight | 214g |
Included
1 × Clipsal MAX9 MX9RC240 RCCB.
This RCCB provides residual-current protection; separate overcurrent protection is required.
