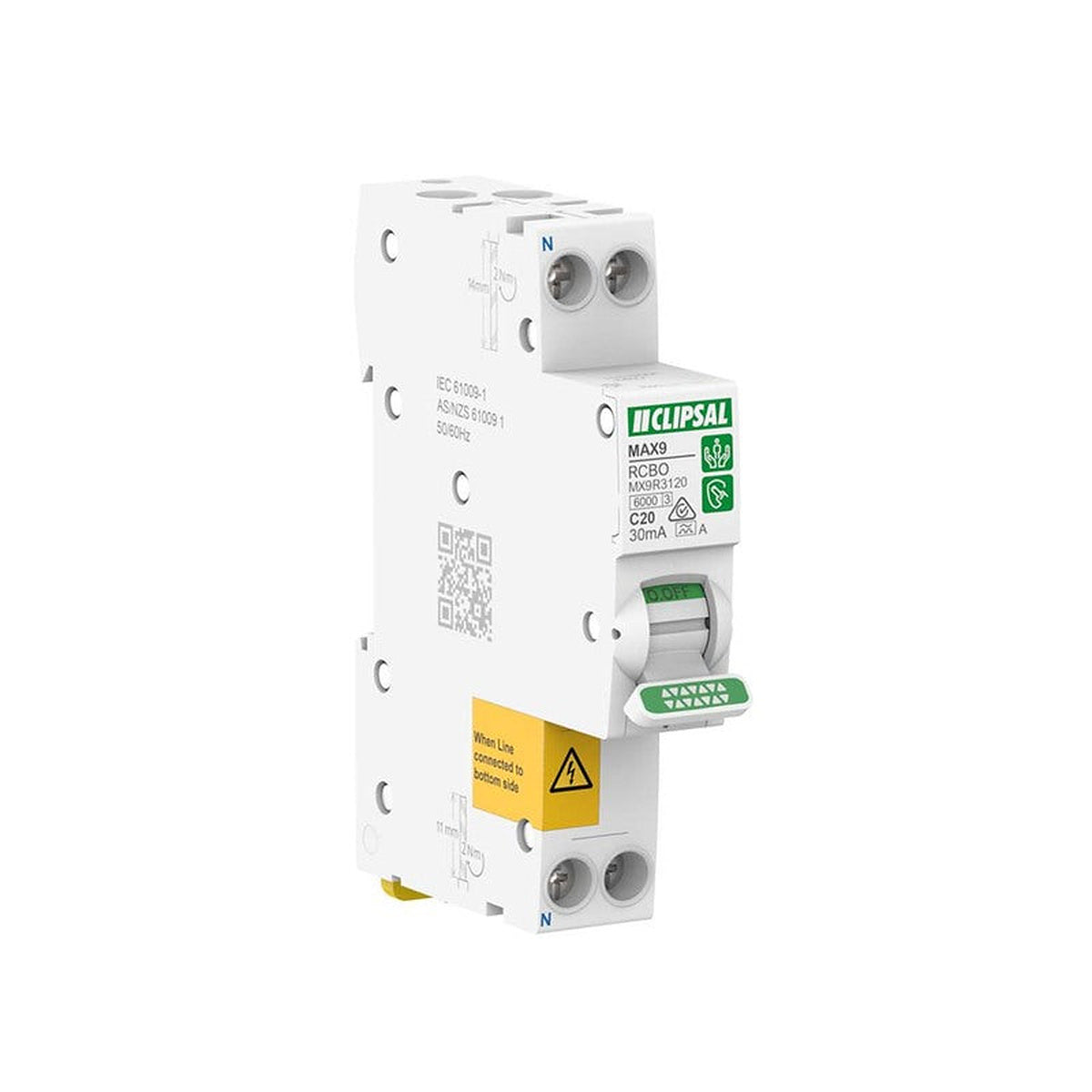

Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 1PN, 20A, 30mA, C Curve, 6000A, A Type, SLIM | White | MX9R3120
$37.94
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details
Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 1PN, 20A, 30mA, C Curve, 6000A, A Type, SLIM
The Clipsal MX9R3120 combines residual-current and overcurrent protection in a slim RCBO. Its Type A, 30mA residual-current protection and C-curve characteristic bring both protection functions together in one device.
Key Features
- Combined residual-current, overload and short-circuit protection.
- Type A residual-current protection.
- 30mA residual-current sensitivity.
- Slim format for compatible switchboard installations.
- Rated current: 20 A at 30 °C conforming to AS/NZS 61009.1.
Specifications
| Brand | Clipsal |
|---|---|
| Model | MX9R3120 |
| Range | MAX9 |
| Rated current | 20 A at 30 °C conforming to AS/NZS 61009.1 |
| Operational voltage | 240 V AC 50/60 Hz |
| Height | 93 mm |
| Width | 18 mm |
| Depth | 73 mm |
| Terminals | tunnel type terminal (top) - 1...16 mm² - rigid tunnel type terminal (top) - 1...10 mm² - flexible tunnel type terminal (bottom) - 1...10 mm² - rigid tunnel type terminal (bottom) - 1...6 mm² - flexible |
| IP rating | IP20 |
| Poles | 1P + N |
| Number of protected poles | 1 |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Tripping curve | C |
| Residual current sensitivity | 30 mA |
| Residual current type | type A |
| Breaking capacity | 6000 A Icn at 240 V AC 50/60 Hz |
| Insulation voltage | 440 V AC 50/60 Hz |
| 9mm pitches | 2 |
| SKU | 9311554812713 |
Your licensed electrician should confirm device selection and installation requirements.
