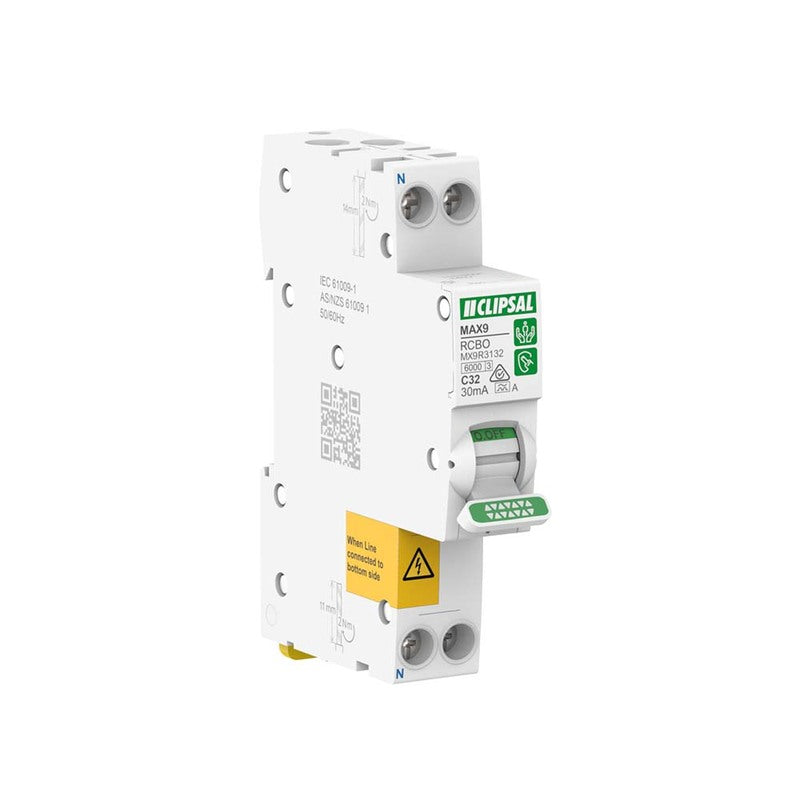

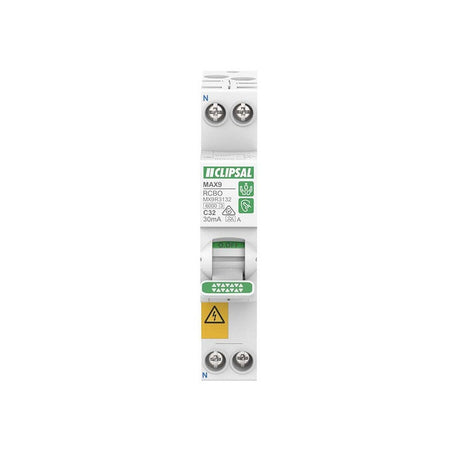

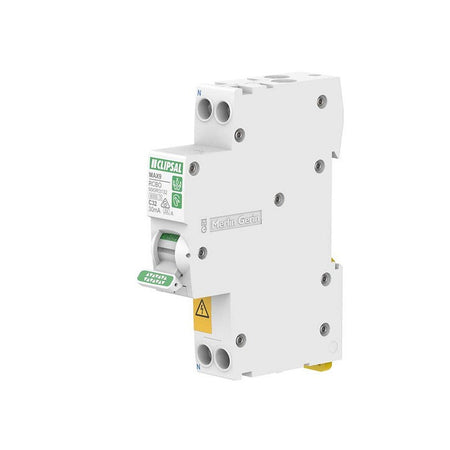

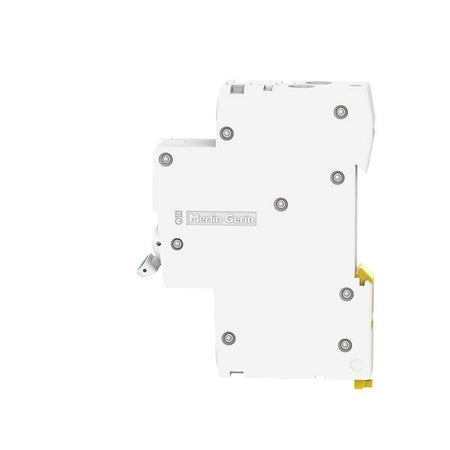

Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 1PN, 32A, 30mA, C Curve, 6000A, A Type, SLIM | MX9R3132
Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 1PN, 32A, 30mA, C Curve, 6000A, A Type, SLIM | MX9R3132
Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 1PN, 32A, 30mA, C Curve, 6000A, A Type, SLIM | MX9R3132
Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 1PN, 32A, 30mA, C Curve, 6000A, A Type, SLIM | MX9R3132
Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 1PN, 32A, 30mA, C Curve, 6000A, A Type, SLIM | MX9R3132
Clipsal

Clipsal MAX9 Residual Current Breaker with Overcurrent Protection (RCBO) 1PN, 32A, 30mA, C Curve, 6000A, A Type, SLIM | MX9R3132

SKU 9311554812751
Barcode 9311554812751
$41.09
or 4 payments of $10.27 with
✓ In Stock
✓
Quality Products Trusted electrical supplies
↻
30 Day Returns Shop with confidence
🔒
Secure Checkout Safe & protected payments

Product Details

Ultimate Efficiency and Professional Finish

  • MAX9 takes the definition of  a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
  • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal  RCBOs and AFDDs

Specifications

Design

Range MAX9
Product or component type residual current breaker with overcurrent protection (RCBO)
Warranty 7-year

Physical

[in] rated current 32 A at 30 °C conforming to AS/NZS 61009.1
[ue] rated operational voltage 240 V AC 50/60 Hz
Height 93 mm
Width 18 mm
Depth 73 mm
Net weight 136 g
Connections - terminals
  • tunnel type terminal (top) - 1...16 mm² - rigid
  • tunnel type terminal (top) - 1...10 mm² - flexible
  • tunnel type terminal (bottom) - 1...10 mm² - rigid
  • tunnel type terminal (bottom) - 1...6 mm² - flexible
Standards
  • IEC 61009-2-2
  • EN/IEC 61009-1
  • AS/NZS 61009.1
Ip degree of protection IP20
Ambient air temperature for operation -25...70 °C
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP2210010EN
Eu rohs directive Compliant By Exemption

Others

Legacy weee scope In
Package 1 bare product quantity 1
Package 2 bare product quantity 12
Average percentage of recycled plastic content 0 %
Warranty duration(in months) bmecat 84
Outside of Europe
Weee label N/A
Poles description 1P + N
Number of protected poles 1
Network type AC
Network frequency 50/60 Hz
Curve code C
Earth-leakage sensitivity 30 mA
Earth-leakage protection class type A
Earth-leakage protection time delay instantaneous
Breaking capacity 6000 A Icn at 240 V AC 50/60 Hz
Limitation class 3
[ui] rated insulation voltage 440 V AC 50/60 Hz
[uimp] rated impulse withstand voltage 4 kV
9 mm pitches 2
Comb busbar and distribution block compatibility YES
Temperature derating table
  • -25 °C ( 38 A )
  • -20 °C ( 37.5 A )
  • -15 °C ( 37 A )
  • -10 °C ( 36.4 A )
  • -5 °C ( 35.9 A )
  • 0 °C ( 35.4 A )
  • 5 °C ( 34.8 A )
  • 10 °C ( 34.3 A )
  • 15 °C ( 33.7 A )
  • 20 °C ( 33.2 A )
  • 25 °C ( 32.6 A )
  • 30 °C ( 32 A )
  • 35 °C ( 31.4 A )
  • 40 °C ( 30.8 A )
  • 45 °C ( 30.2 A )
  • 50 °C ( 29.5 A )
  • 55 °C ( 28.9 A )
  • 60 °C ( 28.2 A )
  • 65 °C ( 27.5 A )
  • 70 °C ( 26.8 A )
Grid distance 45 mm
Quality labels RCM
Pollution degree 2
Overvoltage category III
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 2 cm
Package 1 width 10 cm
Package 1 length 7.5 cm
Package 1 weight 156 g
Unit type of package 2 BB1
Number of units in package 2 12
Package 2 height 8.6 cm
Package 2 width 24.4 cm
Package 2 length 10.3 cm
Package 2 weight 1.872 kg
Green premium status for reporting Green Premium product
Total lifecycle carbon footprint 83 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3] 2.2988830753
Carbon footprint of the manufacturing phase [a1 to a3] 2 kg CO2 eq.
Carbon footprint of the distribution phase [a4] 0.0201125894
Carbon footprint of the distribution phase [a4] 0 kg CO2 eq.
Carbon footprint of the installation phase [a5] 0.0002689674
Carbon footprint of the installation phase [a5] 0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6] 80.178125
Carbon footprint of the use phase [b2, b3, b4, b6] 80 kg CO2 eq.
Sustainable packaging Yes
Carbon footprint of the end-of-life phase [c1 to c4] 0.0233830646
Carbon footprint of the end-of-life phase [c1 to c4] 0 kg CO2 eq.
F-gas free N/A
Take-back No
Product contributes to saved and avoided emissions No
Removable battery N/A
Total lifecycle carbon footprint 82.5207726967
Average percentage of recycled metal content 0 %
Packaging made with recycled cardboard Yes
Packaging without single use plastic Yes
End of life manual availability N/A
Take-back No
Warranty (in months) 84
🚚
