Clipsal
Clipsal MAX9 Surge Protection Device 1 Pole 40kA | White | MX9SP140
$105.58
Includes GST
Currently Unavailable
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details

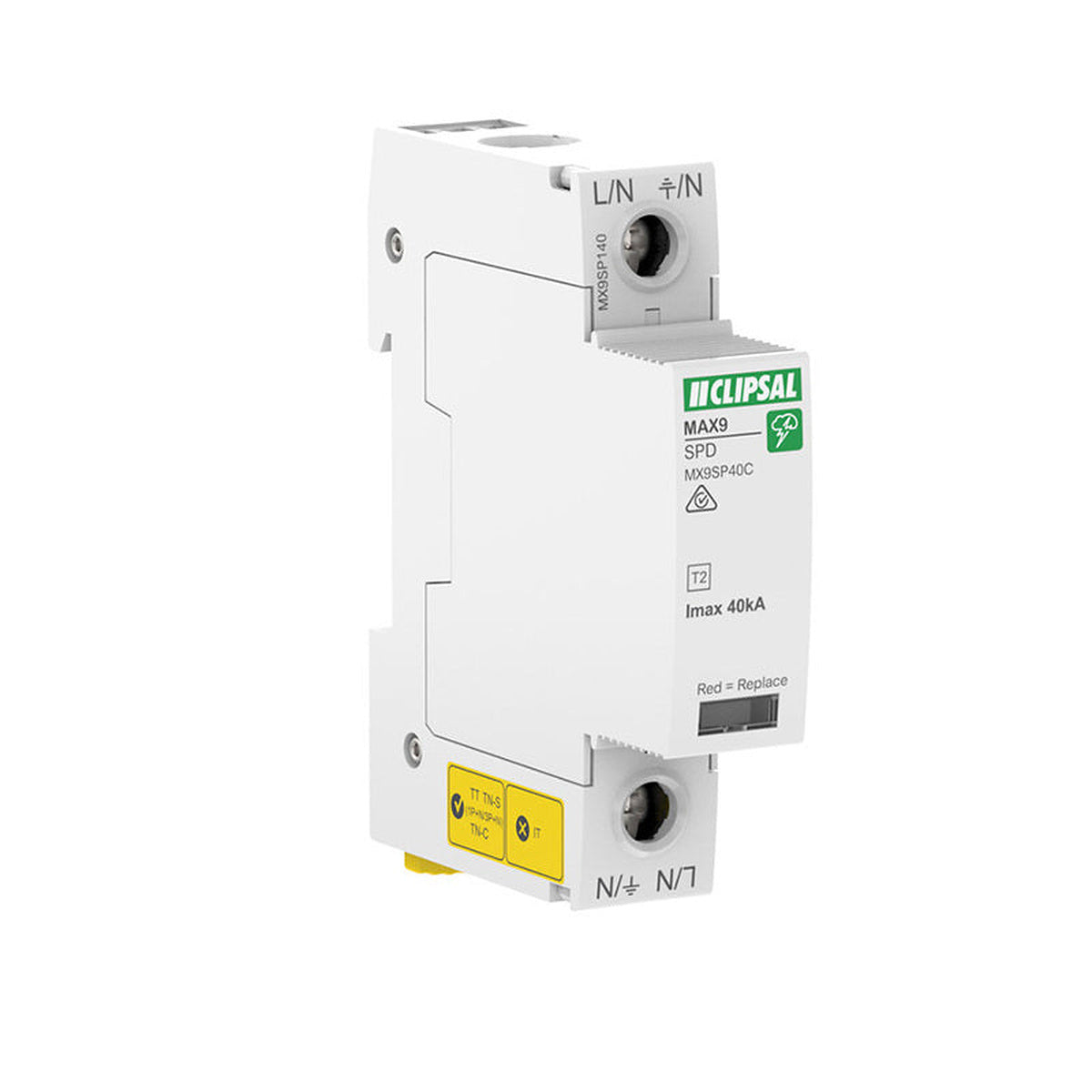

Clipsal MAX9 1 Pole Surge Protection Device
The Clipsal MX9SP140 is a Type 2 surge protection device for electrical distribution boards. Its compact DIN rail design helps protect connected equipment against transient voltage surges, with a replaceable cartridge for straightforward servicing.
Features
- Single-pole MOV surge arrester with a maximum discharge current of 40 kA.
- White/red status flag indicates when cartridge replacement is required.
- Remote signalling contacts: 1 normally open and 1 normally closed.
- Compatible with TN-C, TN-S and TT earthing systems.
- 18 mm modular width with clip-on DIN rail mounting.
Specifications
| Brand / range | Clipsal MAX9 |
|---|---|
| MPN | MX9SP140 |
| Barcode | 9311554814199 |
| Colour | White |
| Rated voltage | 240 V AC ±6%, 50/60 Hz |
| Nominal discharge current | 15 kA |
| Maximum continuous operating voltage | 350 V AC |
| Voltage protection level | <1.6 kV |
| Dimensions (H × W × D) | 85 × 18 × 64 mm |
| Weight | 119 g net; 132 g packaged |
| Pack quantity | 1 complete surge protection device |
Fast Australia-Wide Delivery
Reliable shipping direct to your door.
Need Help?
Contact the Sparky Stock team
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
