Clipsal Resi MAX Miniature Circuit Breaker 1 Pole 6A C Curve 4.5kA 240V | White | MCB4-106
Estimate delivery in your cart before checkout. Shipping information
Product Details

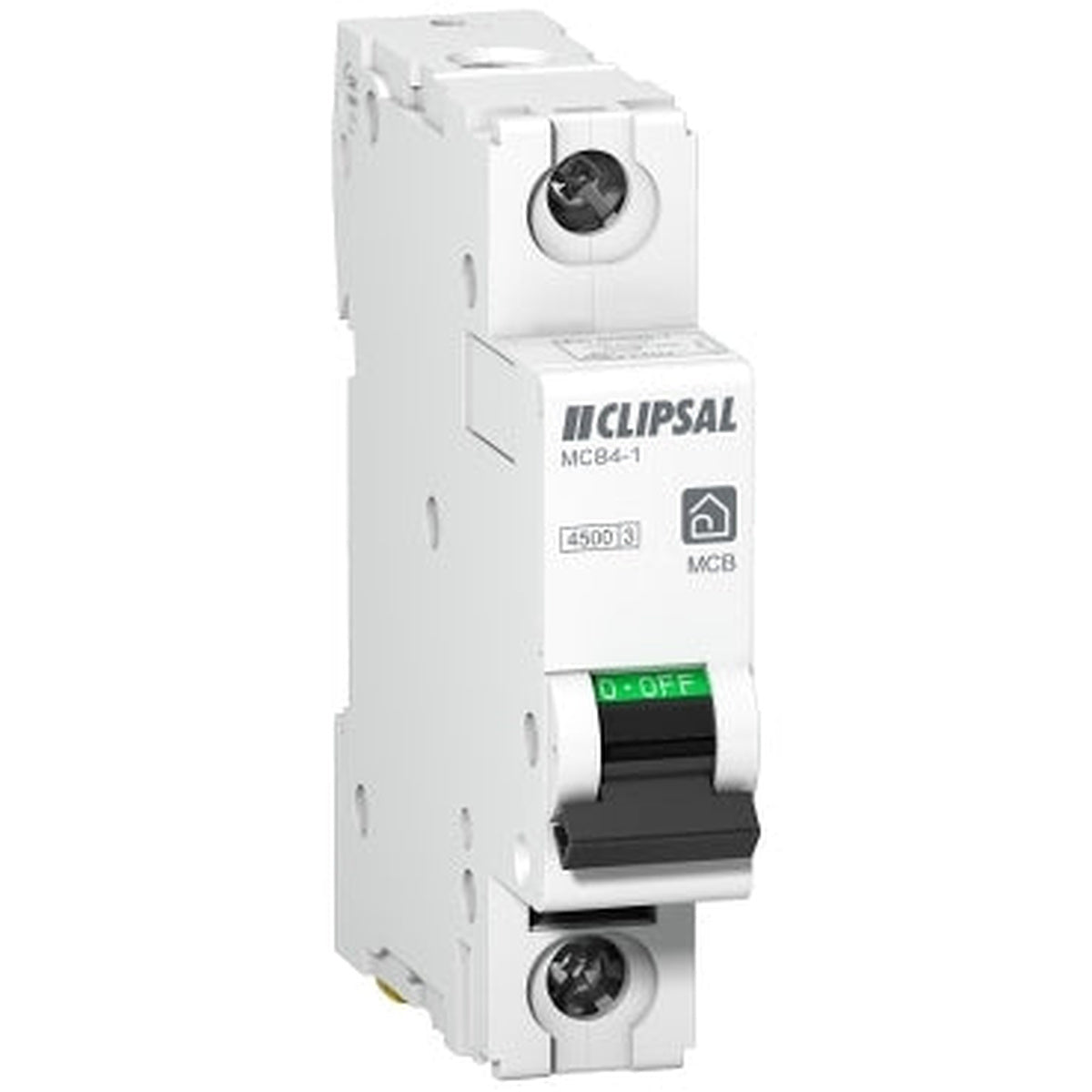

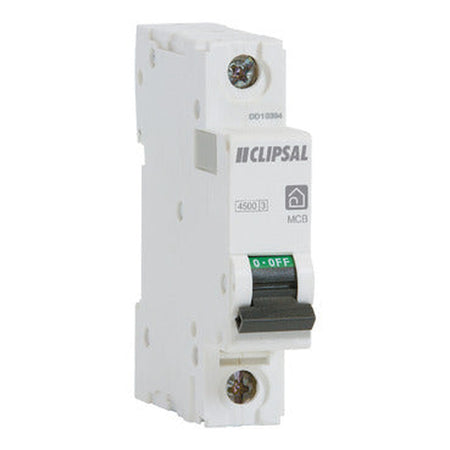

Clipsal Resi MAX 6A Single Pole Miniature Circuit Breaker
The Clipsal Resi MAX MCB4-106 provides overload and short-circuit protection for 240V AC circuits. This 6A miniature circuit breaker has a C-curve tripping characteristic and a 4.5kA rated short-circuit breaking capacity to AS/NZS 60898.1.
Its single-pole, one-module design mounts on DIN rail and occupies 18mm of switchboard space. The white housing and black operating toggle provide a practical finish for compatible modular switchboards.
Features
- 6A rated current with C-curve operation.
- Single-pole circuit protection for 240V AC, 50/60Hz systems.
- 4.5kA rated short-circuit breaking capacity at 240V.
- Compact DIN rail mounting with screw terminals.
- Resettable operation with trip-free locking capability in the ON or OFF position.
Specifications
| Brand and range | Clipsal Resi MAX |
|---|---|
| Manufacturer part number | MCB4-106 |
| Barcode / GTIN | 9318795018294 |
| Rated current | 6A |
| Poles | 1 |
| Trip curve | C |
| Rated operational voltage | 240V AC, 50/60Hz |
| Breaking capacity | 4.5kA at 240V |
| Colour | White |
| Mounting | DIN rail, 1 module |
| Dimensions (H × W × D) | 81 × 18 × 78.5mm |
| Net weight | 115g |
| Quantity supplied | 1 circuit breaker |
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
