Clipsal
Clipsal MAX9 32A Single-Pole C-Curve 6kA Circuit Breaker | White | MX9MC132
$4.93
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details

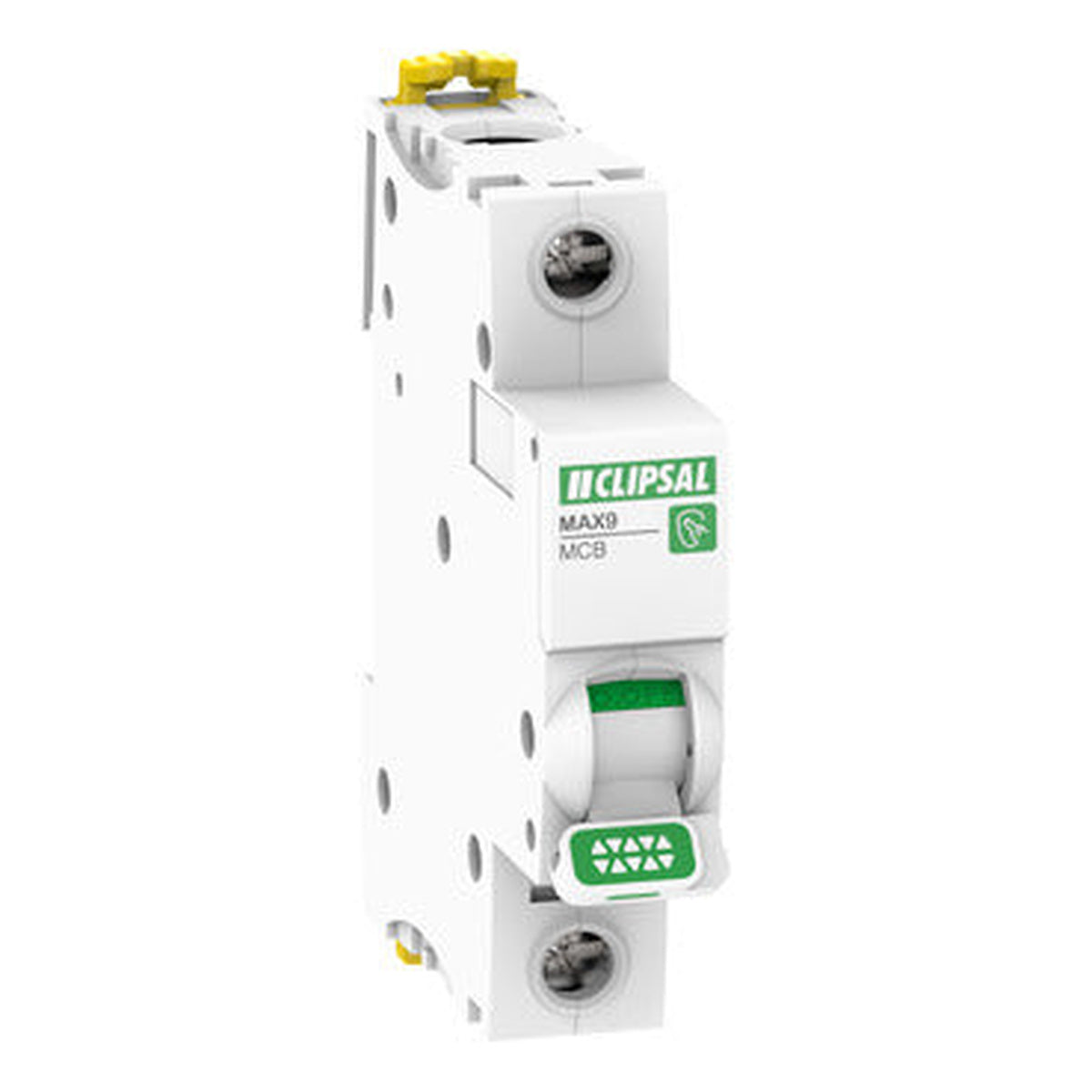

The Clipsal MAX9 32A single-pole miniature circuit breaker provides overload and short-circuit protection for distribution circuits. Its C-curve trip characteristic and 6kA breaking capacity suit a compact DIN rail installation.
Features
- One protected pole with a 32A rated current.
- C-curve tripping and 6kA short-circuit breaking capacity at 240V AC.
- ON/OFF toggle indication and positive contact position indication.
- Top or bottom cable connection for installation flexibility.
- 18mm wide body occupies one standard module.
Specifications
- Manufacturer part number: MX9MC132
- Range: Clipsal MAX9
- Rated operational voltage: 240V AC, 50/60Hz
- Colour: White (RAL 9003)
- Dimensions: 85mm high × 18mm wide × 75mm deep
- Product weight: 125g
- Protection rating: IP20
- Mechanical endurance: 20,000 cycles
- Electrical endurance: 10,000 cycles at 240V
- Manufacturer warranty: 7 years
- Barcode: 9311554813611
Fast Australia-Wide Delivery
Reliable shipping direct to your door.
Need Help?
Contact the Sparky Stock team
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
