Clipsal MAX9 10A 3-Pole C-Curve 6kA Circuit Breaker | White | MX9MC310
$37.13
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details

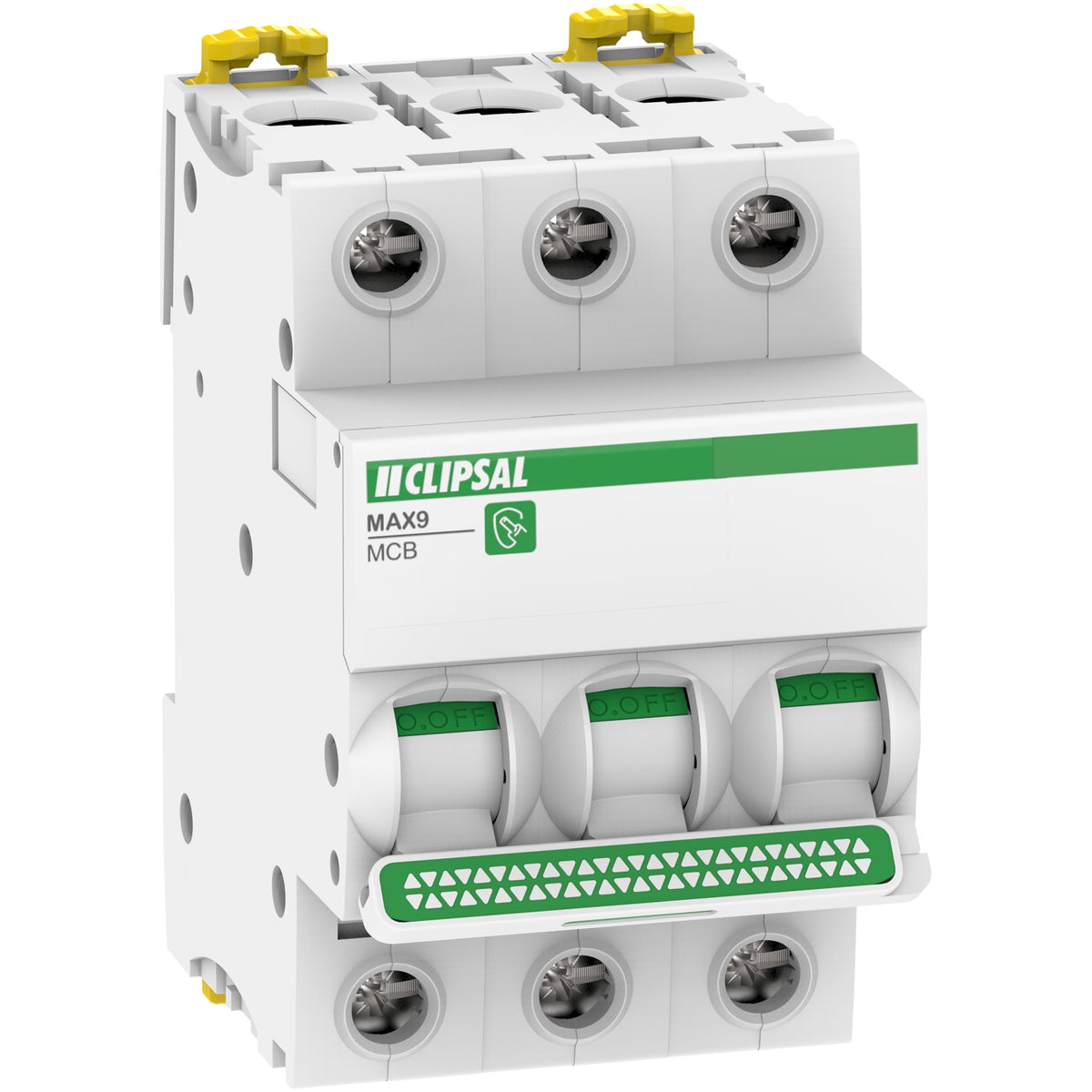

The Clipsal MAX9 MX9MC310 is a 10A miniature circuit breaker for three-pole circuit protection. It combines overload and short-circuit protection with a C-curve trip characteristic and a white finish.
Features
- Three protected poles with a linked toggle and contact position indication.
- 6kA breaking capacity at 415V AC to AS/NZS 60898.
- DIN rail mounting with double locking clips.
- Top or bottom cable connections and combination-head terminal screws.
- Compatible with MAX9 18mm pitch pin-type busbars.
Specifications
- Rated current: 10A at 30°C
- Operating voltage: 415V AC, 50/60Hz
- Trip curve: C
- Protection rating: IP20
- Dimensions: 85mm high × 54mm wide × 75mm deep
- Net weight: 375g
- Flexible conductor capacity: 1–16mm²
- Rigid conductor capacity: 1–25mm²
- Terminal tightening torque: 2Nm
- Manufacturer part number and model: MX9MC310
- Barcode: 9311554813895
- Country of origin: India
- Manufacturer warranty: 7 years (84 months)
