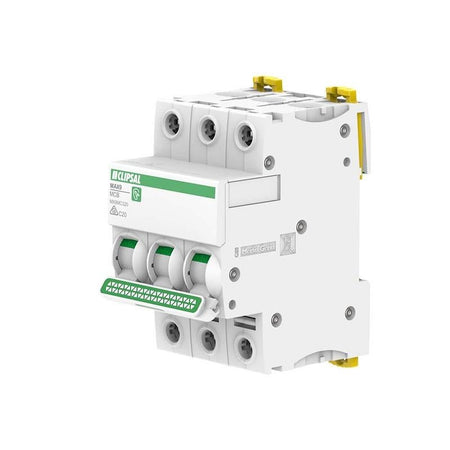

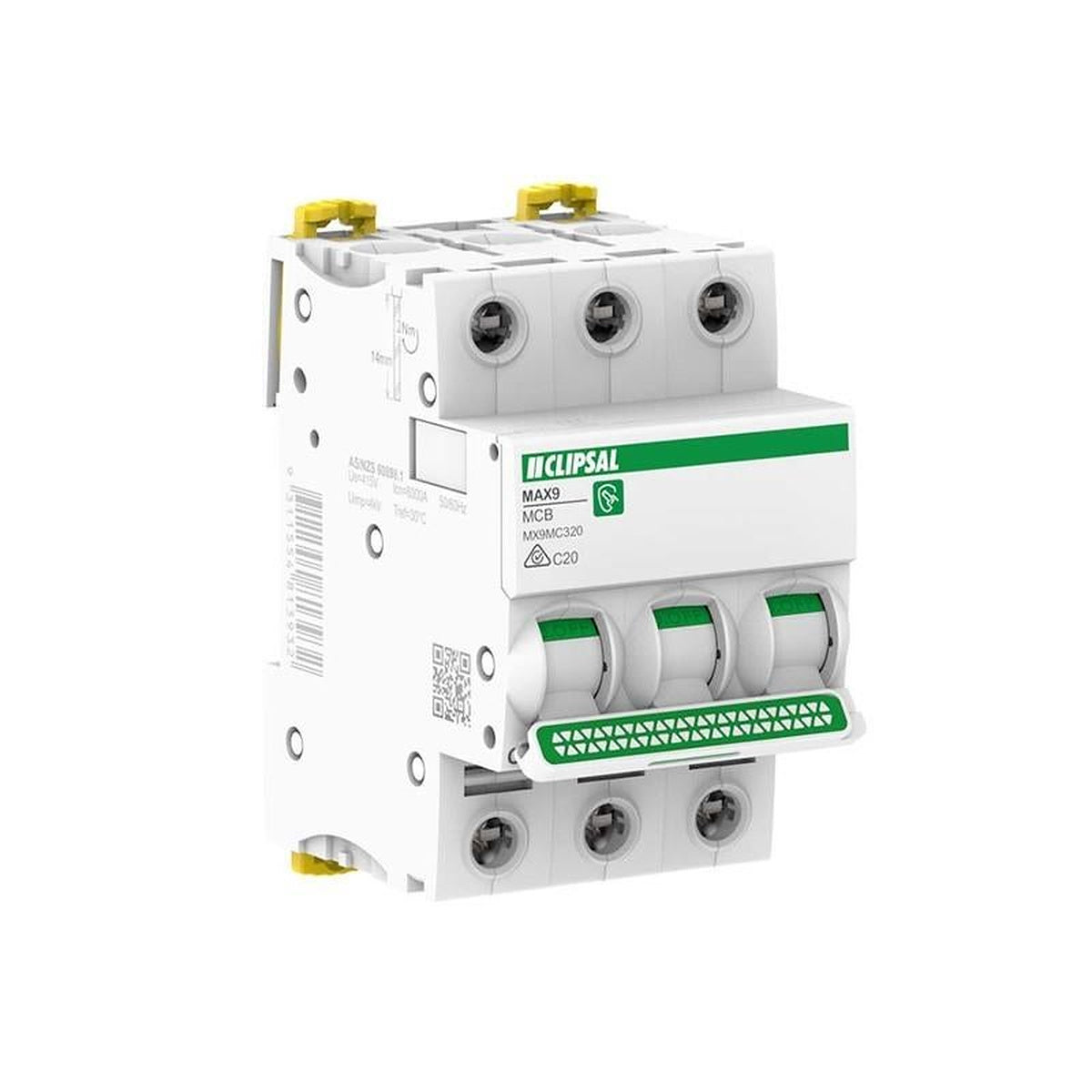

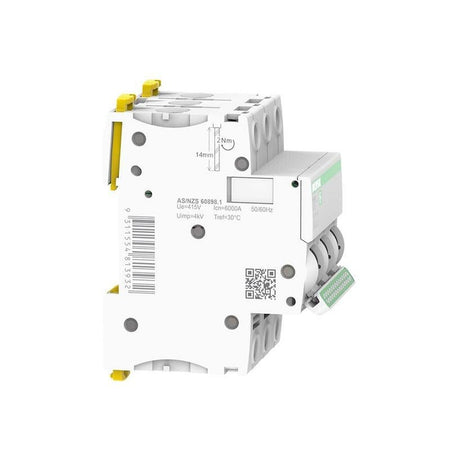

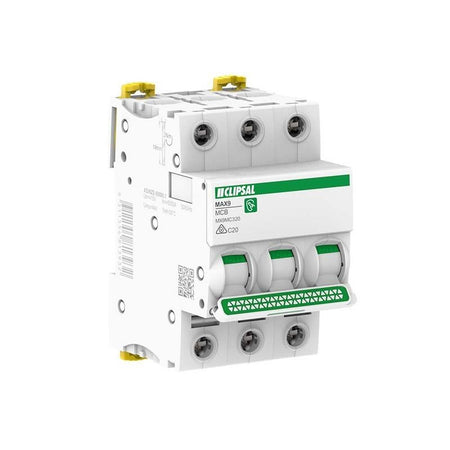

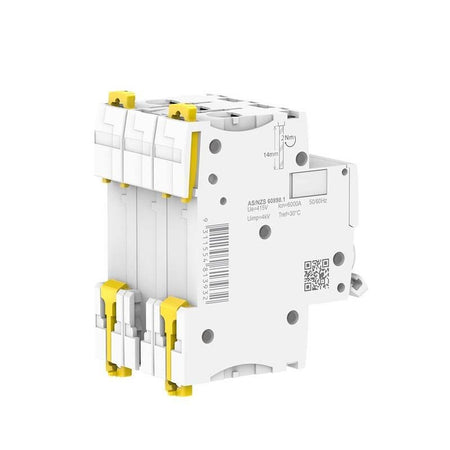

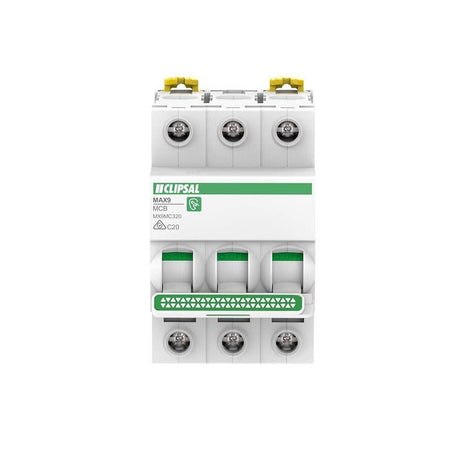

Clipsal MAX9 20A 3-Pole Circuit Breaker C Curve 6kA | White | MX9MC320
Estimate delivery in your cart before checkout. Shipping information
Product Details
The Clipsal MAX9 MX9MC320 is a 20A three-pole miniature circuit breaker for AC distribution circuits. It provides overload and short-circuit protection across three protected poles, with a C-curve tripping characteristic and a 6kA rated breaking capacity at 415V AC to AS/NZS 60898.

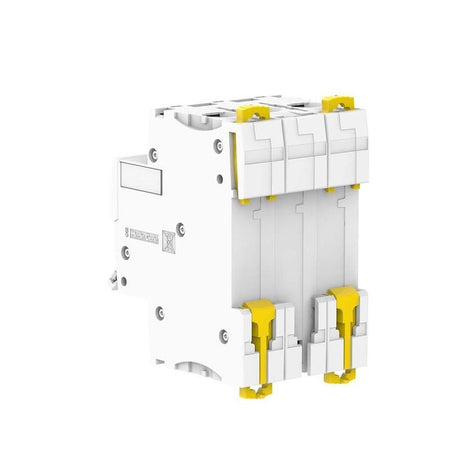

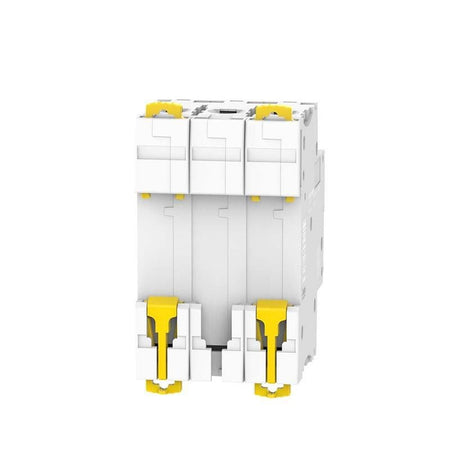

Its DIN-rail format occupies 54 mm of switchboard width. The linked toggles provide ON/OFF indication, while the double locking clip supports installation and removal. Top or bottom cable connections offer flexibility when arranging a compatible switchboard.
- Rated current: 20A at 30°C
- Poles: 3, with all three poles protected
- Trip curve: C
- Breaking capacity: 6kA at 415V AC
- Operating voltage: 415V AC, 50/60Hz
- Colour: white
- Dimensions: 85 mm high × 54 mm wide × 75 mm deep
- IP rating: IP20
- Mechanical endurance: 20,000 cycles
- Manufacturer part number: MX9MC320
- Manufacturer warranty: 7 years
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
