Clipsal MAX9 Miniature Circuit Breaker 3 Pole 40A C Curve 6kA | White | MX9MC340
Estimate delivery in your cart before checkout. Shipping information
Product Details

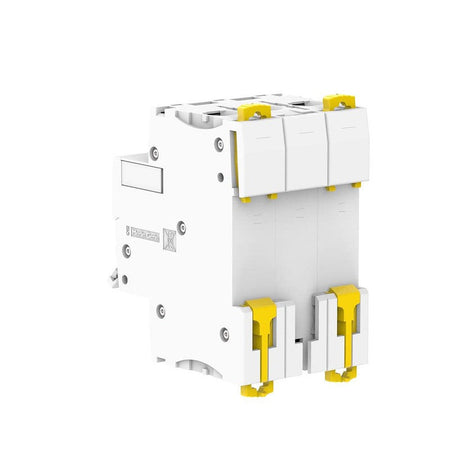

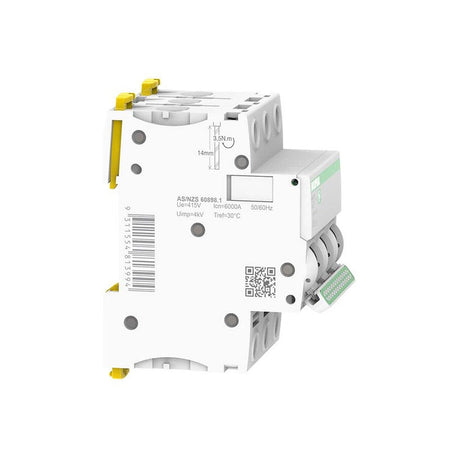

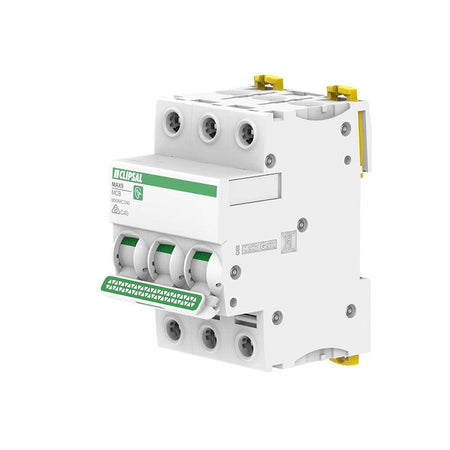

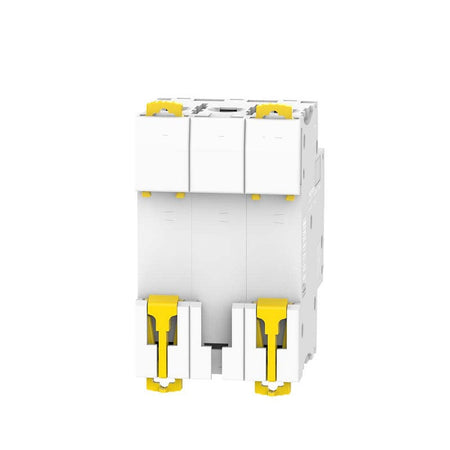

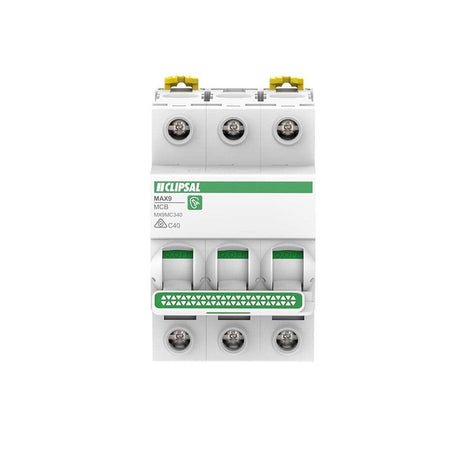

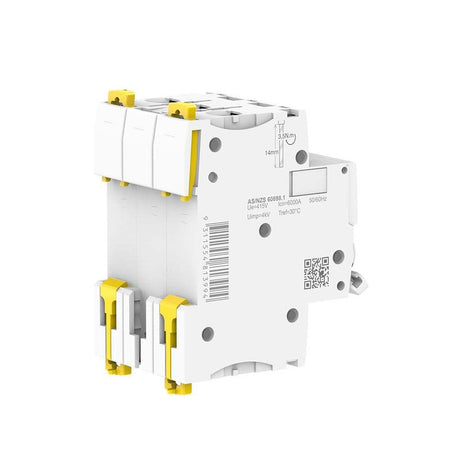

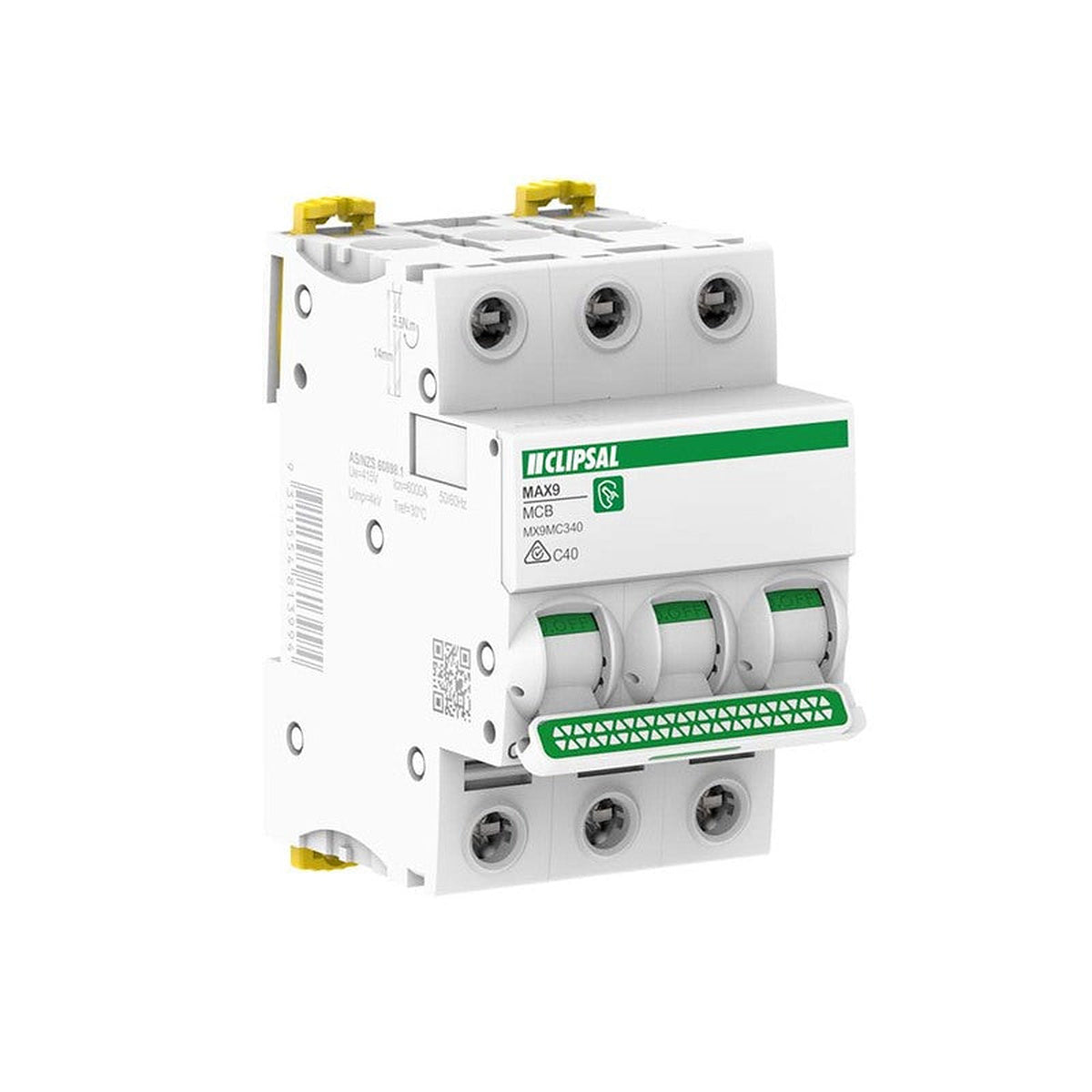

Clipsal MAX9 40A Three-Pole Circuit Breaker
The Clipsal MX9MC340 is a 40A miniature circuit breaker for three-phase distribution circuits. It combines three protected poles, C-curve tripping and a 6kA short-circuit breaking capacity at 415V AC to provide overload and short-circuit protection.
Its white housing occupies three standard 18mm modules, giving a total width of 54mm. The linked toggles provide a clear ON/OFF indication, while the trip-free mechanism allows the breaker to operate even if the handle is held in the ON position.
Key Features
- 40A rated current with C-curve tripping for general distribution applications.
- Three protected poles with a 6000A breaking capacity at 415V AC.
- 35mm DIN rail mounting for horizontal or vertical installation.
- Top or bottom cable entry for flexible switchboard layouts.
- Double locking clip and combination-head terminal screws.
- IP20 protection and a contact position indicator.
Specifications
| Brand / range | Clipsal MAX9 |
|---|---|
| MPN | MX9MC340 |
| Barcode / SKU | 9311554813994 |
| Colour | White |
| Rated current | 40A at 30°C |
| Poles / modules | 3 poles / 3 modules |
| Trip curve | C |
| Operating voltage | 415V AC, 50/60Hz |
| Breaking capacity | 6kA to AS/NZS 60898 |
| Dimensions | 85mm high × 54mm wide × 75mm deep |
| Net product weight | 375g |
Included
1 × Clipsal MAX9 MX9MC340 miniature circuit breaker.
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
