Clipsal

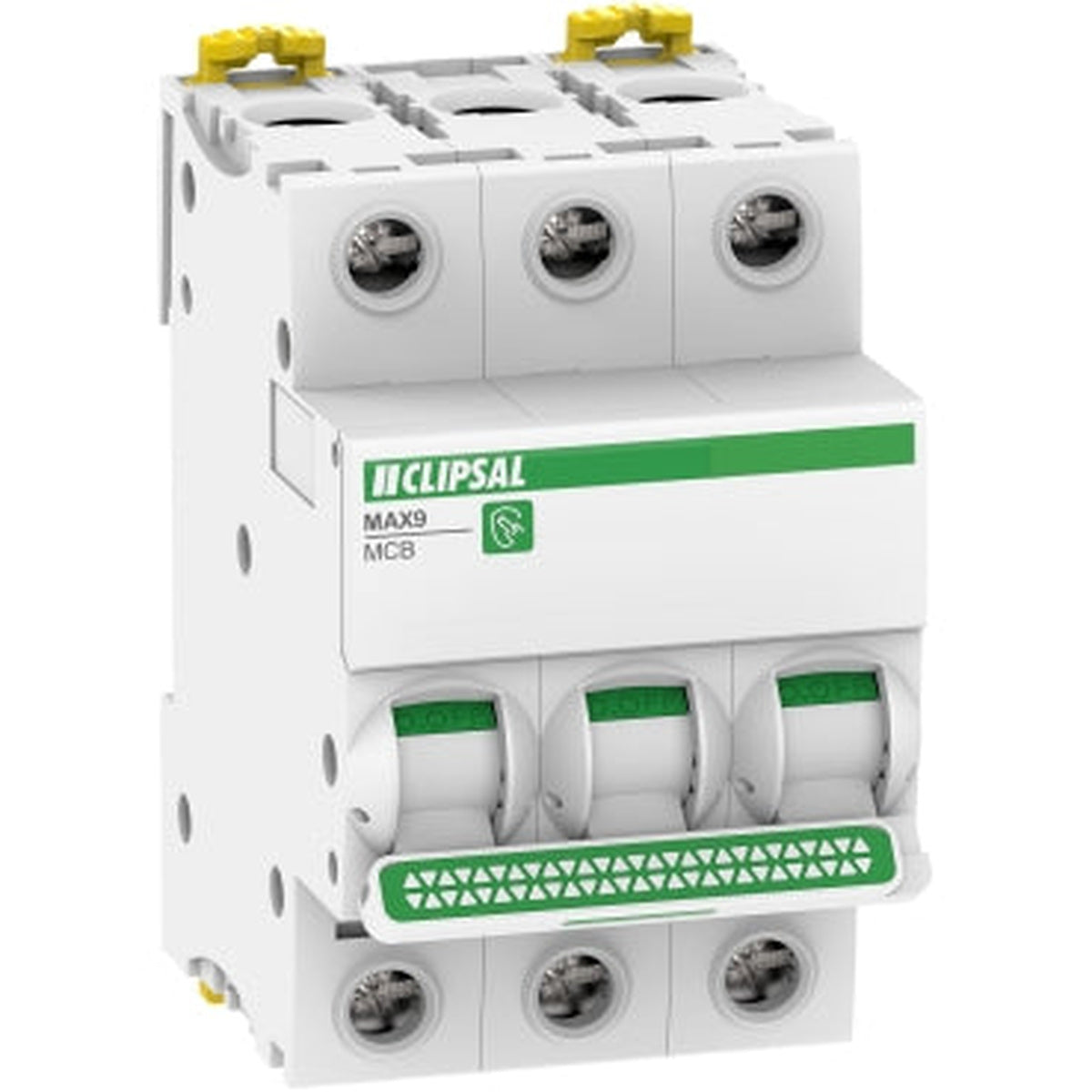

Clipsal MAX9 50A 3-Pole C-Curve 6kA Circuit Breaker | White | MX9MC350
$40.69
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details
The Clipsal MAX9 50A three-pole miniature circuit breaker provides overload and short-circuit protection for distribution circuits. It combines C-curve tripping with a 6kA breaking capacity at 415V AC in a white, DIN rail mounted design.
Features
- Three protected poles with a 50A rated current.
- C-curve tripping and 6kA short-circuit breaking capacity.
- ON/OFF toggle indication and positive contact position indication.
- Top or bottom cable connection for installation flexibility.
- 54mm wide housing, equivalent to three 18mm modules.
Specifications
- Manufacturer part number: MX9MC350
- Range: Clipsal MAX9
- Voltage and frequency: 415V AC, 50/60Hz
- Colour: White (RAL 9003)
- Dimensions: 85mm high × 54mm wide × 75mm deep
- Product weight: 375g
- Protection rating: IP20
- Mechanical endurance: 20,000 cycles
- Electrical endurance: 10,000 cycles at 240V
- Manufacturer warranty: 7 years
- Barcode: 9311554814014
