Clipsal

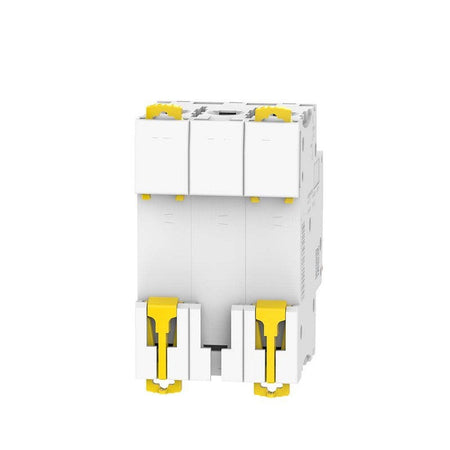

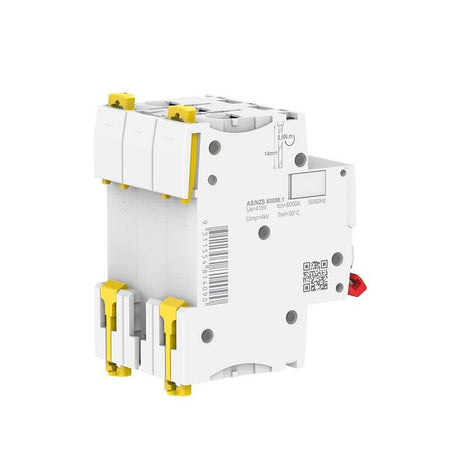

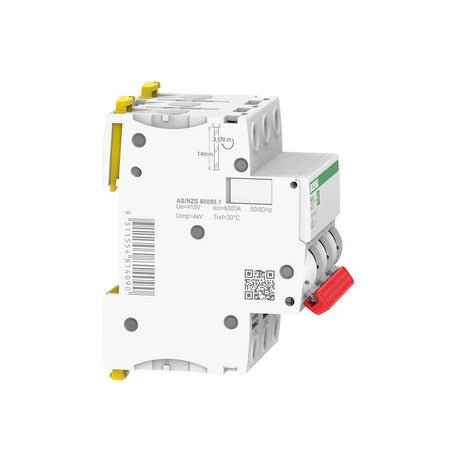

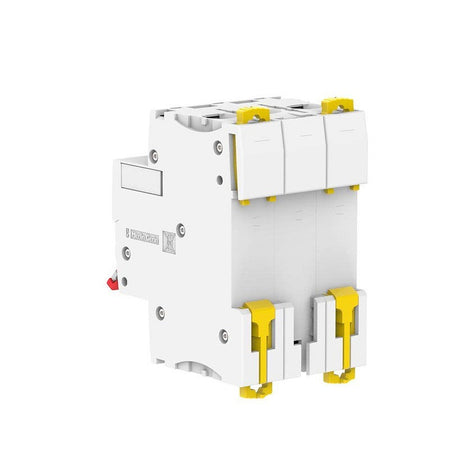

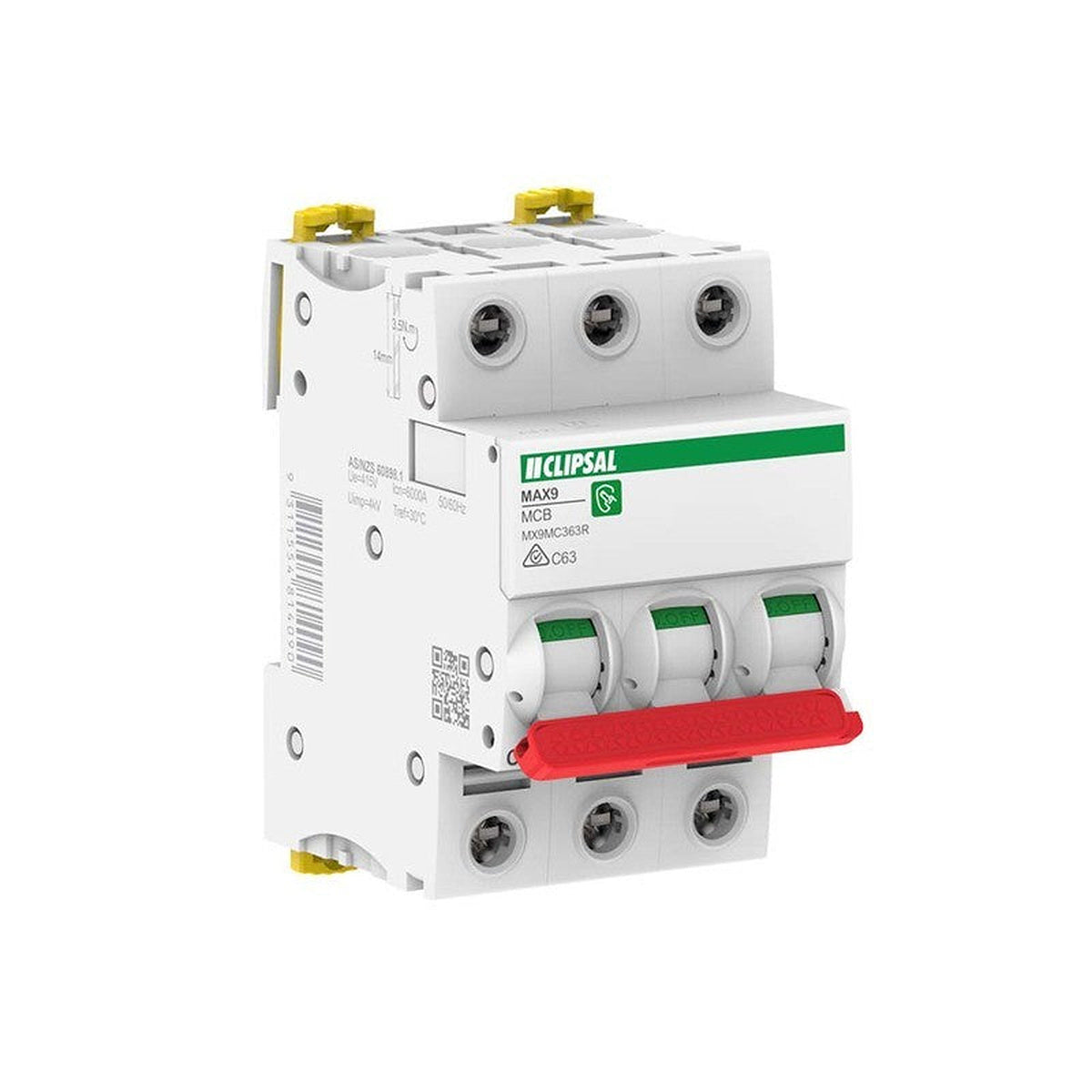

Clipsal MAX9 63A 3-Pole C-Curve 6kA Incomer Circuit Breaker | White with Red Toggle | MX9MC363R
$43.51
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details
The Clipsal MAX9 MX9MC363R is a 63A three-pole miniature circuit breaker designed for incomer applications. Its red toggle identifies the main incoming circuit, while the C-curve mechanism provides overload and short-circuit protection across all three poles.
- Rated current: 63A at 30°C
- Rated operating voltage: 415V AC, 50/60Hz
- Breaking capacity: 6kA to AS/NZS 60898
- Three protected poles with linked red toggle
- White housing with contact position indication
- DIN rail mounting; 54mm wide, 85mm high and 75mm deep
- Top or bottom line connection for flexible installation
- Compatible with MAX9 18mm-pitch pin-type busbars
- Double locking clip for fitting or removal from the busbar
- Manufacturer part number and model: MX9MC363R
- Manufacturer warranty: 7 years
