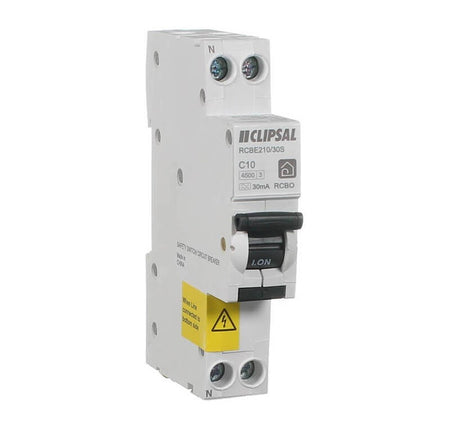

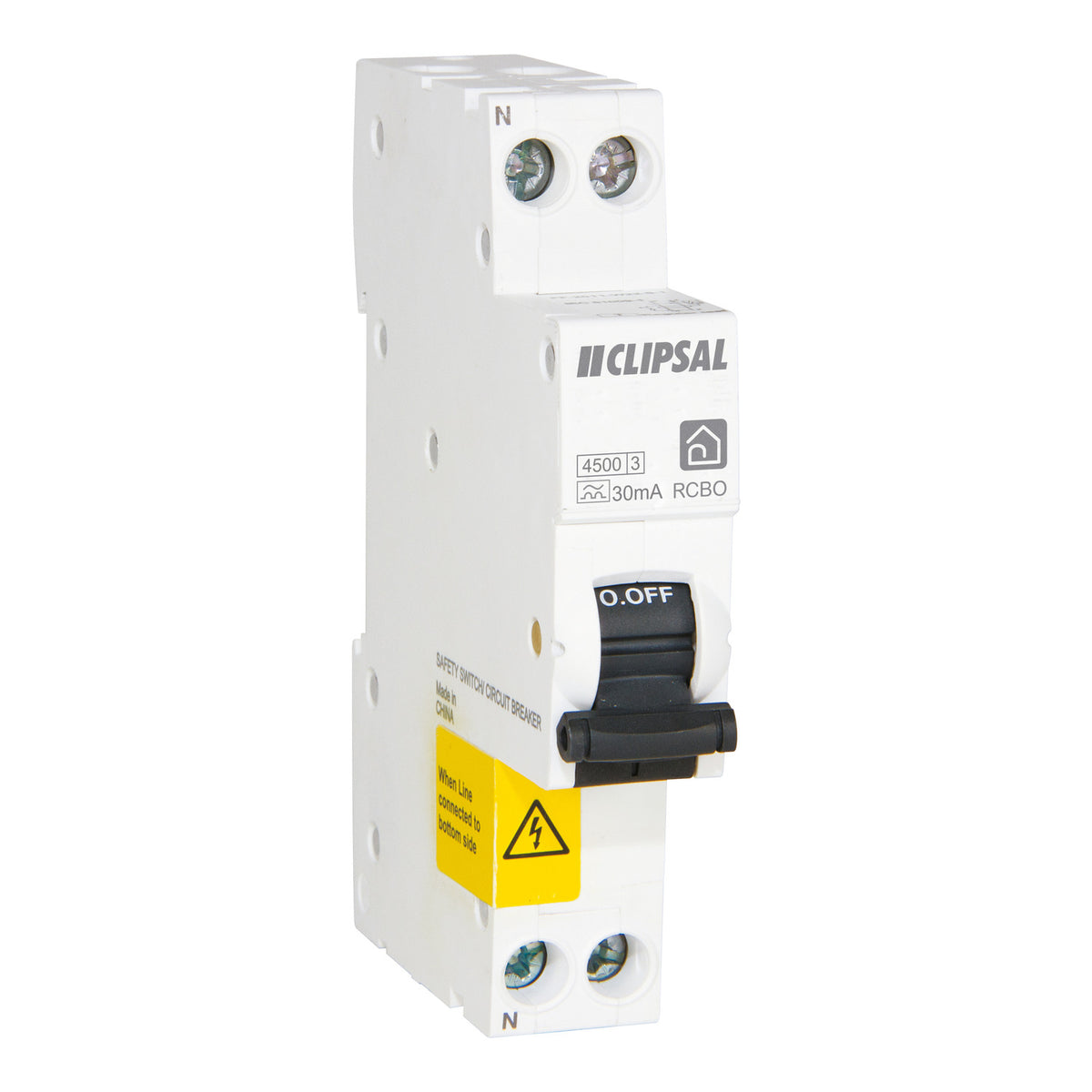

Clipsal Resi MAX 10A Slim RCBO 1P+N 30mA Type A 4.5kA | White/Black | RCBE210/30S
Estimate delivery in your cart before checkout. Shipping information
Product Details
The Clipsal Resi MAX RCBE210/30S combines residual current and overcurrent protection in a slim, single-module RCBO. Its 18mm width helps make efficient use of switchboard space, while the 1P+N configuration provides a protected active pole and switched neutral.
Rated at 10A and 240V AC, this C-curve device provides 30mA Type A residual current protection and a 4.5kA short-circuit breaking capacity. The neutral connection is on the left, and the unit supports top or bottom supply feed.
- DIN rail mounting with a white body and black operating toggle
- Dimensions: 92.5mm high × 18mm wide × 71.5mm deep
- Lockable in the ON or OFF position with trip-free operation
- Protection rating: IP20 unenclosed and IP40 when enclosed
- Made in China
- Manufacturer warranty: 18 months
A compact circuit protection option for compatible residential switchboards, with a test button for checking residual current operation.
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
