Clipsal
Clipsal Resi MAX 40A 2 Pole RCD 30mA Type A | White | RMXRC240
$46.49
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details

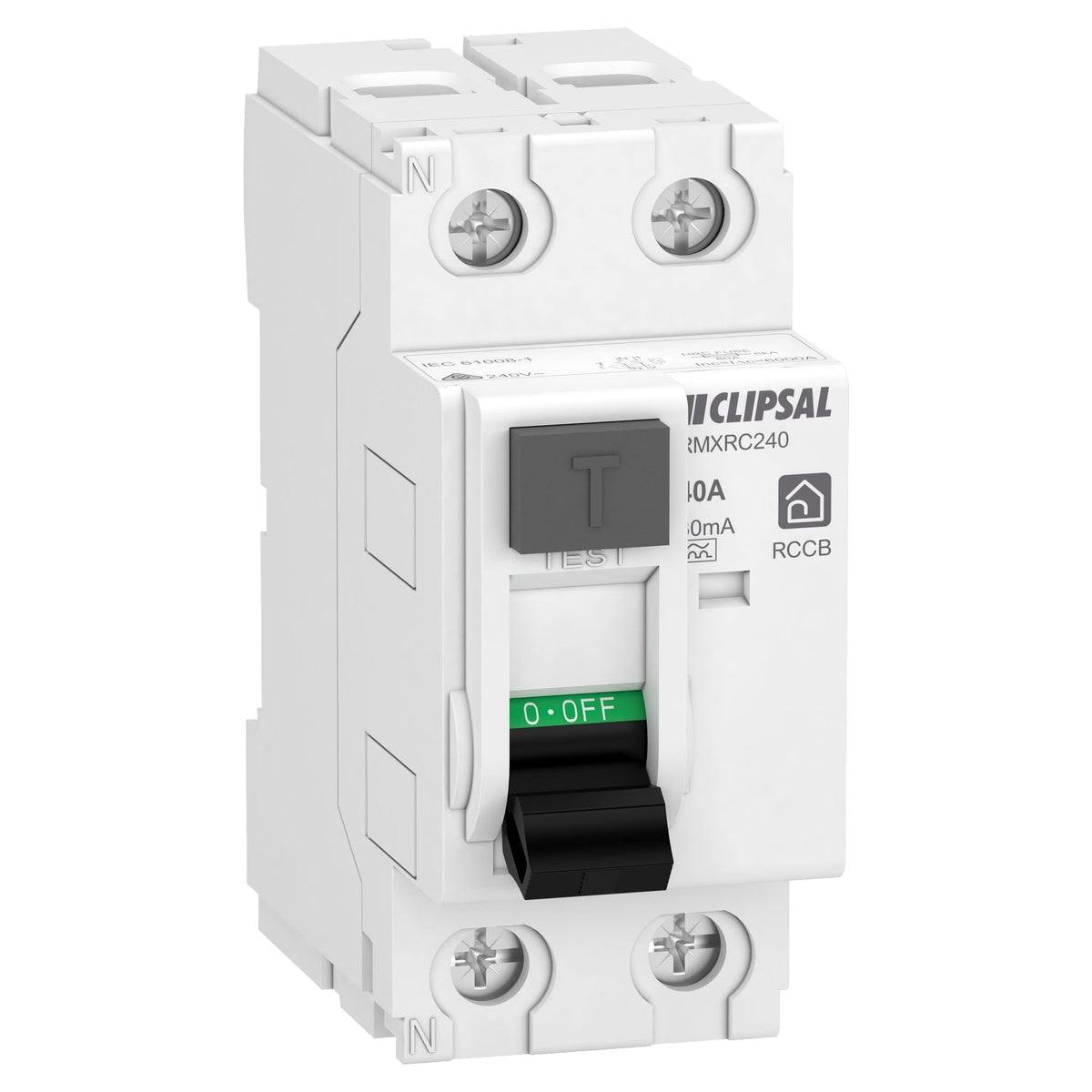

The Clipsal Resi MAX RMXRC240 is a two-pole residual current circuit breaker (RCCB) with a 40A rating and 30mA Type A earth-leakage protection. Its DIN rail design occupies two modules in a switchboard.
Features
- Switches both active and neutral.
- Red mechanical indicator identifies an earth-leakage fault.
- Compatible with 18mm-pitch pin and fork busbars.
- White housing with a compact 36mm width.
Specifications
- Manufacturer part number: RMXRC240
- Rated current: 40A
- Poles: 2
- Operating voltage and frequency: 240V AC, 50Hz
- Earth-leakage sensitivity: 30mA, Type A
- Rated conditional short-circuit current: 6kA
- Protection rating: IP20; IP40 when installed in a modular enclosure
- Dimensions: 81mm high × 36mm wide × 73mm deep
- Net weight: 189g
- Standard: AS/NZS 61008
- Manufacturer warranty: 18 months
- Barcode: 9311554815936
Sold individually.
Fast Australia-Wide Delivery
Reliable shipping direct to your door.
Need Help?
Contact the Sparky Stock team
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
