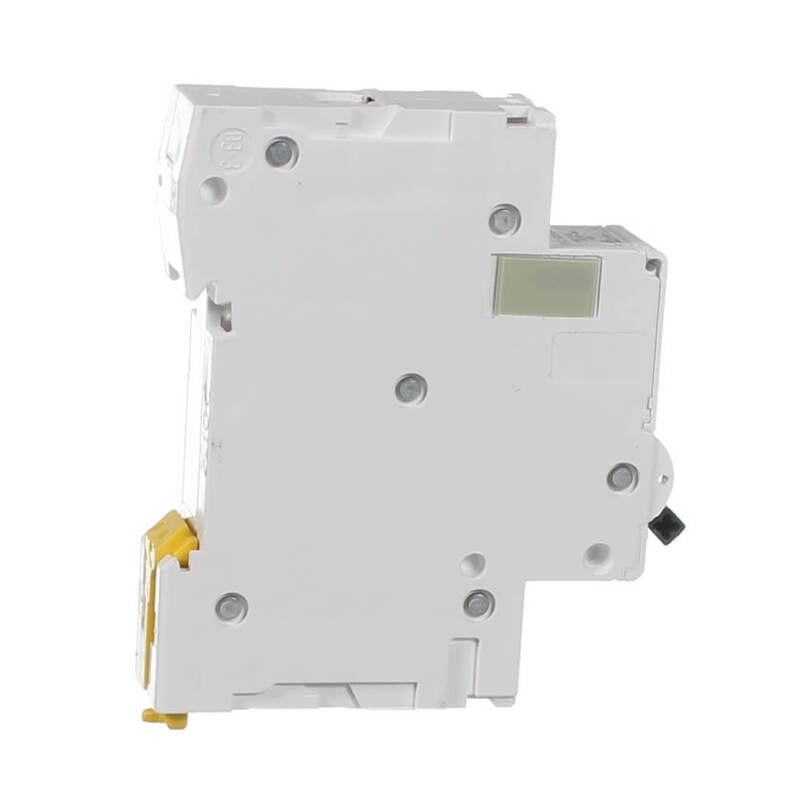

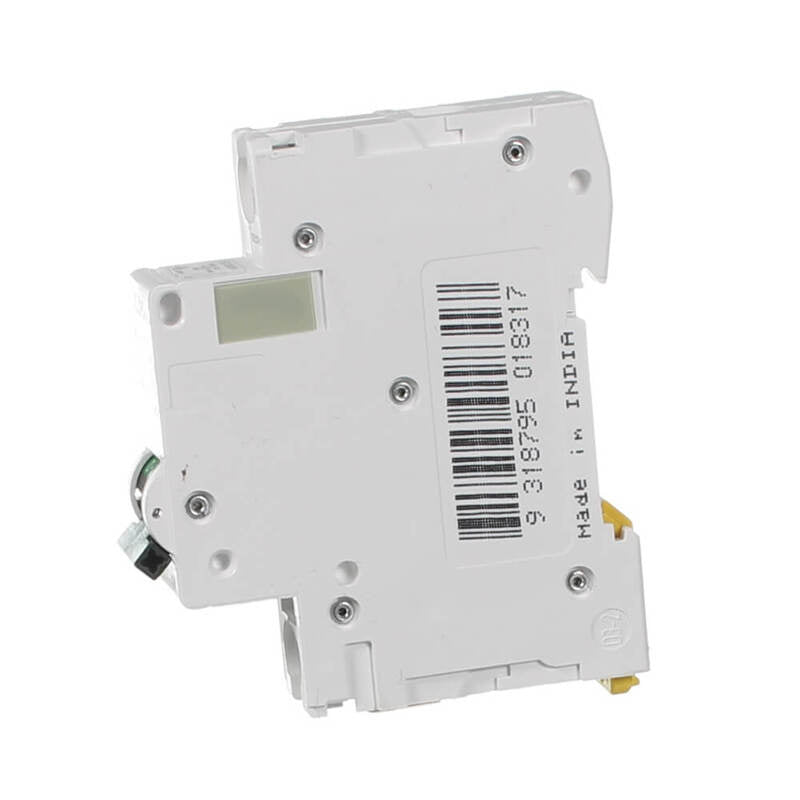

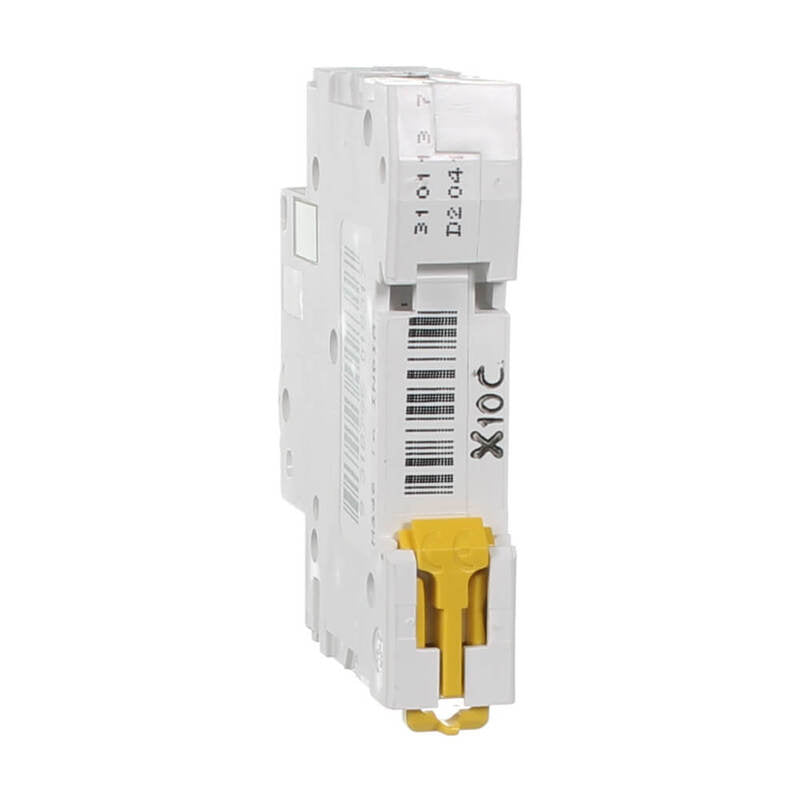

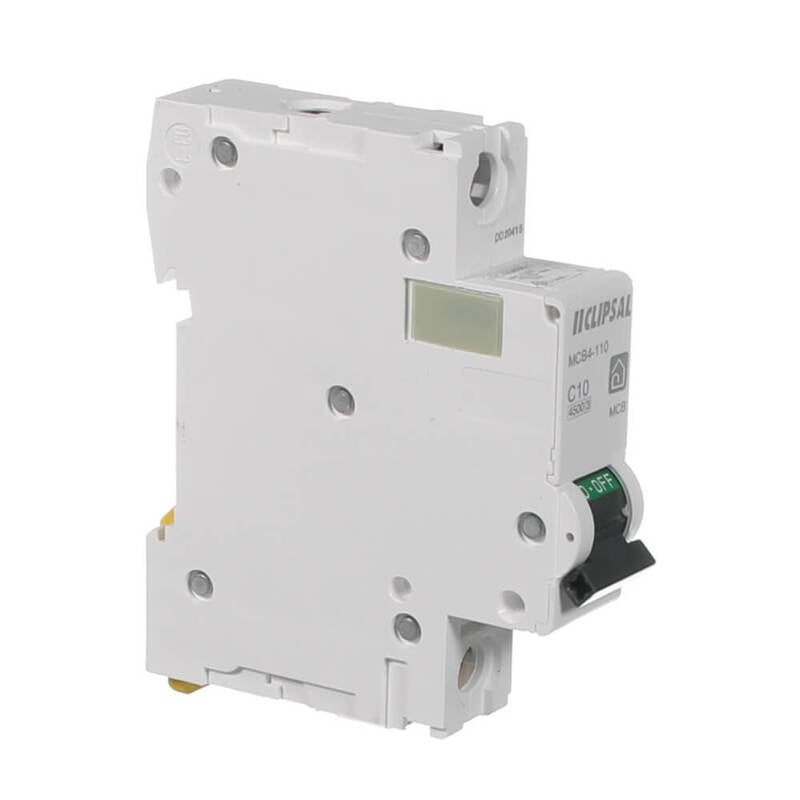

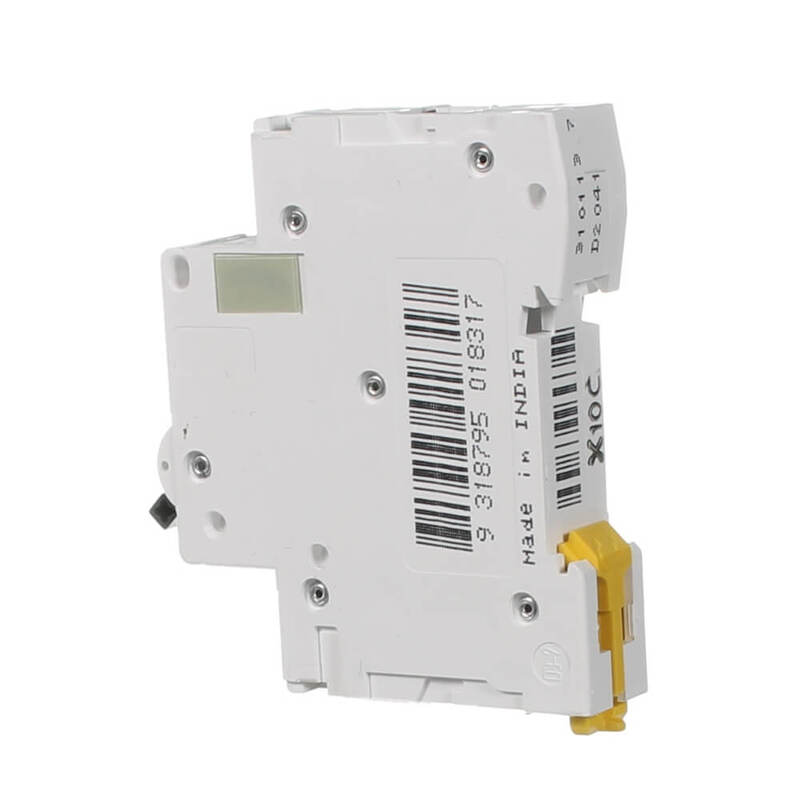

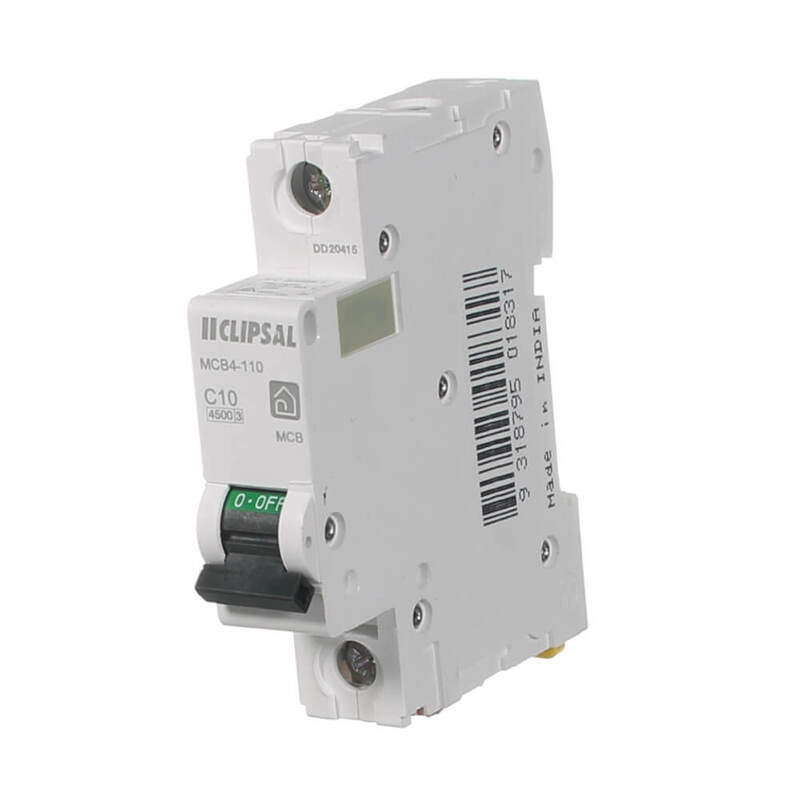

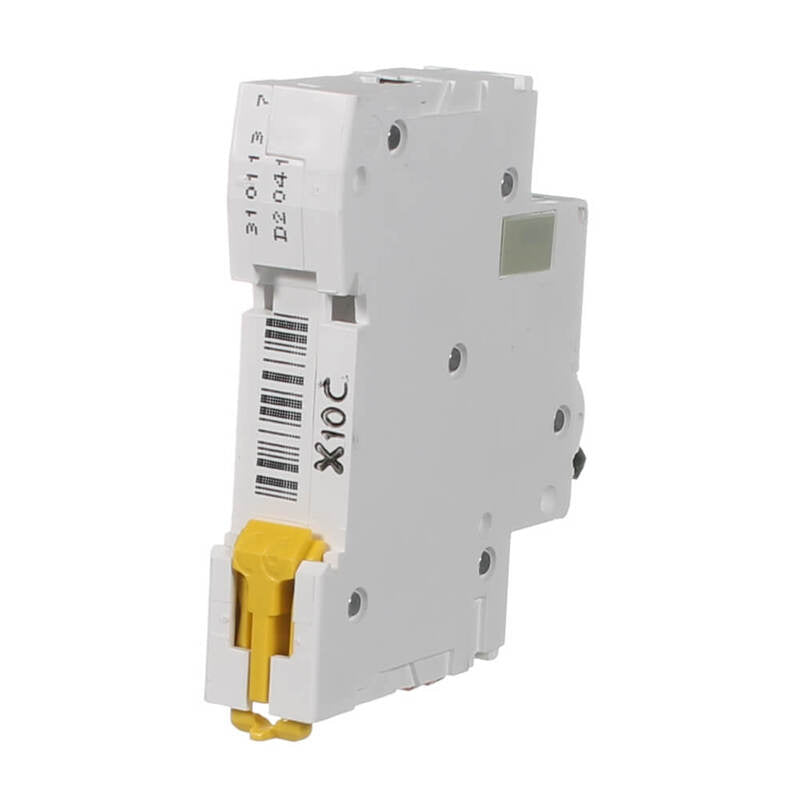

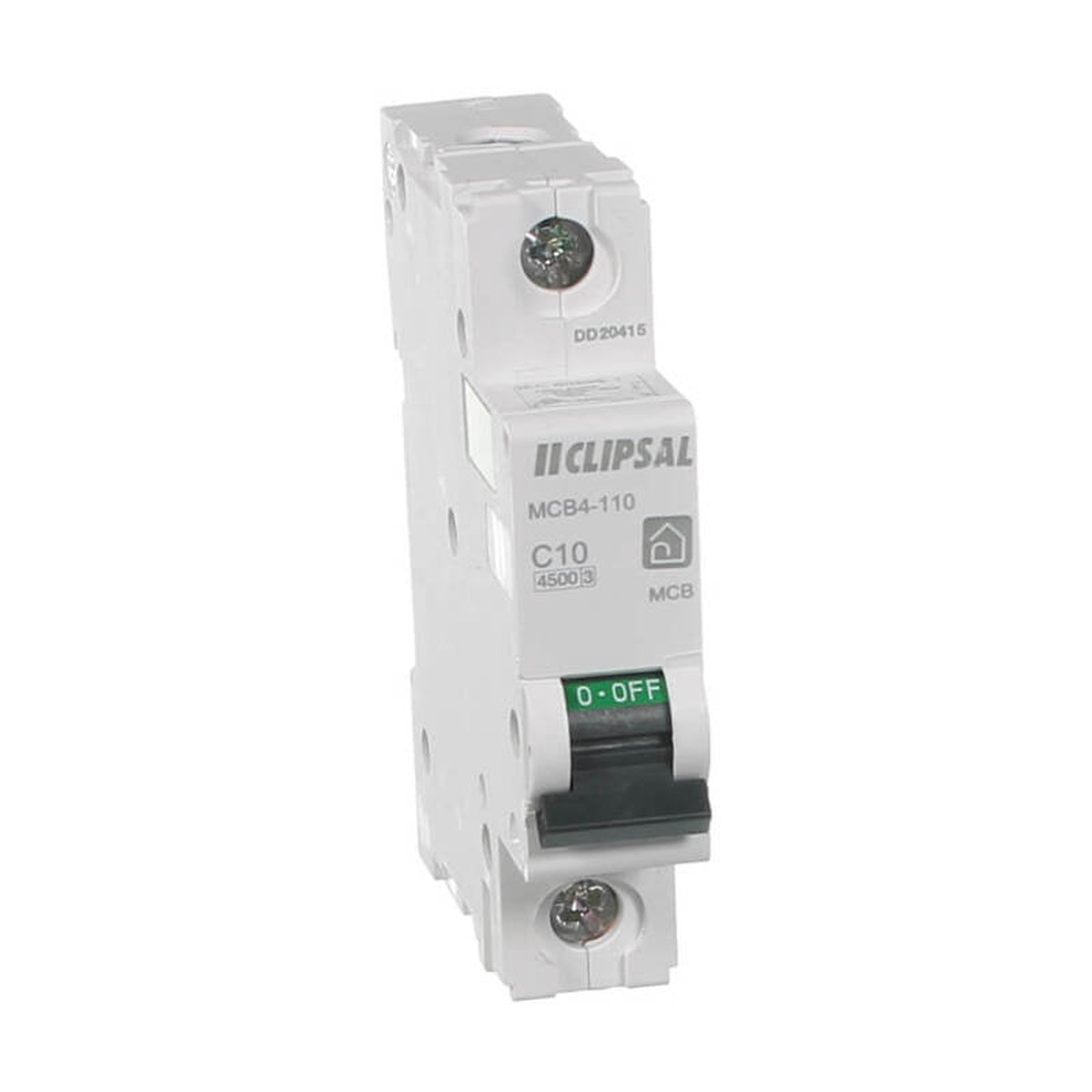

Clipsal Resi MAX Miniature circuit breaker 1P 10A C curve 4500 A 240V | MCB4-110

Clipsal Resi MAX Miniature circuit breaker 1P 10A C curve 4500 A 240V | MCB4-110

$20.33 AUD
$20.33 AUD
Sale Sold out
Taxes included.

Features

  • Helps to protect cables from damage due to overload or short circuit
  • MCBs can easily be reset once electrical circuits reach safe operating levels
  • ON/OFF locking with trip free mechanism
  • C-curve tripping for typical residential applications
  • 4.5kA* short circuit breaking capacity

Specifications

Design

Product brand Clipsal
Range Resi MAX

Physical

Number of poles 1
[in] rated current 10 A
[ue] rated operational voltage 240 V
Mechanical durability 20000 cycles
Electrical durability 20000 cycles
Connections - terminals
  • screw terminal for 1 cable(s) 0.75-16 mm² rigid
  • screw terminal for 1 cable(s) 0.33-10 mm² flexible
  • screw terminal for 1 cable(s) 0.33-10 mm² flexible with ferrule
Wire stripping length 13 mm
Ip degree of protection
  • IP20 conforming to IEC 60529
  • IP40 (modular enclosure) conforming to IEC 60529
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -40...70 °C
Standards AS/NZS 60898
Relative humidity 95 % at 55 °C
Height 81 mm
Width 18 mm
Depth 78.5 mm
Net weight 115 g
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP1304004EN
Eu rohs directive Compliant By Exemption
California proposition 65 WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope In
Package 1 bare product quantity 1
Average percentage of bio-based plastic content 0 %
Average percentage of recycled plastic content 0 %
Outside of Europe
Warranty duration(in months) bmecat 18
Weee label N/A
Weee applicability Finished product
Curve code C
Number of modules 1
Breaking capacity Icn 4500 A at 240 V conforming to AS/NZS 60898-1
Network type AC
Network frequency 50/60 Hz
[uimp] rated impulse withstand voltage 4 kV
[ui] rated insulation voltage 440 V
Tightening torque 2 N.m
Pollution degree 3
Tropicalisation 2 conforming to IEC 60068-1
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 7.2 cm
Package 1 width 1.8 cm
Package 1 length 8.5 cm
Package 1 weight 0.108 kg
Unit type of package 2 BB1
Number of units in package 2 12
Package 2 height 8 cm
Package 2 width 9.2 cm
Package 2 length 23 cm
Package 2 weight 1.308 kg
Total lifecycle carbon footprint 8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3] 0.6439987243165634
Carbon footprint of the manufacturing phase [a1 to a3] 0.6 kg CO2 eq.
Carbon footprint of the distribution phase [a4] 0.03246533987211962
Carbon footprint of the distribution phase [a4] 0 kg CO2 eq.
Carbon footprint of the installation phase [a5] 0.019566231578731646
Carbon footprint of the installation phase [a5] 0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6] 7.188351974812143
Carbon footprint of the use phase [b2, b3, b4, b6] 7 kg CO2 eq.
Sustainable packaging No
Carbon footprint of the end-of-life phase [c1 to c4] 0.11589050438280855
Carbon footprint of the end-of-life phase [c1 to c4] 0.1 kg CO2 eq.
Pvc free Yes
Silicone-free  No
Energy efficiency optimized False
F-gas free N/A
Take-back No
Product contributes to saved and avoided emissions No
Removable battery N/A
Total lifecycle carbon footprint 8.000272774962365
Average percentage of recycled metal content 0 %
Packaging made with recycled cardboard Yes
Packaging without single use plastic No
Scip number f9865e0a-4be0-4110-b389-989cc9363cb0
Pvc free Yes
Silicone-free No
End of life manual availability N/A
Take-back No
Warranty (in months) 18
