Clipsal Resi MAX RCBO SLIM 1PN 16A C curve 30mA Type A 4500A | White | RCBE216/30S
$32.94
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details

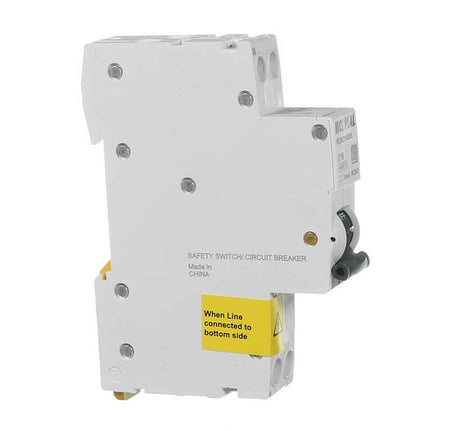

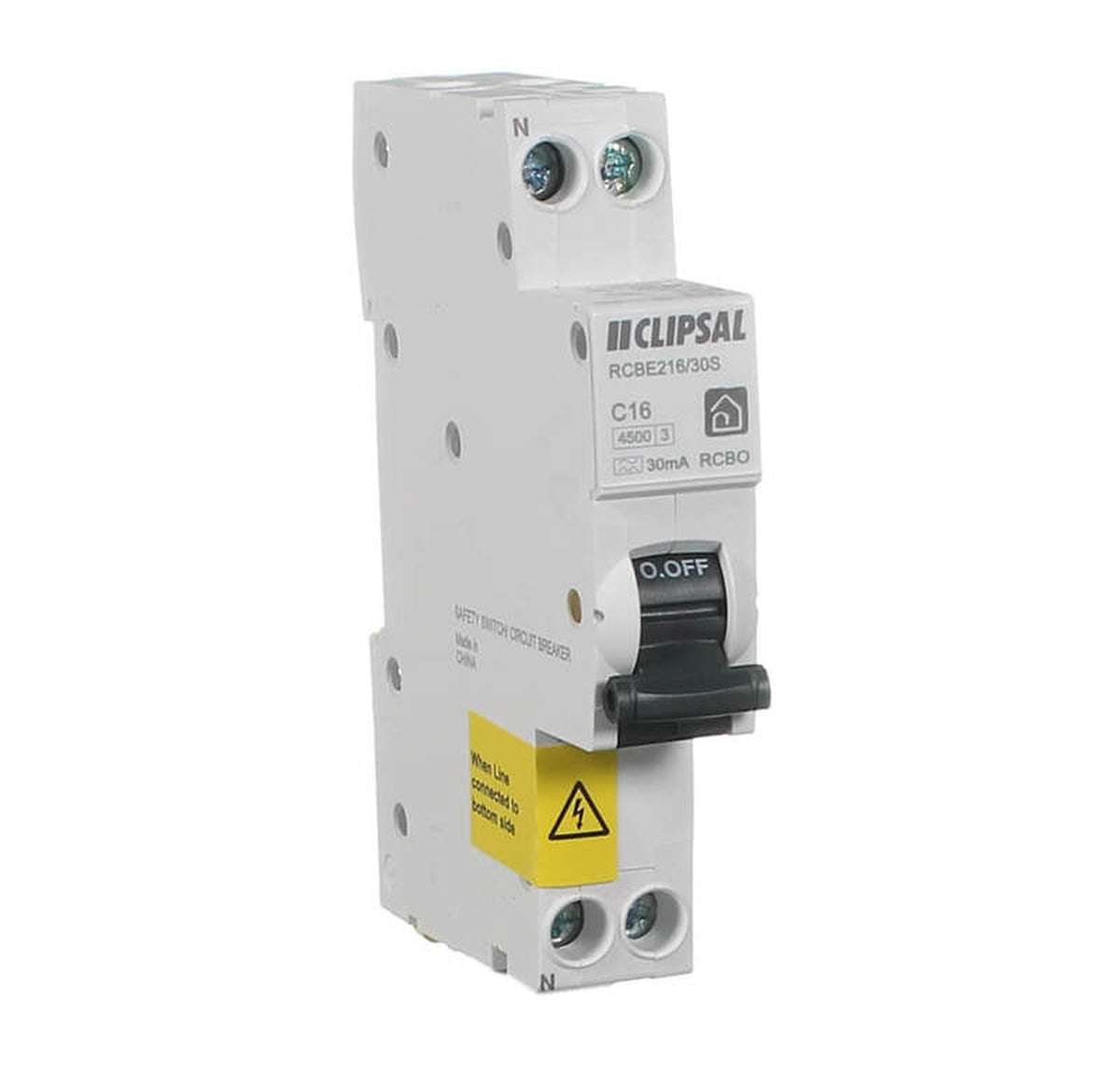

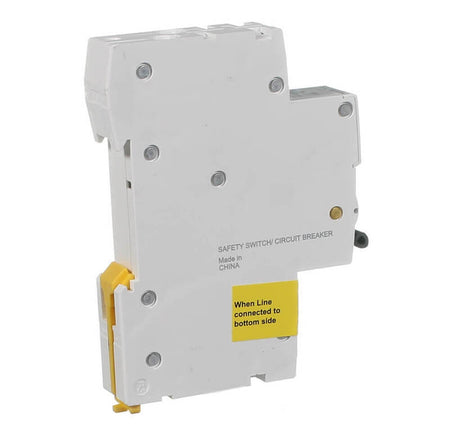

Clipsal Resi MAX RCBO SLIM 1PN 16A C curve 30mA Type A 4500A
The Clipsal RCBE216/30S combines residual-current and overcurrent protection in a slim RCBO. Its Type A, 30mA residual-current protection and C-curve characteristic bring both protection functions together in one device.
Key Features
- Combined residual-current, overload and short-circuit protection.
- Type A residual-current protection.
- 30mA residual-current sensitivity.
- Slim format for compatible switchboard installations.
- Rated current: 16.
Specifications
| Brand | Clipsal |
|---|---|
| Model | RCBE216/30S |
| Height (mm) | 92.5 |
| Width (mm) | 18 |
| Depth (mm) | 71.5 |
| Mounting | DIN Rail |
| Rated current | 16 |
| Voltage | 240V |
| Poles | 1P + N |
| Breaking capacity | 4.5kA |
| Tripping curve | C |
| SKU | 9311554758929 |
