Clipsal
Clipsal Resi MAX RCBO SLIM 1PN 6A C curve 30mA Type A 4500A | White | RCBE206/30S
$41.82
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details

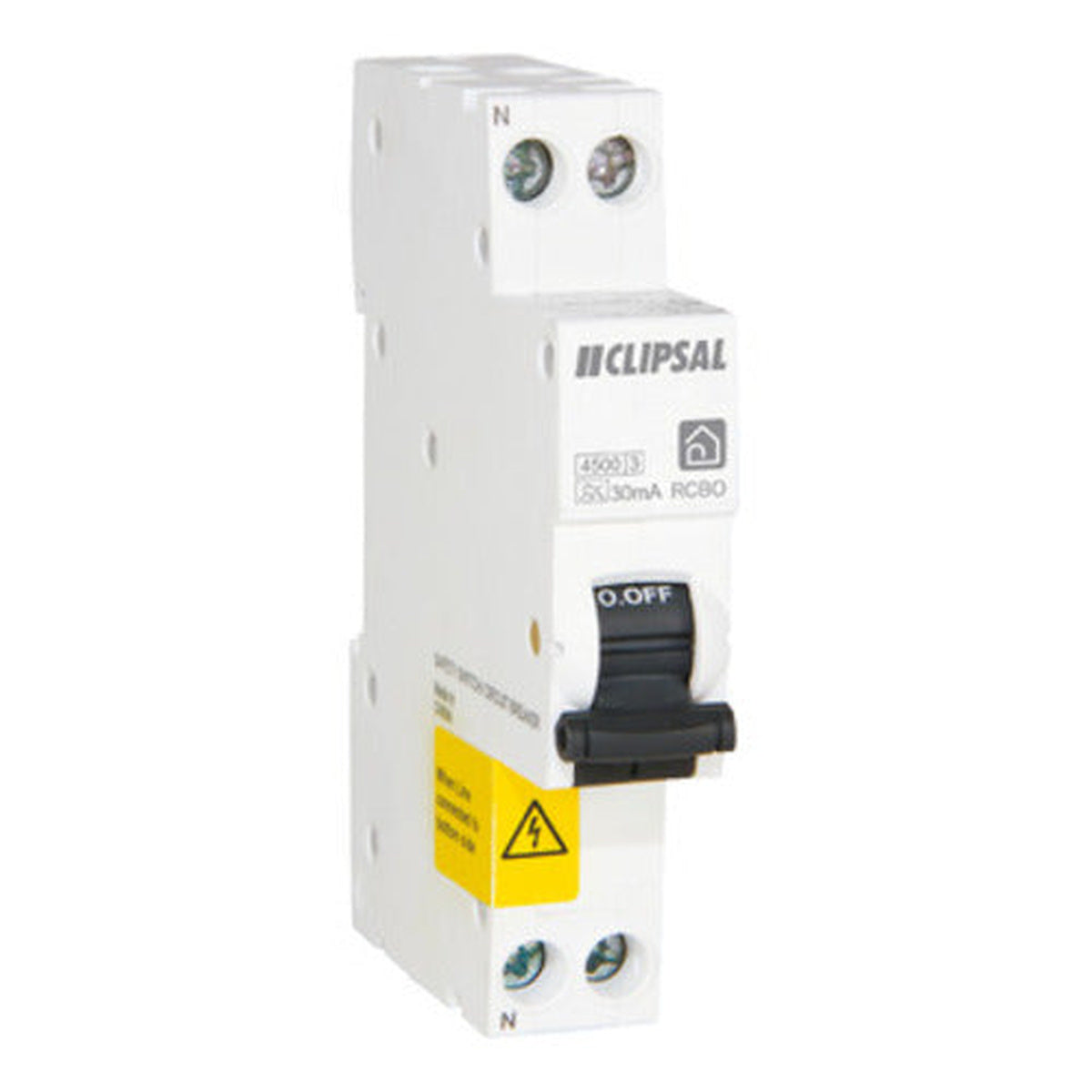

Clipsal Resi MAX RCBO SLIM 1PN 6A C curve 30mA Type A 4500A
The Clipsal RCBE206/30S combines residual-current and overcurrent protection in a slim RCBO. Its Type A, 30mA residual-current protection and C-curve characteristic bring both protection functions together in one device.
Key Features
- Combined residual-current, overload and short-circuit protection.
- Type A residual-current protection.
- 30mA residual-current sensitivity.
- Slim format for compatible switchboard installations.
- Rated current: 6 A.
Specifications
| Brand | Clipsal |
|---|---|
| Model | RCBE206/30S |
| Range | Resi MAX |
| Rated current | 6 A |
| Operational voltage | 240 V AC |
| Control type | ON/OFF locking with trip free mechanism |
| IP rating | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Poles | 1P + N |
| Number of modules | 1 |
| Number of protected poles | 1 |
| Network type | AC |
| Tripping curve | C |
| Residual current sensitivity | 30 mA |
| Residual current type | type A |
| Breaking capacity | 4.5 kA |
| Size | 92.5 x 18 x 71.5 mm conforming to DIN 43880 |
| SKU | 9311554758882 |
