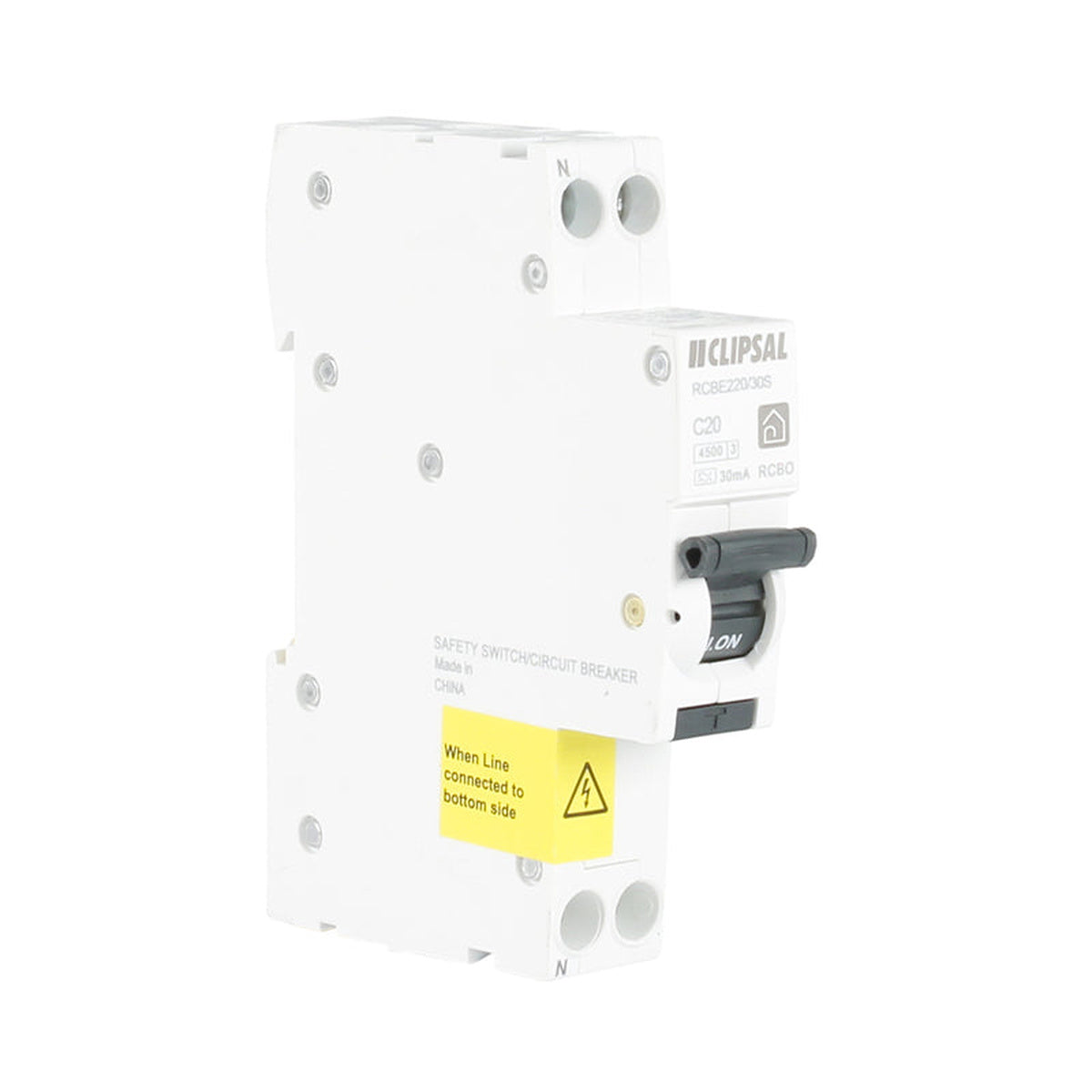

Clipsal Resi MAX Slim 20A 30mA Type A RCBO 1P+N 4.5kA | White/Black | RCBE220/30S
$30.24
Includes GST
In Stock
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details
The Clipsal Resi MAX Slim RCBO combines overcurrent and earth-leakage protection in one compact DIN rail module for residential switchboards.
- 20A rated current at 240V AC, with C-curve thermal-magnetic operation.
- 30mA Type A residual-current protection and 4.5kA breaking capacity.
- 1P+N configuration with one protected pole, switching of active and neutral, and neutral on the left.
- 18mm single-module width with clip-on DIN rail mounting.
- Supports top or bottom line connection and ON/OFF locking with a trip-free mechanism.
- IP20 protection, or IP40 within a modular enclosure.
- Dimensions: 92.5mm high × 18mm wide × 71.5mm deep.
- Complies with AS/NZS 61009.
Supplied as one RCBO. White body with black controls. Manufacturer part number: RCBE220/30S. Manufacturer warranty: 18 months.
