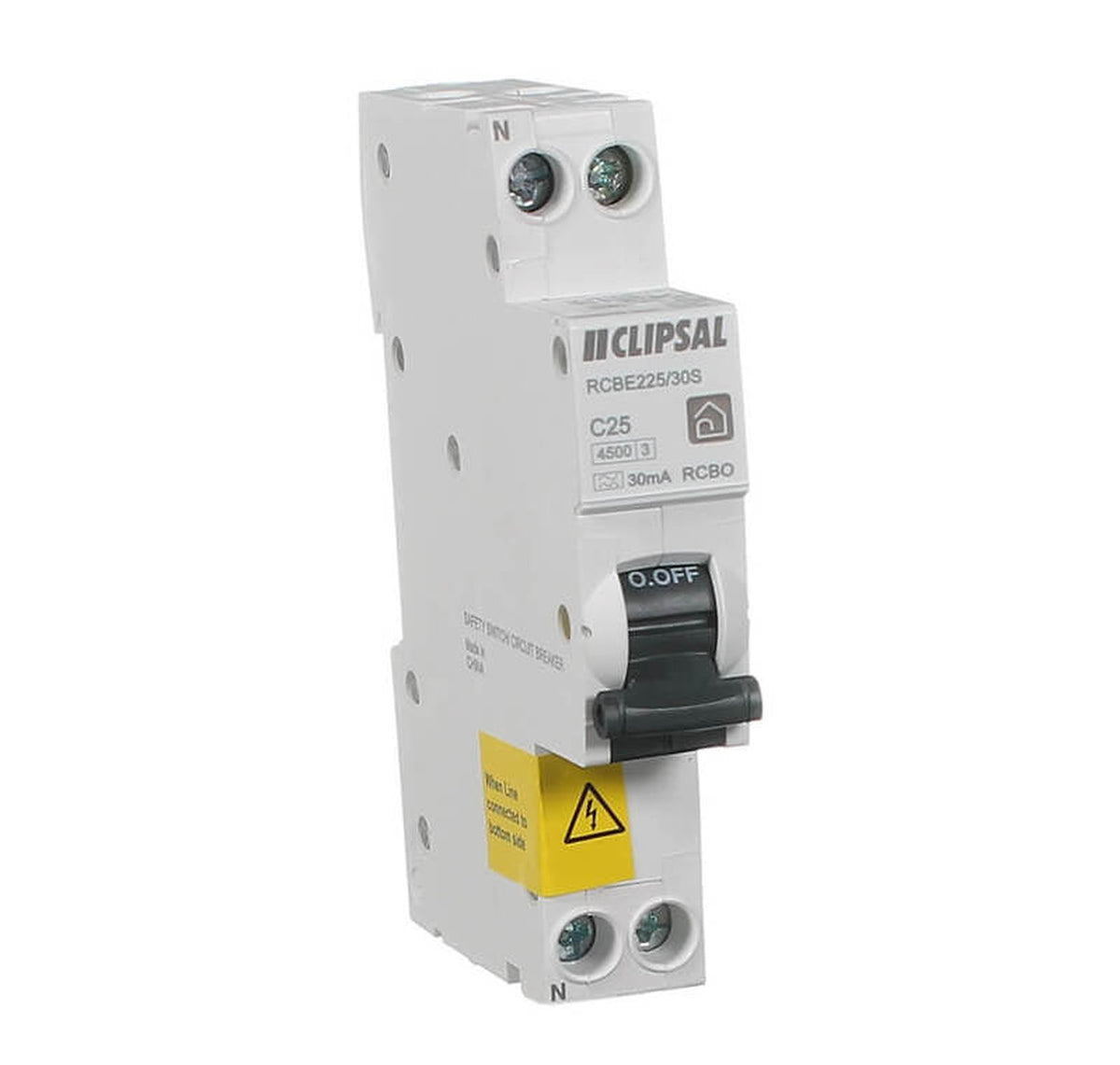

Clipsal Resi MAX Slim RCBO 25A 1P+N 30mA Type A | White | RCBE225/30S
Estimate delivery in your cart before checkout. Shipping information
Product Details
The Clipsal Resi MAX Slim RCBO combines residual-current and overcurrent protection in one compact device for residential switchboards. Rated at 25A with a C tripping curve, it provides 30mA Type A earth-leakage protection and a 4.5kA breaking capacity.

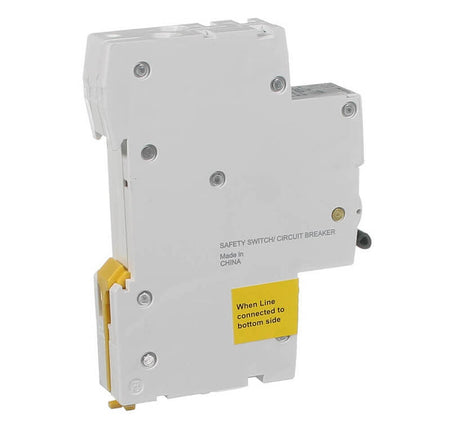

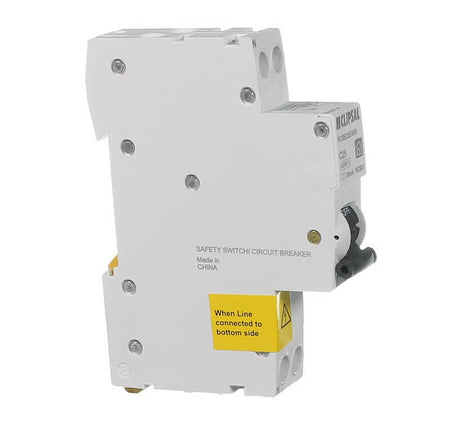

The 1P+N design switches active and neutral, with overcurrent protection on one pole. Its single-module, 18mm width helps conserve switchboard space. DIN rail mounting and a choice of top or bottom line connection provide installation flexibility, while the front test button and ON/OFF indication support routine operation and testing.
- Rated current: 25A
- Operational voltage: 240V AC
- Configuration: 1P+N, one protected pole
- Trip curve: C
- Earth-leakage protection: 30mA, Type A
- Breaking capacity: 4.5kA
- Mounting: DIN rail, one module
- Dimensions: 92.5mm high × 18mm wide × 71.5mm deep
- Protection rating: IP20; IP40 when fitted in a modular enclosure
- Standard: AS/NZS 61009
Supplied: 1 RCBO.
Manufacturer part number: RCBE225/30S.
Manufacturer's warranty: 18 months.
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
