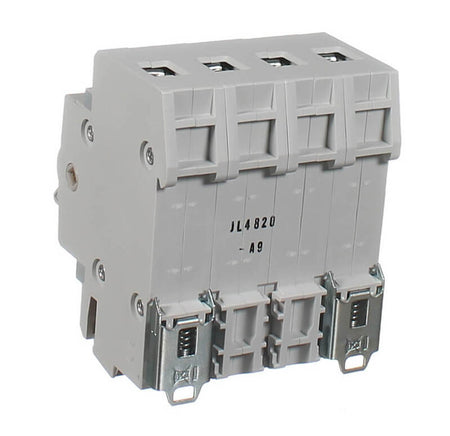

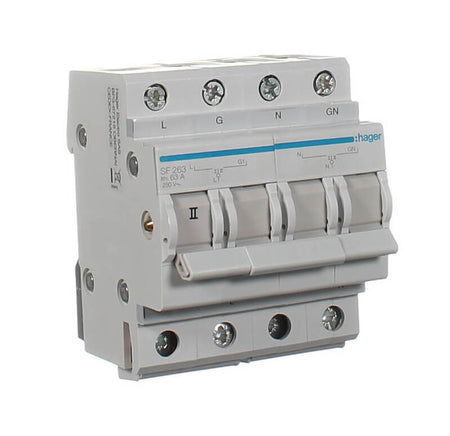

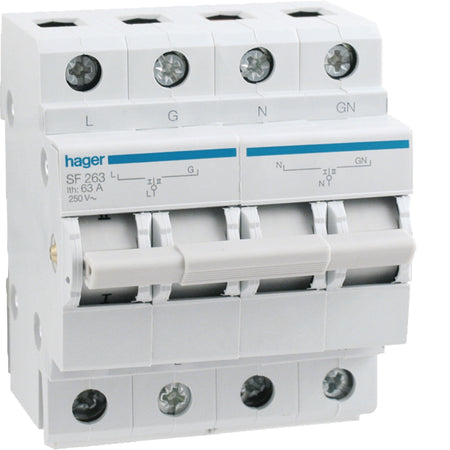

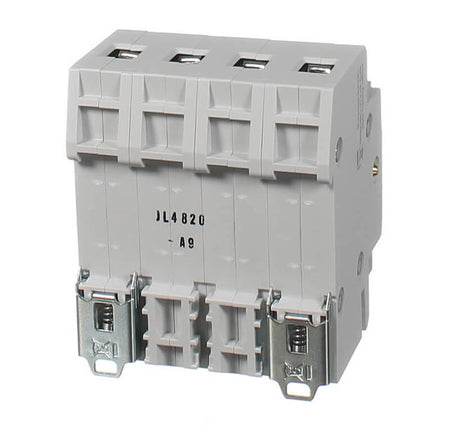

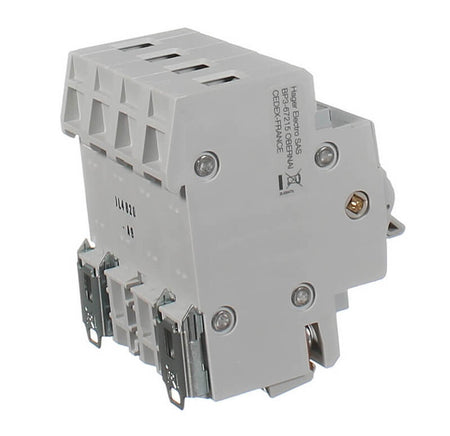

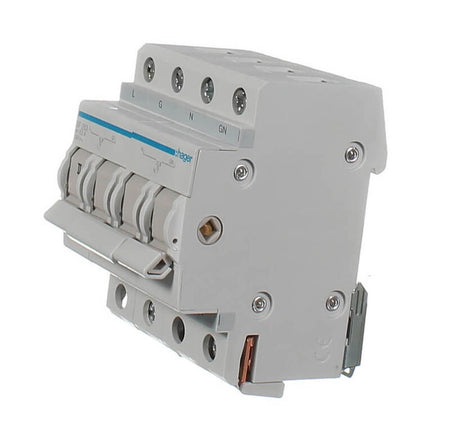

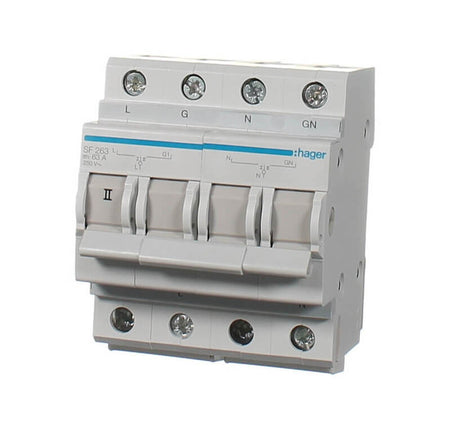

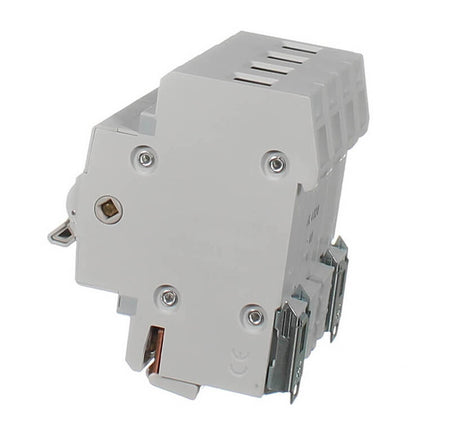

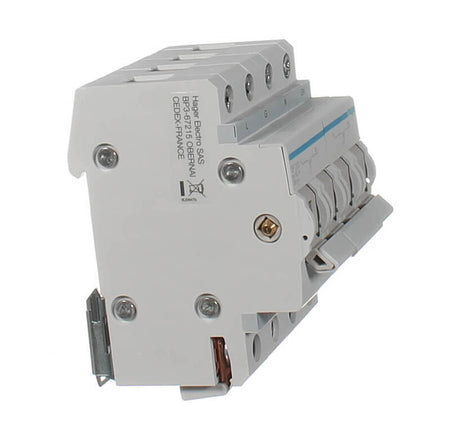

Hager Manual Changeover Switch 2 Pole 63A 230V DIN Rail Centre Off | White | SF263
Estimate delivery in your cart before checkout. Shipping information
Product Details

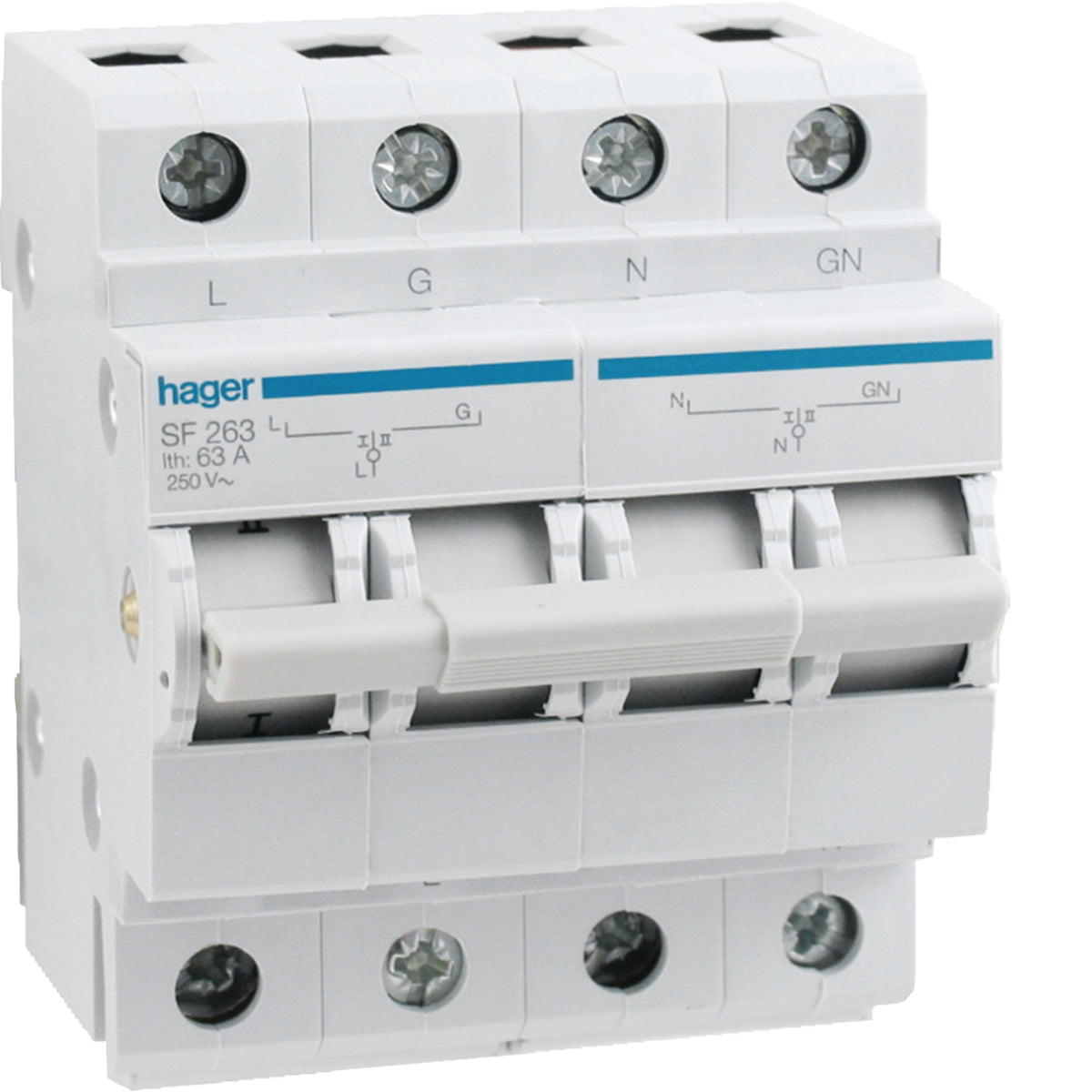

Hager 63A Two-Pole Manual Changeover Switch
The Hager SF263 provides manual selection between two power sources, such as mains and generator supplies. Its three-position I-0-II control includes a centre-off position between the two supply selections.
Rated at 63A and 230V AC, this white changeover switch mounts on DIN rail and occupies four module spaces. Screw terminals accommodate flexible conductors up to 16mm² or rigid conductors up to 25mm².
Key Features
- Two-pole manual changeover operation with centre-off control.
- Four-module design for compatible switchboards.
- IP20 protection rating.
- Rated for 100,000 mechanical operations and 5,000 AC21 electrical cycles.
Specifications
| Brand | Hager |
|---|---|
| MPN | SF263 |
| Barcode / SKU | 3250615561008 |
| Colour | White |
| Poles | 2 |
| Rated current | 63A |
| Rated operational voltage | 230V AC |
| Switching positions | I-0-II (centre off) |
| Mounting | DIN rail |
| Modular width | 4 modules |
| Dimensions | 90mm high × 71.5mm wide × 72mm deep |
| Protection rating | IP20 |
| Frequency | 50–60Hz |
| Conditional short-circuit current | 6kA with gl-gG fuses |
| Conductor capacity | 16mm² flexible / 25mm² rigid |
| Pack quantity | 1 |
| Packaged shipping weight | 365g |
Included
1 × Hager SF263 changeover switch.
This is a manual changeover device. Separate isolation and circuit protection must be provided as required by the installation design. Installation must follow Hager's instructions.
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
