Matchmaster 9 Element VHF/UHF Log Periodic TV Antenna with 4G/5G Filter | Silver | 01MM-SA100
Estimate delivery in your cart before checkout. Shipping information
Product Details
The Matchmaster 01MM-SA100 is a compact nine-element outdoor TV antenna for VHF channels 6–12 and UHF channels 28–46. Its hybrid log periodic/Yagi design combines reception across both bands with built-in filtering to reduce mobile-network interference.

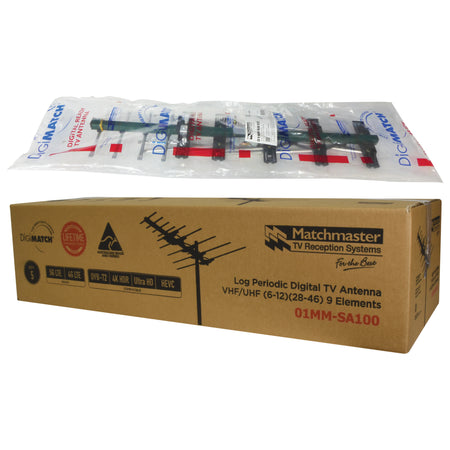

Made in Australia, the antenna arrives assembled with elements that snap out for installation. A mounting clamp positioned at the balance point helps prevent sagging, while 9.54mm aluminium VHF elements provide a sturdy construction for metropolitan applications.
Features

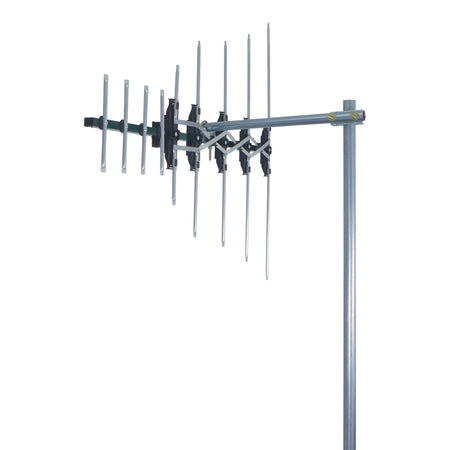

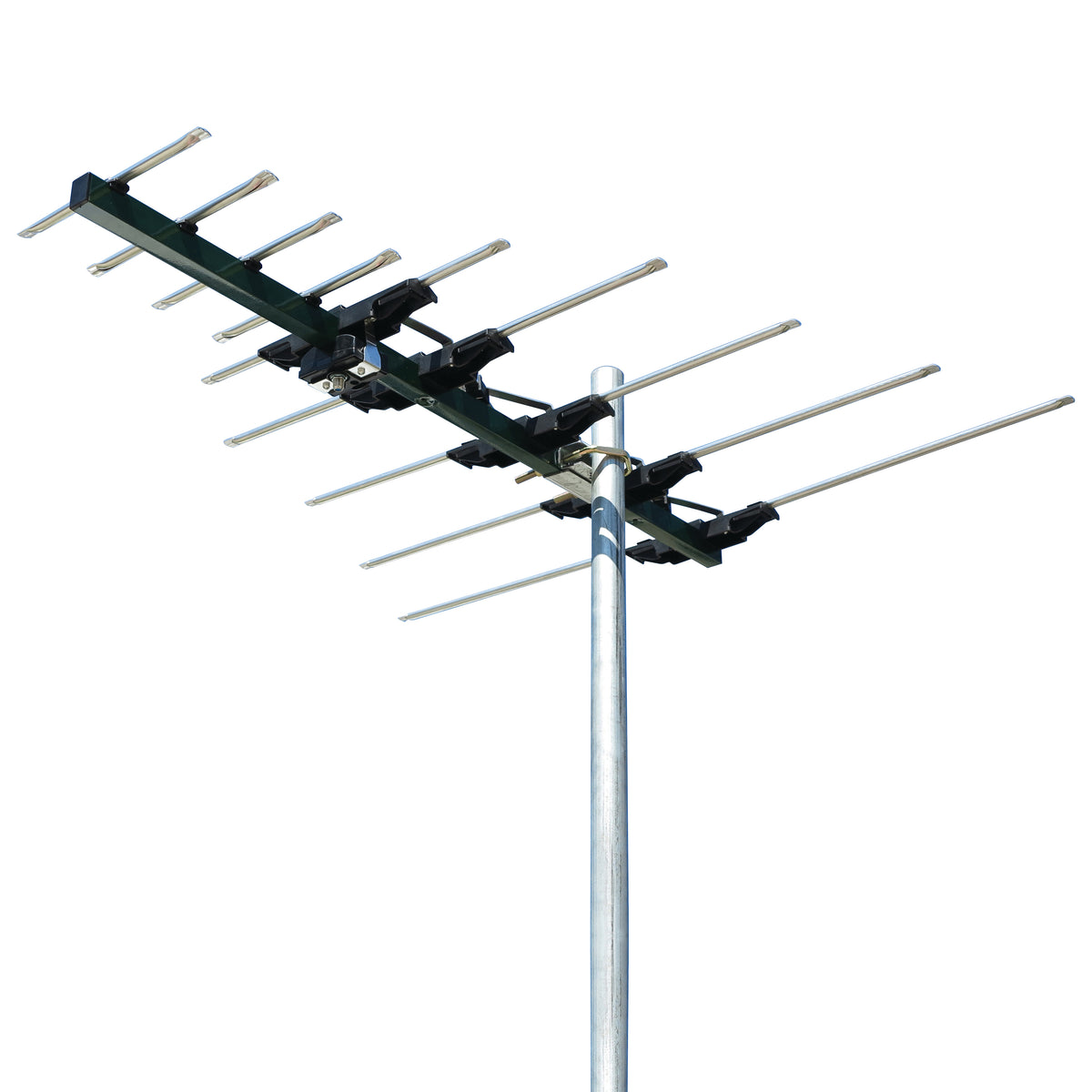

- Suitable for horizontal or vertical polarisation.
- 652MHz low-pass filter with more than 40dB attenuation at 750MHz.
- F-type PCB balun.
- Silver aluminium construction with black fittings.
Specifications
| Manufacturer part number | 01MM-SA100 |
|---|---|
| Barcode | 9322190021582 |
| Elements | 9 |
| Bands and channels | VHF Band 3: 6–12; UHF: 28–46 |
| Maximum gain | VHF: 5dB; UHF: 7dB |
| VSWR | <2:1 |
| Front-to-back ratio | VHF: 12dB; UHF: 14dB |
| Balun | F-type PCB |
| Country of manufacture | Australia |
| Quantity supplied | 1 antenna |
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
