Schneider Electric A9 Pro C120H 1 Pole 63A C Curve 10kA Circuit Breaker | White | A95HC163

The Schneider Electric A9 Pro C120H A95HC163 is a single-pole 63A miniature circuit breaker for low-voltage AC distribution. Its thermal-magnetic C-curve trip provides overload and short-circuit protection, with a rated short-circuit breaking capacity of 10kA at 230V AC.

Features

• Single-pole design with 63A rated current at 30°C.
• C-curve magnetic tripping characteristic: 5–10 times rated current.
• DIN rail mounting with a locking clip.
• Contact position indication and ON/OFF operating handle.
• Suitable for isolation.

Specifications

• Brand: Schneider Electric
• Range: Acti9 Pro / A9 Pro C120H
• MPN / model: A95HC163
• Poles: 1P
• Rated current: 63A
• Trip curve: C
• Rated operational voltage: 230V AC
• Frequency: 50/60Hz
• Breaking capacity (Icn): 10kA at 230V AC to EN/IEC 60898-1 and GB/T 10963.1
• Insulation voltage (Ui): 500V AC
• Impulse withstand voltage (Uimp): 6kV
• Dimensions: 86mm high × 27mm wide × 73mm deep
• Net weight: 205g
• Colour: White body with black operating toggle
• Operating temperature: −40°C to +70°C
• Mechanical endurance: 20,000 operations
• Electrical endurance: 10,000 operations

This MCB does not provide residual-current or earth-leakage protection.

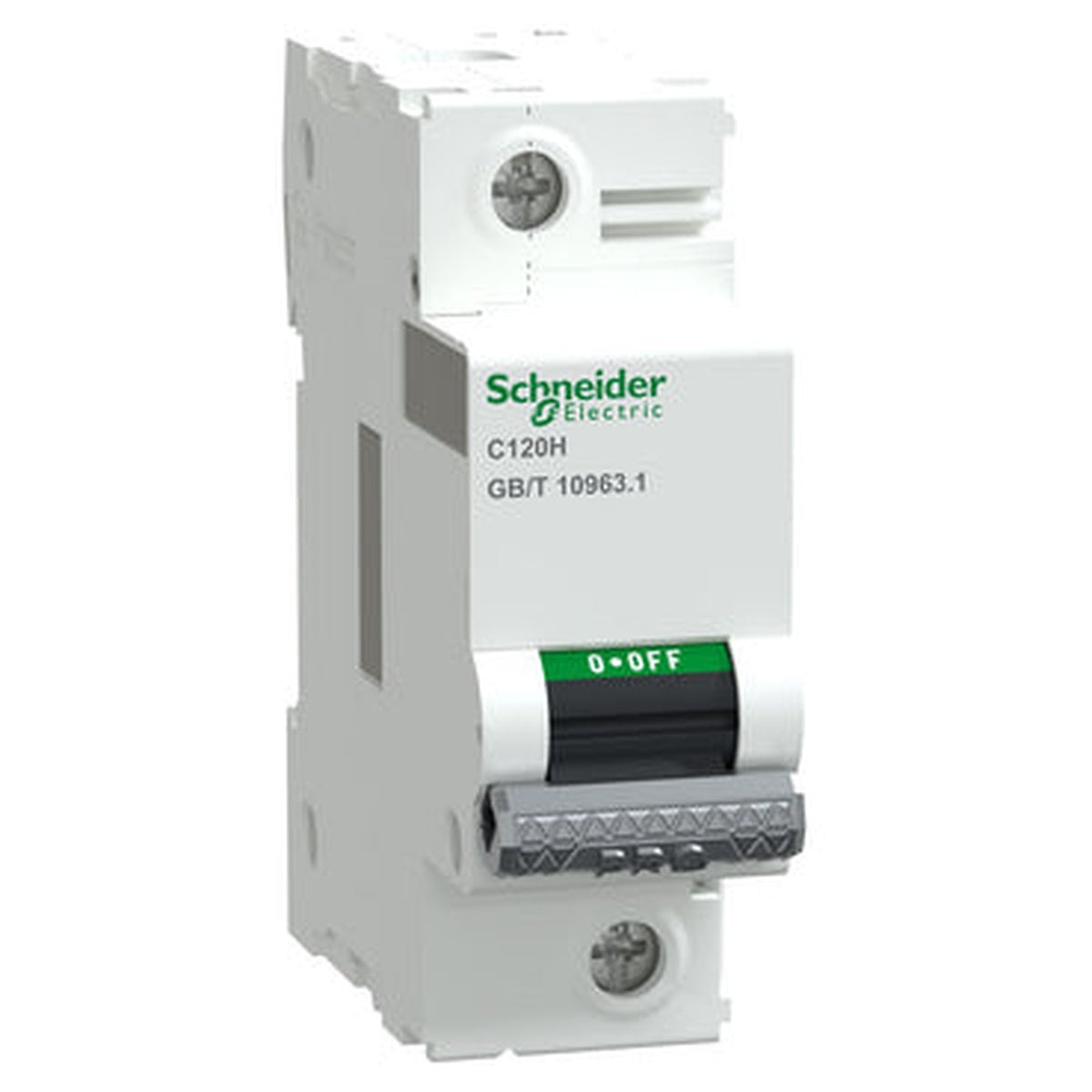

Manufacturer series image supplied by Schneider Electric for this product reference.
