Schneider Electric

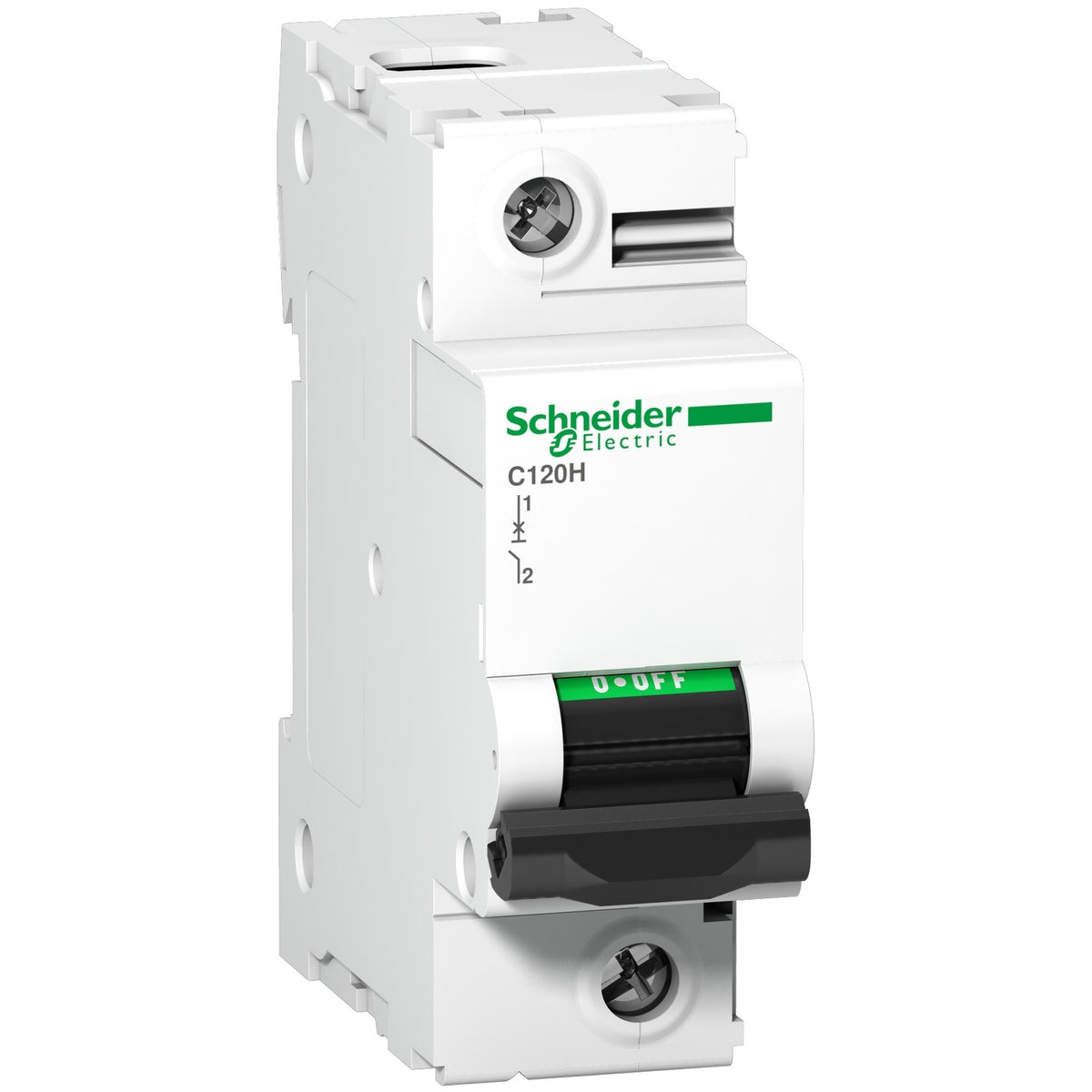

Schneider Electric Acti9 C120H 1 Pole 63A B Curve 15kA Circuit Breaker | White | A9N18401
$54.95
Includes GST
Currently Unavailable
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details
The Schneider Electric A9N18401 Acti9 C120H miniature circuit breaker provides thermal-magnetic protection against overloads and short circuits. This single-pole model has a 63A current rating and B tripping curve, with clip-on mounting for a 35mm DIN rail.
Features
- 1 pole with 1 protected pole
- 63A rated current at 30°C
- B curve with magnetic tripping at 3–5 times rated current
- 15,000A Icn at 230/400V AC to EN/IEC 60898-1
- 15kA Icu at 220–240V AC to EN/IEC 60947-2
- Toggle operation with contact-position and ON/OFF indication
- IP20 terminal protection
- White housing (RAL 9003)
Specifications
- Model / manufacturer part number: A9N18401
- Range: Acti9 C120H
- Frequency: 50/60Hz
- Dimensions: 27mm wide × 81mm high × 73mm deep
- Net weight: 0.205kg
- Operating temperature: -30°C to +60°C
- Manufacturer warranty: 18 months
- EAN: 3606480379727
Supplied as one circuit breaker. This MCB does not provide earth-leakage protection.
