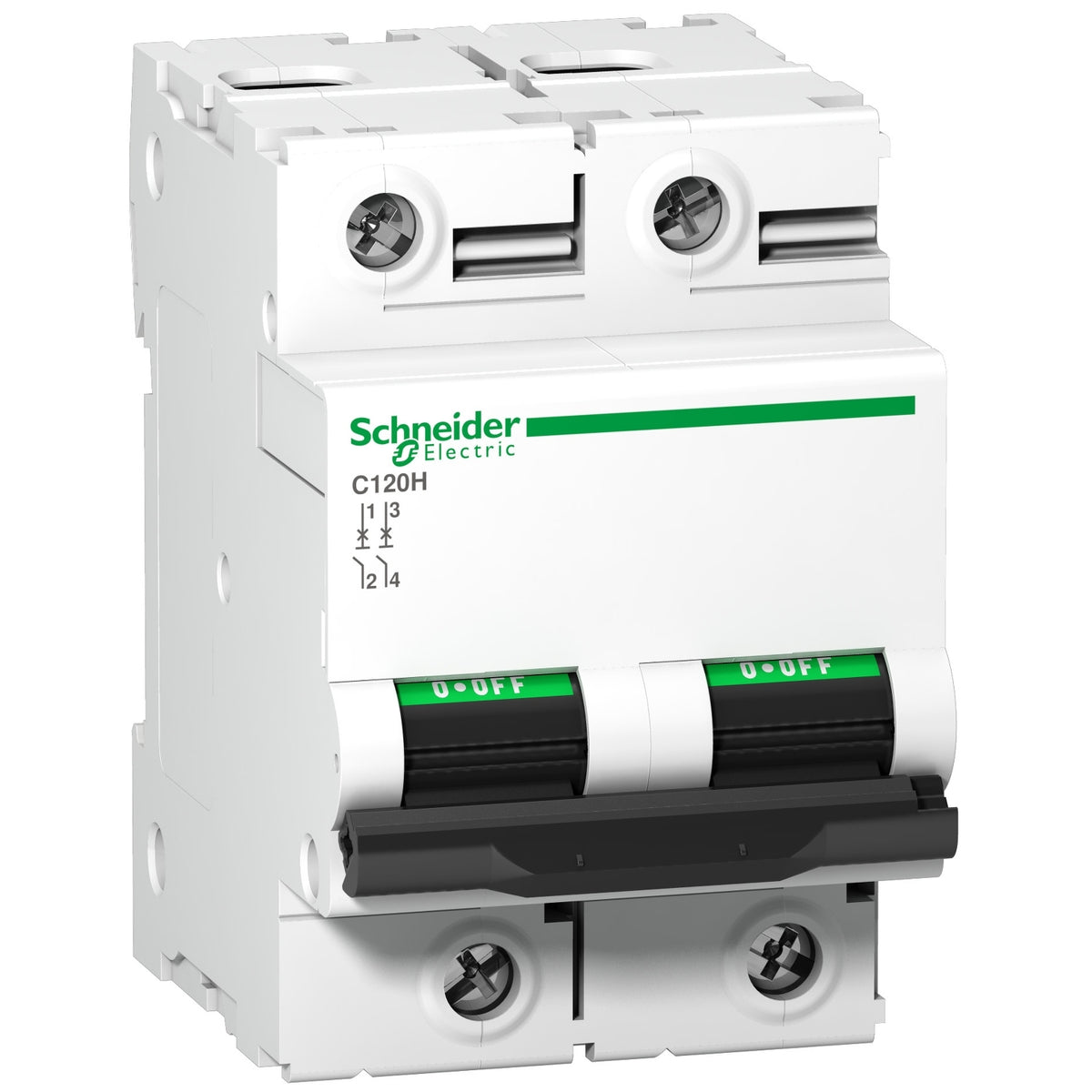

Schneider Electric Acti9 C120H 2 Pole 63A B Curve 15kA Circuit Breaker | White | A9N18412
$129.95
Includes GST
Currently Unavailable
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details
The Schneider Electric A9N18412 Acti9 C120H miniature circuit breaker provides thermal-magnetic protection against overloads and short circuits. This double-pole model protects both poles and combines a 63A rating with a B tripping curve.
Features
- 2 poles, both protected
- 63A rated current at 30°C
- B curve: magnetic tripping at 3–5 times rated current
- 15,000A Icn at 400V AC to EN/IEC 60898-1
- 15kA Icu at 380–415V AC to EN/IEC 60947-2
- 30kA Icu at 220–240V AC to EN/IEC 60947-2
- Clip-on mounting for 35mm DIN rail
- Toggle control and contact-position indication
- White housing (RAL 9003), with IP20 terminal protection
Specifications
- MPN / model: A9N18412
- Range: Acti9 C120H
- Frequency: 50/60Hz
- Dimensions: 54mm wide × 81mm high × 73mm deep
- Net weight: 0.41kg
- Operating temperature: -30°C to +60°C
- Manufacturer warranty: 18 months
- EAN: 3606480379833
Supplied as one circuit breaker. This MCB does not provide earth-leakage protection.
