Schneider Electric
Schneider Electric Acti9 Pro iC65N 2 Pole 63A C Curve 6kA Circuit Breaker | White | A91NC263
$49.05
Includes GST
Currently Unavailable
Estimate delivery in your cart before checkout. Shipping information
Quality Products
Trusted electrical supplies
30 Day Returns
Shop with confidence
Secure Checkout
Safe & protected payments
Product Details
The Schneider Electric Acti9 Pro iC65N is a two-pole 63A miniature circuit breaker with a C-curve thermal-magnetic trip. It provides overload and short-circuit protection for AC low-voltage distribution circuits.
Key features
- 63A rated current at 30°C
- Two poles (2P), C-curve trip characteristic
- 6kA breaking capacity at 400V AC, 50/60Hz
- DIN rail mounting with locking clip
- Contact position and on/off indication
- Suitable for isolation
Specifications
- Manufacturer part number: A91NC263
- Range: Acti9 Pro iC65N
- Rated operating voltage: 400V AC
- Rated insulation voltage: 500V AC
- Impulse withstand voltage: 4kV
- Magnetic trip threshold: 5–10 times rated current
- Dimensions: 94mm high × 35.4mm wide × 78.5mm deep
- Net weight: 250g
- Body protection rating: IP20
- Operating temperature: −40°C to +70°C
- Standards listed by the manufacturer: IEC 60898-1 and GB/T 10963.1
Protection type: This MCB does not provide residual-current or earth-leakage protection.

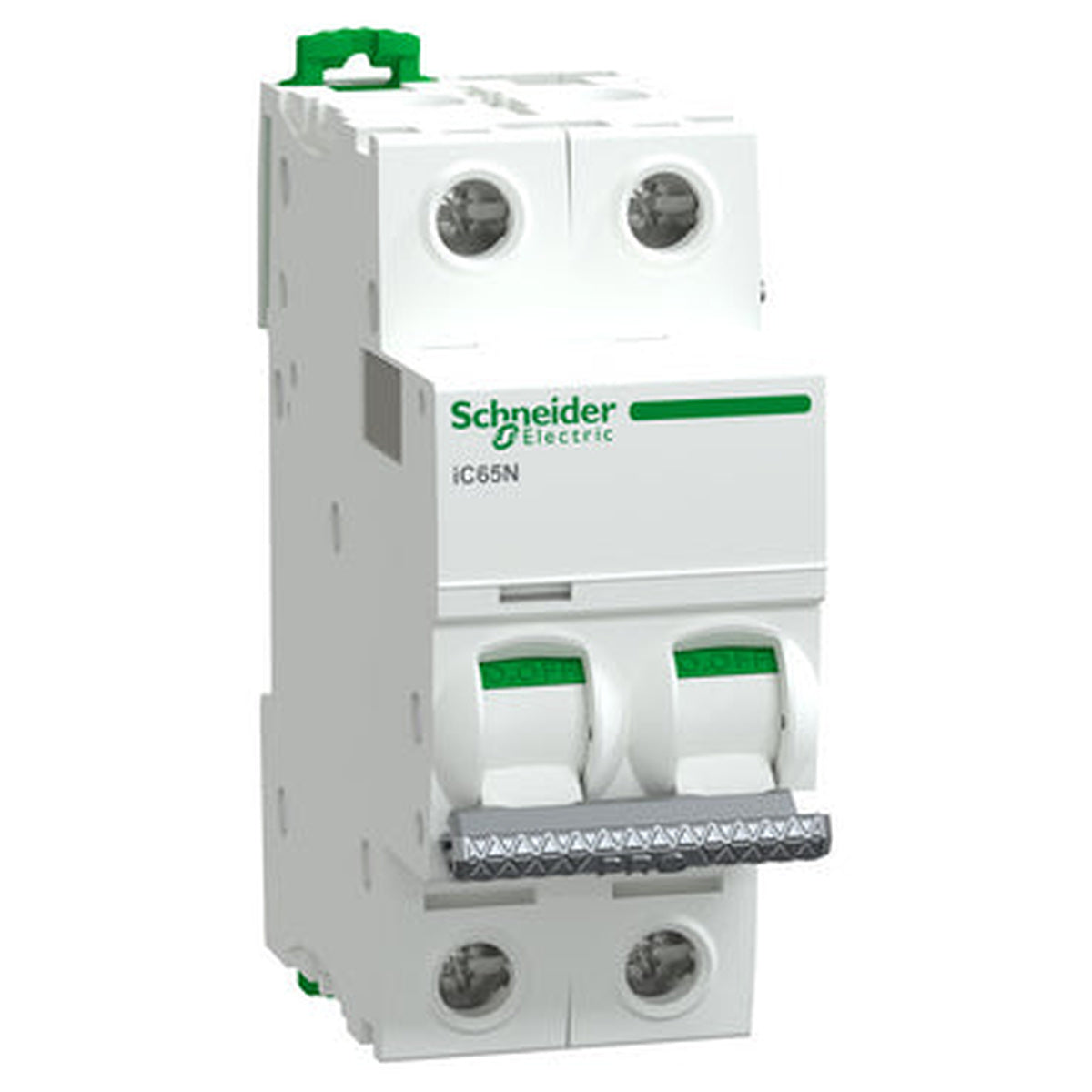

Image: Manufacturer representative image of the iC65N two-pole range.
