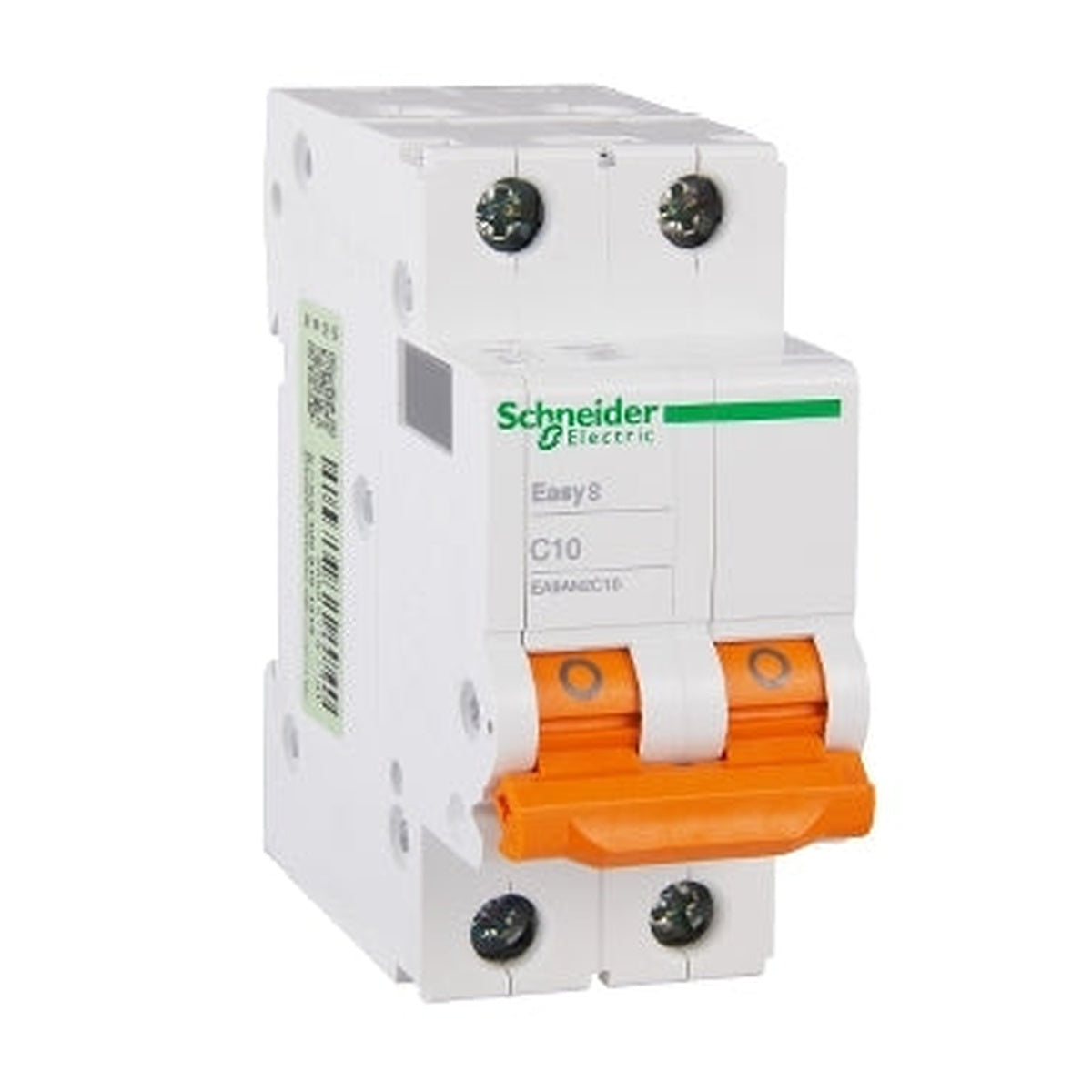

Schneider Electric Easy9 2 Pole 10A C Curve 6kA Circuit Breaker | Silver White | EA9AN2C10

The Schneider Electric Easy9 EA9AN2C10 is a two-pole 10A miniature circuit breaker for AC distribution protection. Its thermal-magnetic C-curve trip provides overload and short-circuit protection, with a rated short-circuit breaking capacity of 6kA at 230/400V AC, 50Hz.

Features

• Two protected poles with 10A rated current at 30°C.
• C-curve magnetic tripping characteristic: 5–10 times rated current.
• DIN rail mounting with a locking clip.
• Contact position indication and ON/OFF operating handles.
• Suitable for isolation.

Specifications

• Brand: Schneider Electric
• Range: Easy9
• Product series: EA9AN
• MPN / model: EA9AN2C10
• EAN / barcode: 6956025101731
• Poles: 2P, with 2 protected poles
• Rated current: 10A
• Trip curve: C
• Rated operational voltage: 230/400V AC
• Frequency: 50Hz
• Breaking capacity (Icn): 6kA at 230/400V AC, 50Hz
• Service breaking capacity (Ics): 6kA, 100% of Icn
• Impulse withstand voltage (Uimp): 6kV
• Current-limiting class: 3
• Dimensions: 81mm high × 35.4mm wide × 70mm deep
• Net weight: 220g
• Colour: Silver-white body (Pantone 7541C), orange handles (RAL 2003) and light-grey locking clip (RAL 7035)
• Terminal capacity: Up to 25mm²
• Terminal tightening torque: 2.5Nm
• Operating temperature: −30°C to +70°C
• Mechanical endurance: 20,000 operations
• Electrical endurance: 10,000 operations
• Standards: IEC 60898-1 and GB 10963.1

This MCB provides overload and short-circuit protection. It does not provide residual-current or earth-leakage protection.
