Schneider Electric TeSys D 9A 3 Pole Contactor 240V AC Coil | Grey | LC1D09U7
Estimate delivery in your cart before checkout. Shipping information
Product Details

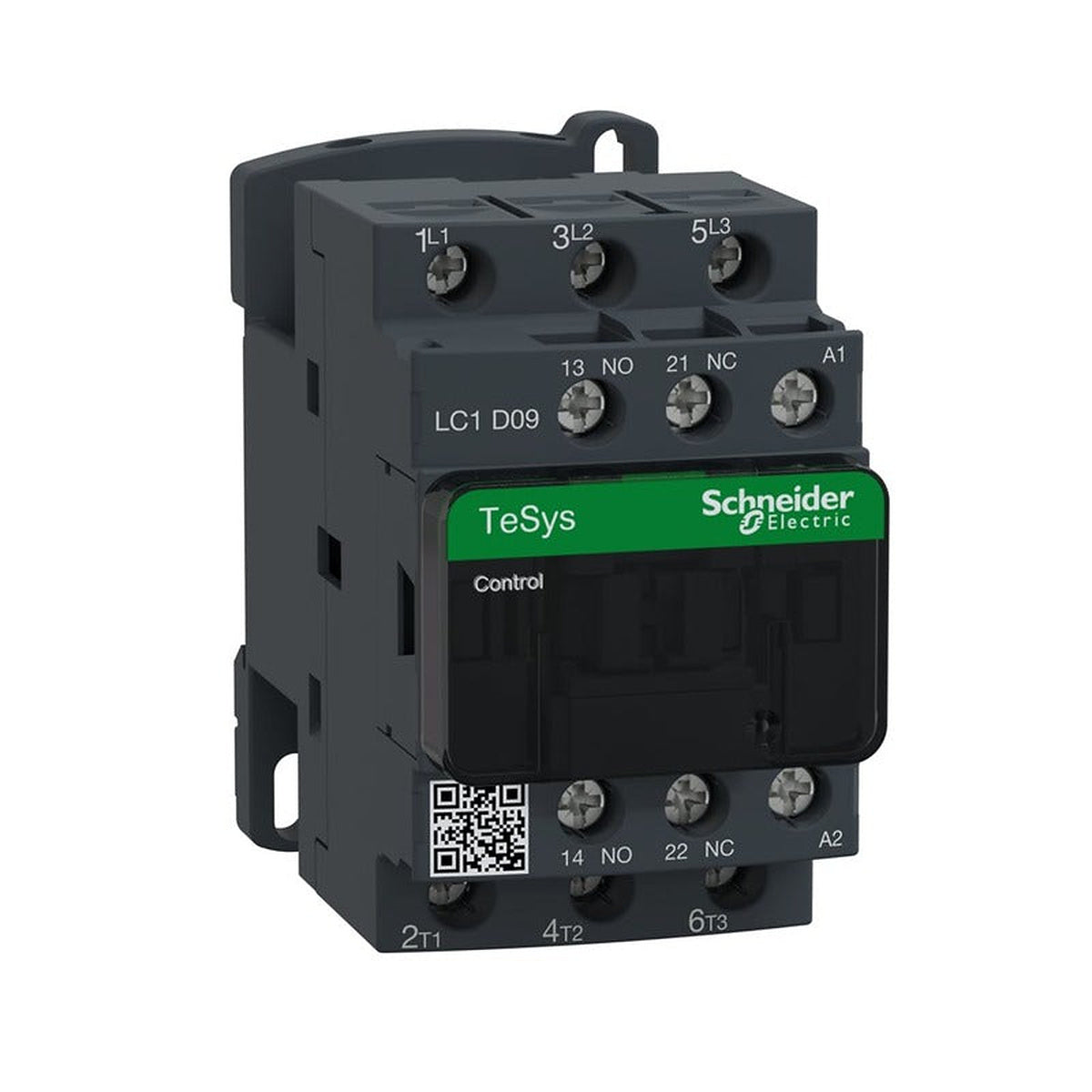

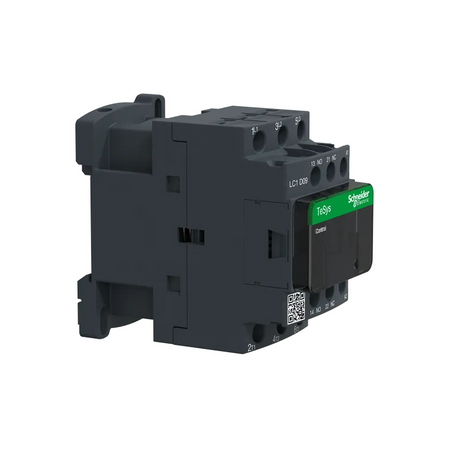

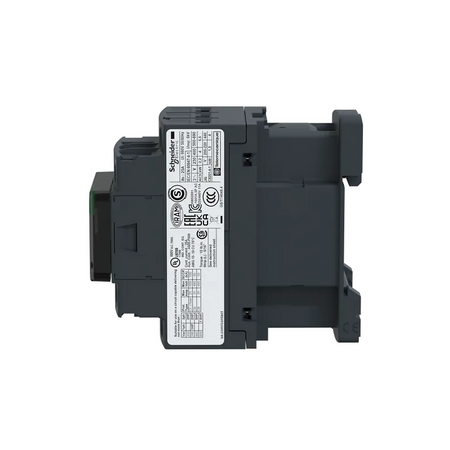

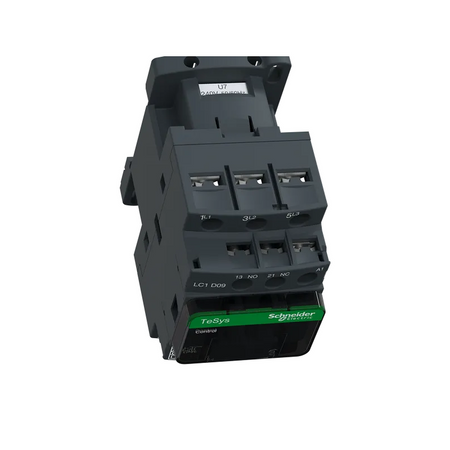

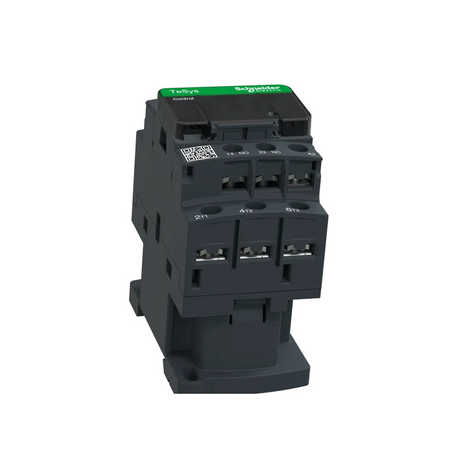

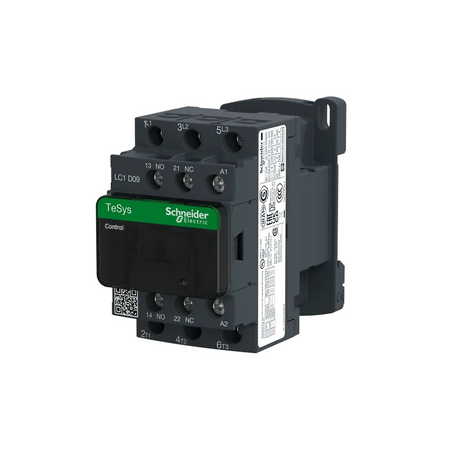

The Schneider Electric TeSys D LC1D09U7 contactor provides three-pole switching for motor control and resistive load applications. It combines three normally open main contacts with a 240V AC, 50/60Hz coil and built-in auxiliary contacts for control and signalling circuits.

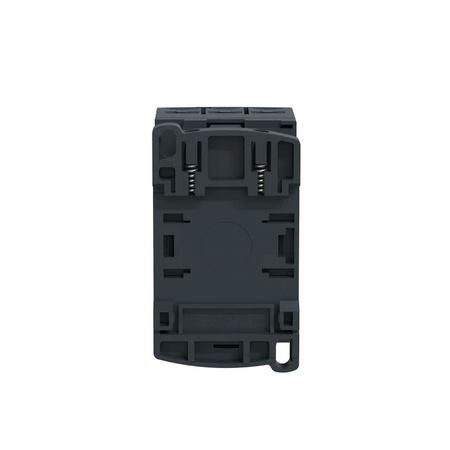

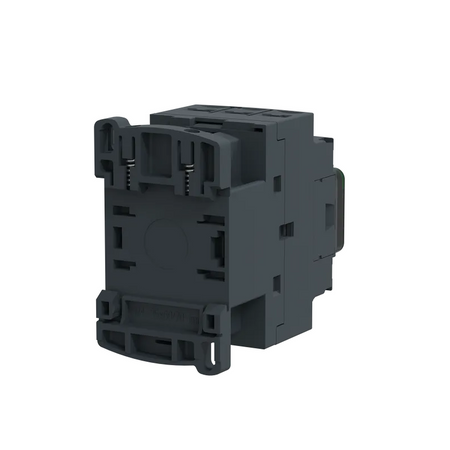

Rated at 9A for AC-3 and AC-3e applications up to 440V, it supports motors up to 4kW at 380–440V. Screw clamp terminals and a compact 45mm width suit control panels, with DIN rail mounting or screw fixing to a plate.
- Main contacts: 3 poles, 3 normally open.
- Auxiliary contacts: 1 normally open and 1 normally closed.
- Coil voltage: 240V AC, 50/60Hz.
- Operational current: 9A AC-3/AC-3e or 25A AC-1 at up to 440V.
- IP20 protection at the front face.
- Dimensions: 77mm high × 45mm wide × 86mm deep.
- Net weight: 0.32kg.
Manufacturer part number: LC1D09U7
Colour: Grey
Includes: 1 contactor.
Electrical products must be installed and used in accordance with applicable Australian laws, standards and manufacturer instructions. Use a licensed electrician where required.
